Home >> Oldsmobile >> 1997 >> Regency >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Connector Terminal Identification >> Computer Command Ride Control Module

Computer Command Ride Control Module

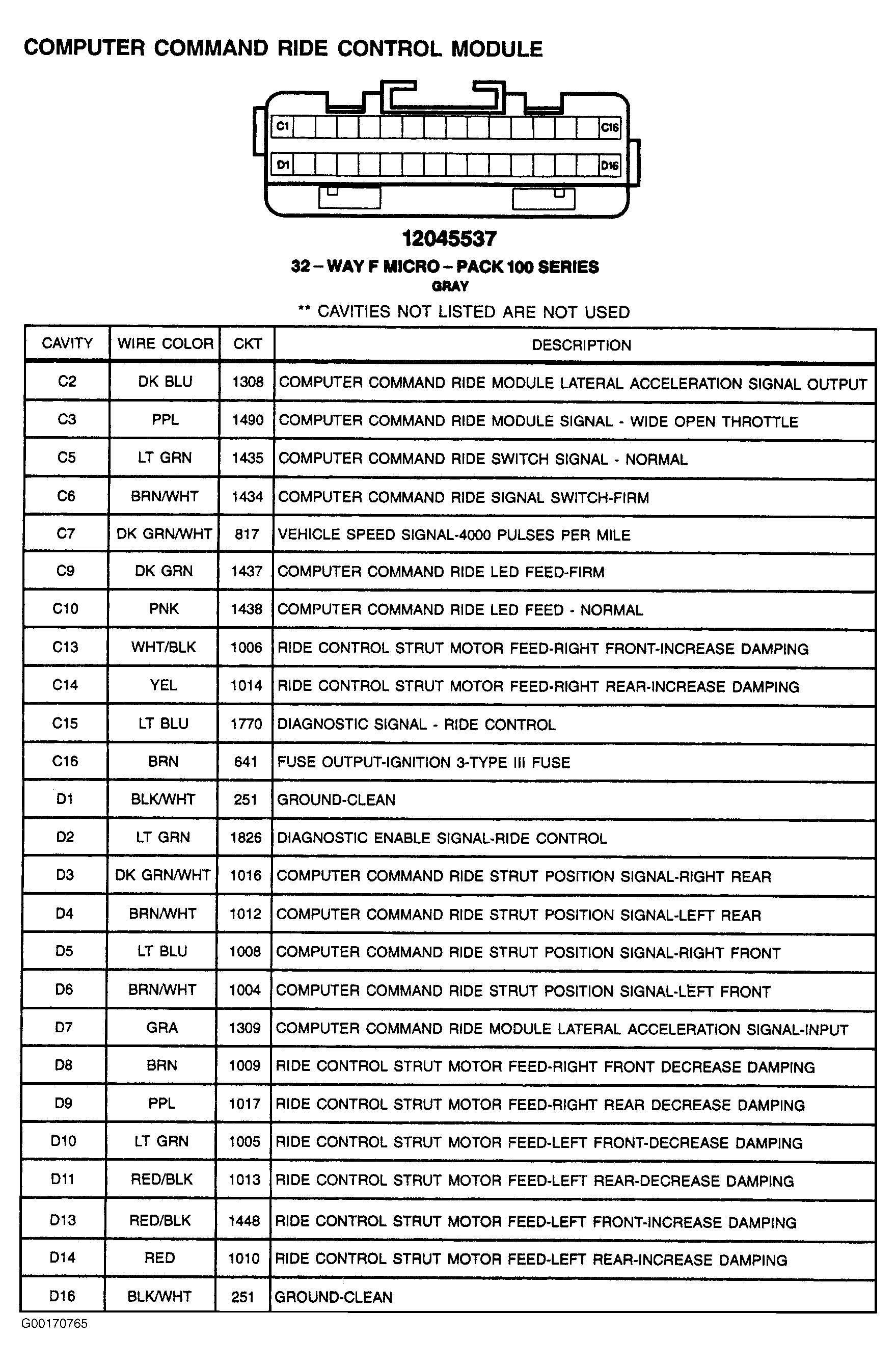

Fig 1: Computer Command Ride Control Module - 32-Pin Connector (Gray)

G00170765

Courtesy of GENERAL MOTORS CORP.
