Pcm Connectors (Cutlass)

Fig 1: PCM 80-Pin Connector - Terminal Identification
G00169938Courtesy of GENERAL MOTORS CORP.

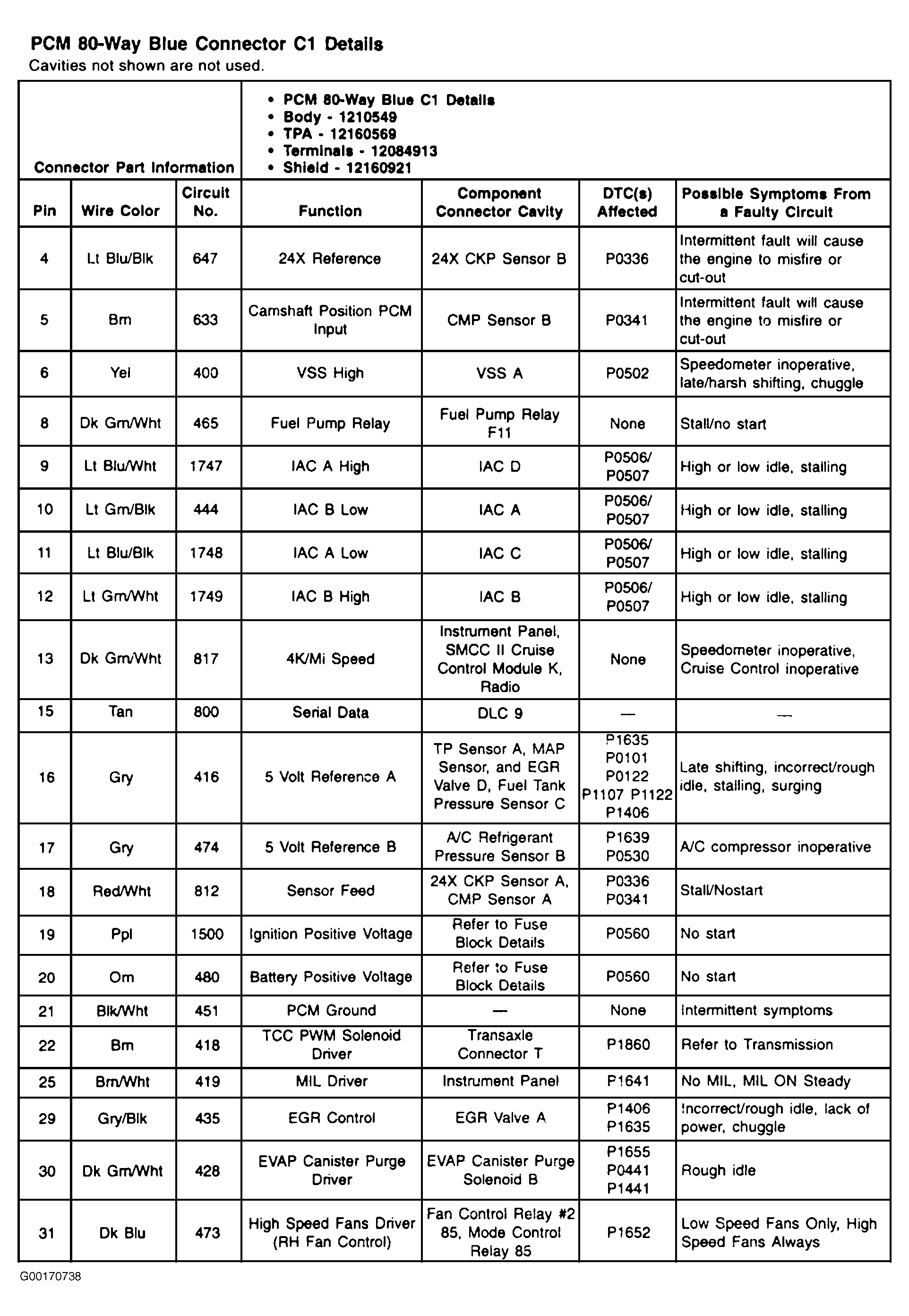

Fig 2: PCM 80-Pin Connector C1 (Blue) - Legend (Cutlass) - (1 Of 2)
G00170738Courtesy of GENERAL MOTORS CORP.

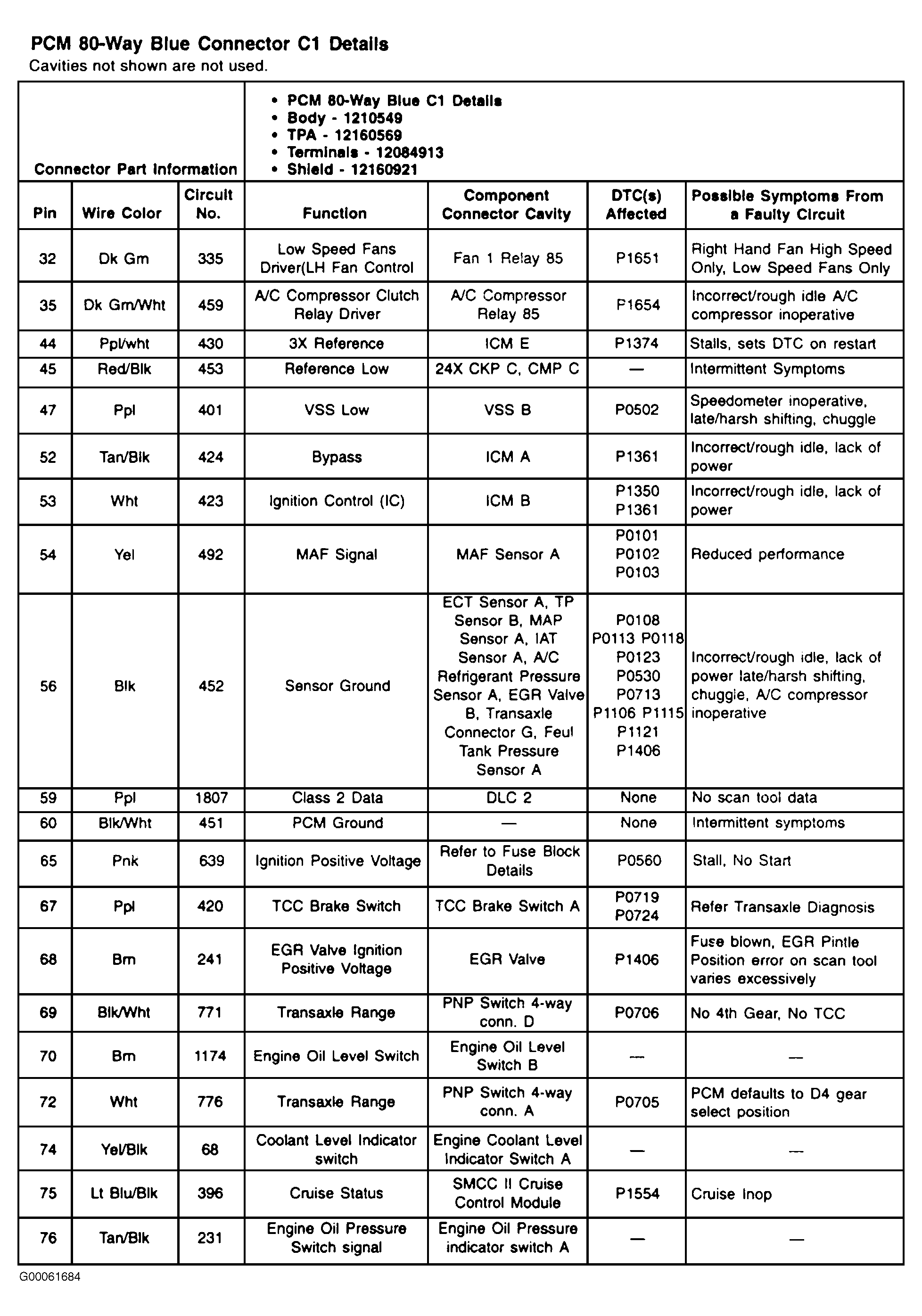

Fig 3: PCM 80-Pin Connector C1 (Blue) - Legend (Cutlass) - (2 Of 2)
G00061684Courtesy of GENERAL MOTORS CORP.

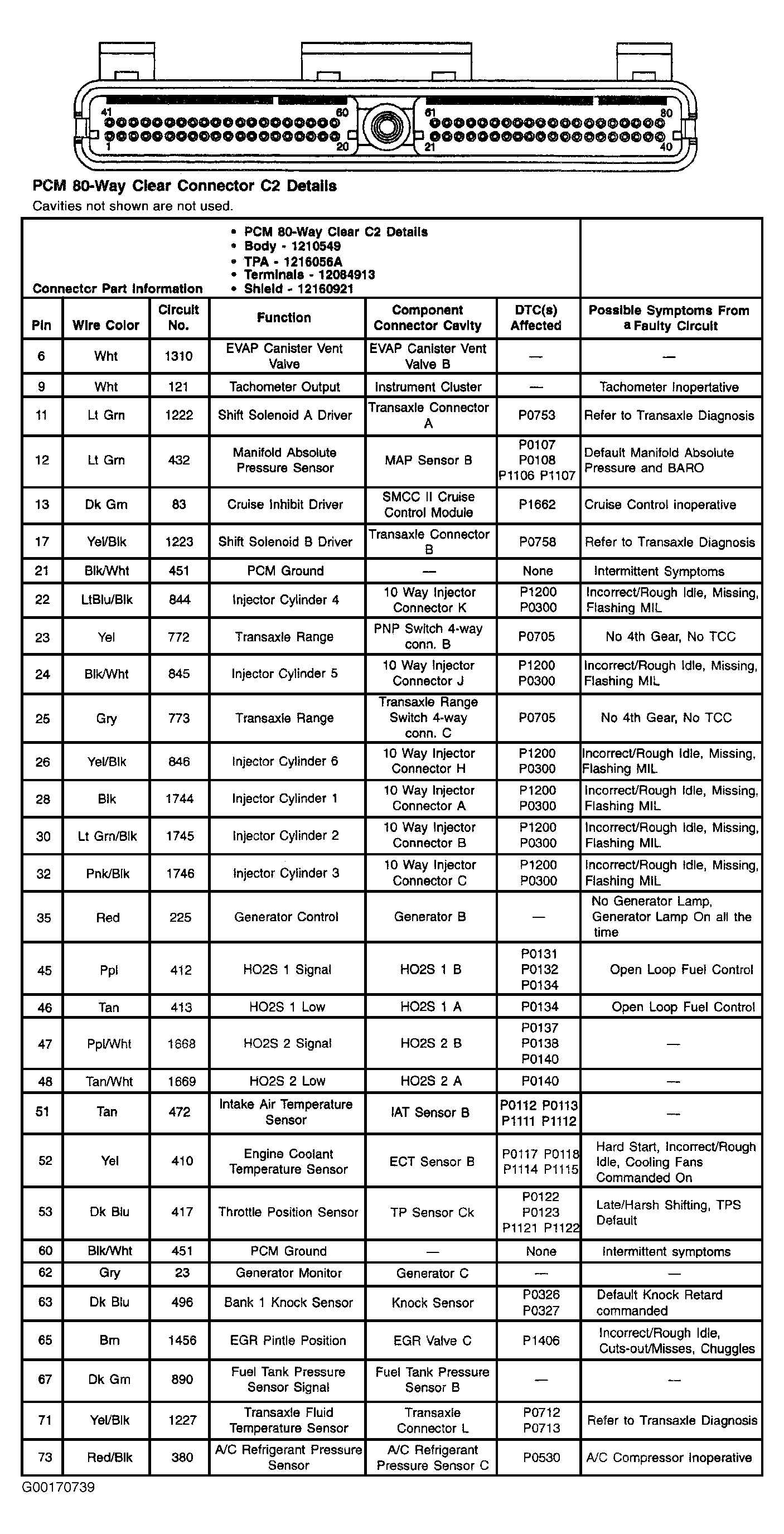

Fig 4: PCM 80-Pin Connector C2 (Clear) - Legend (Cutlass)
G00170739Courtesy of GENERAL MOTORS CORP.
