Connector Terminal Identification
>>
Transaxle Range Switch
>>
Cutlass & MALIBU
>>
Transaxle Range Switch C2
Transaxle Range Switch C2

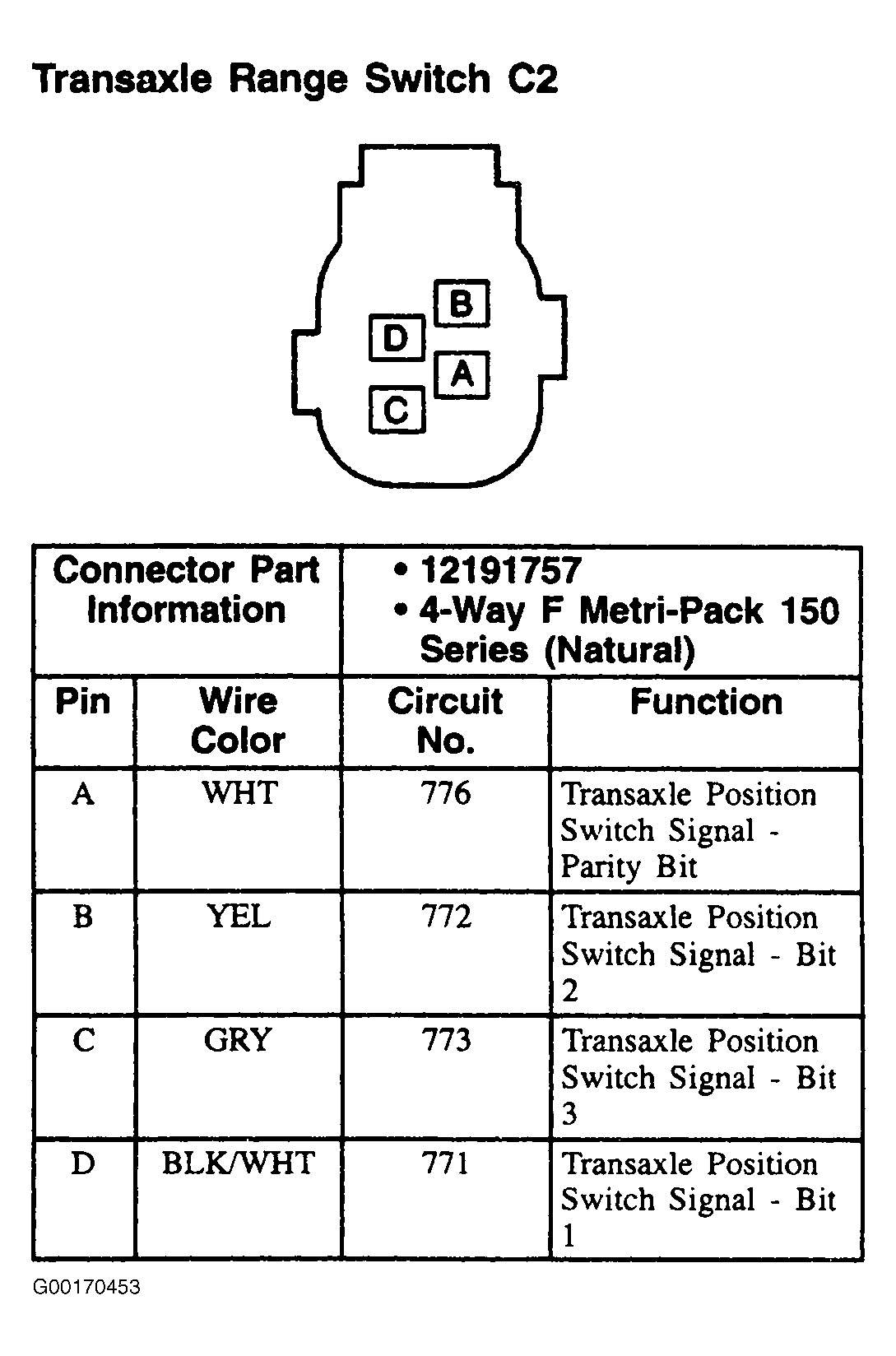

Fig 1: Transaxle Range Switch Connector C2 (Cutlass & Malibu) - 4-Pin Connector (Natural)
Courtesy of GENERAL MOTORS CORP.
