Connector Terminal Identification
>>
Transaxle Range Switch
>>
Cutlass & MALIBU
>>
Transaxle Range Switch C1
Transaxle Range Switch C1

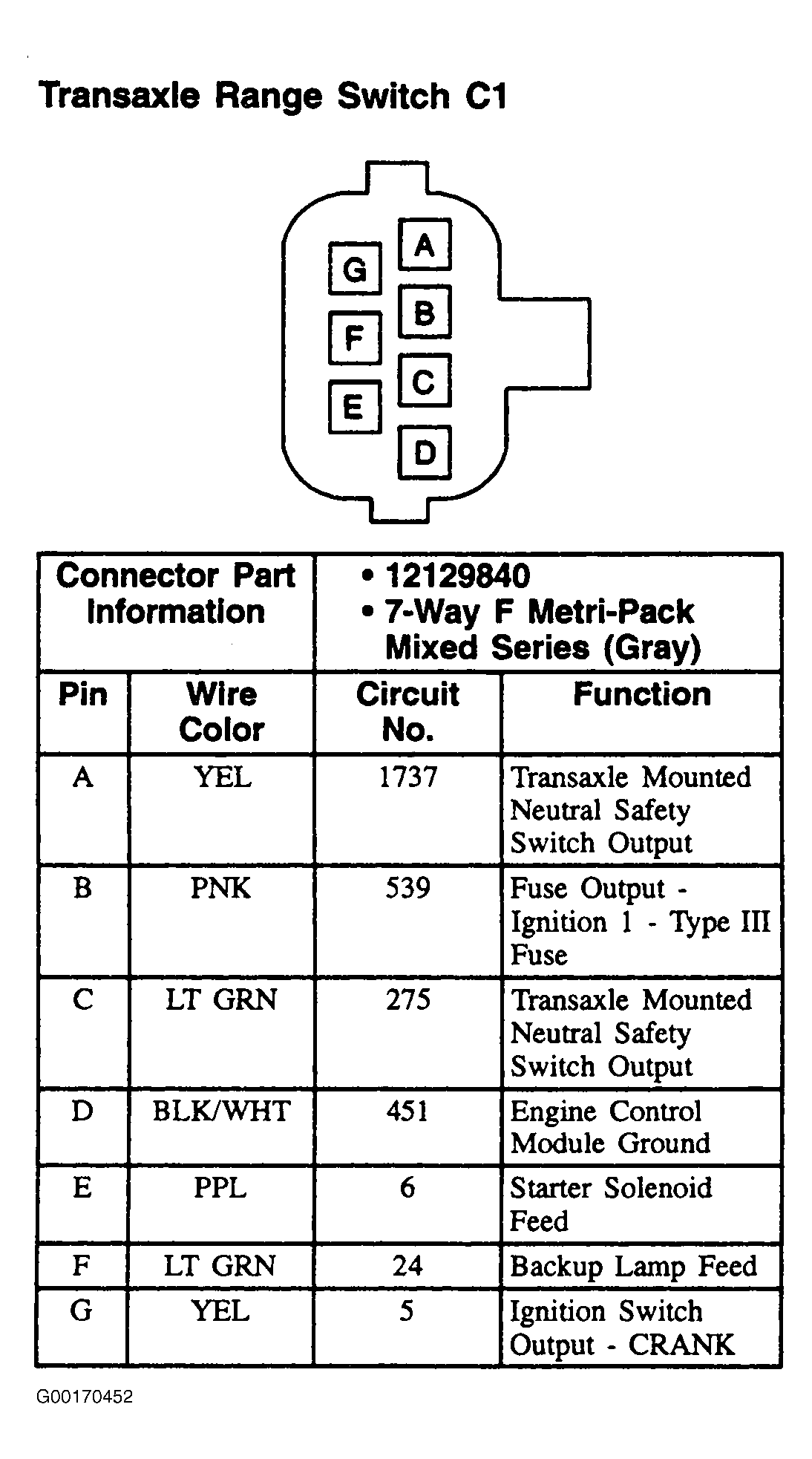

Fig 1: Transaxle Range Switch Connector C1 (Cutlass & Malibu) - 7-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
