Cutlass & MALIBU

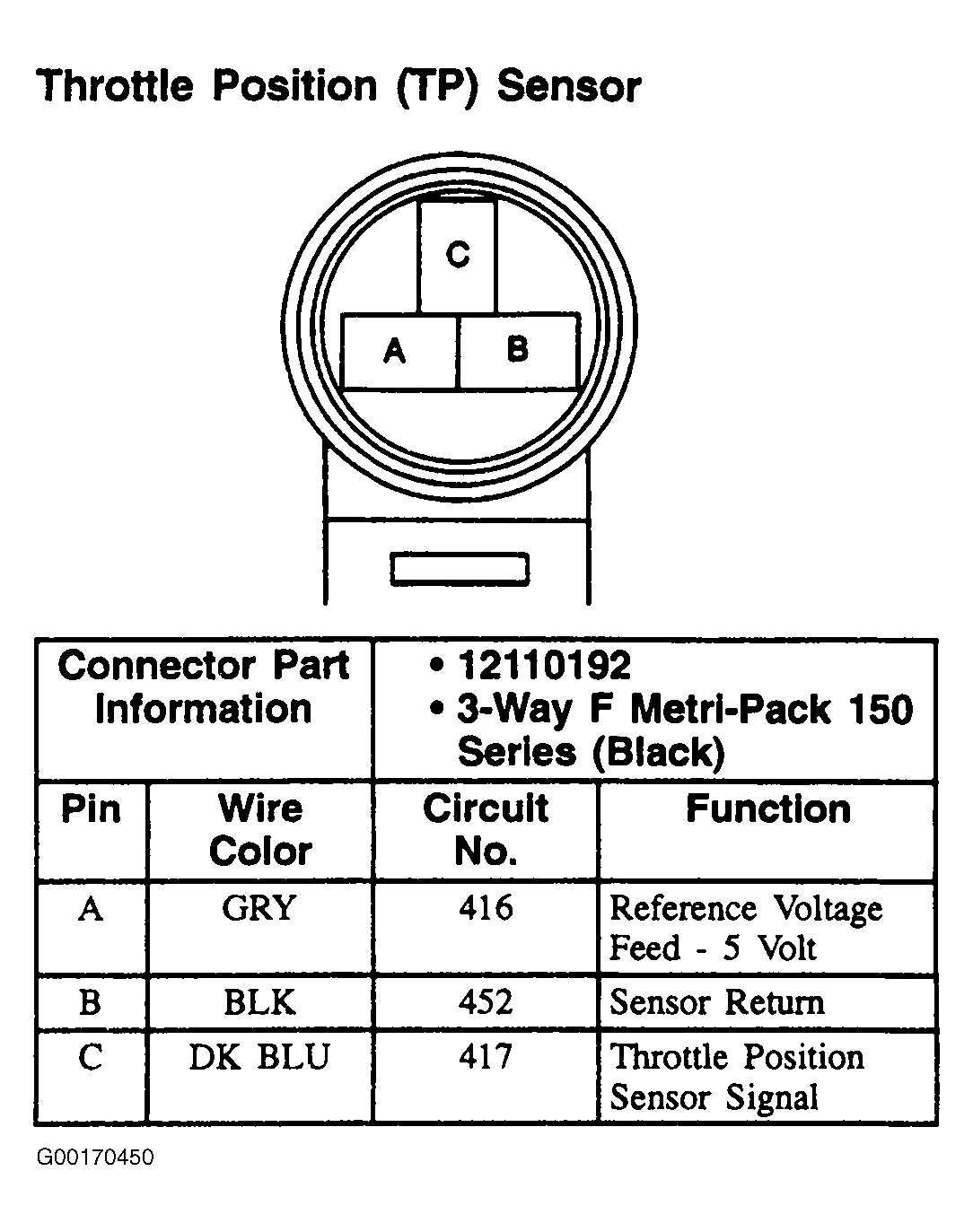

Fig 1: Throttle Position (TP) Sensor (Cutlass & Malibu) - 3-Pin Connector (Black)

G00170450

Courtesy of GENERAL MOTORS CORP.
