Heater A/C Control Assembly Connector C2

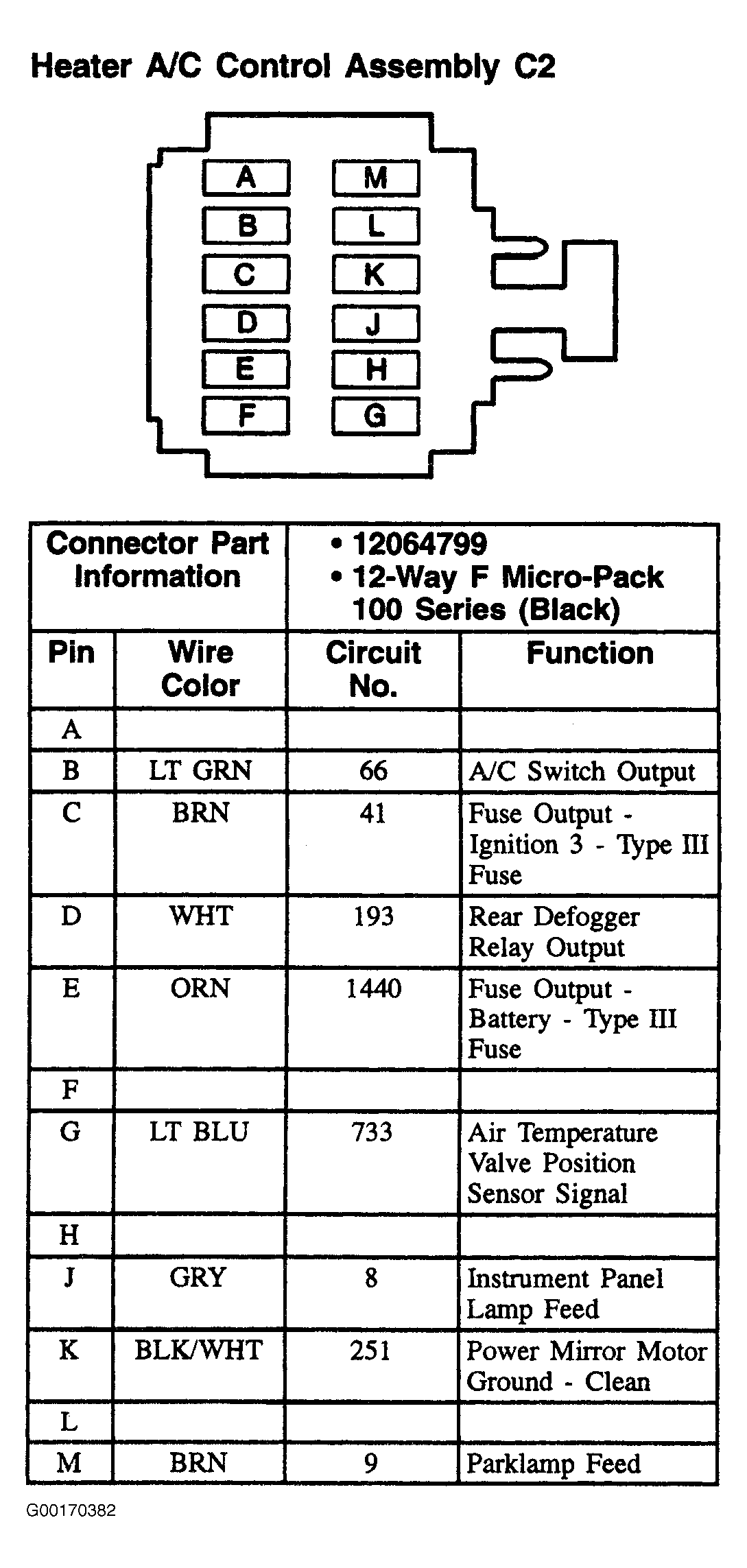

Fig 1: Heater A/C Control Assembly Connector C2 (Cutlass & Malibu) - 12-Pin Connector (Black)

G00170382

Courtesy of GENERAL MOTORS CORP.
