Body Function Controller (BFC) Connector C1

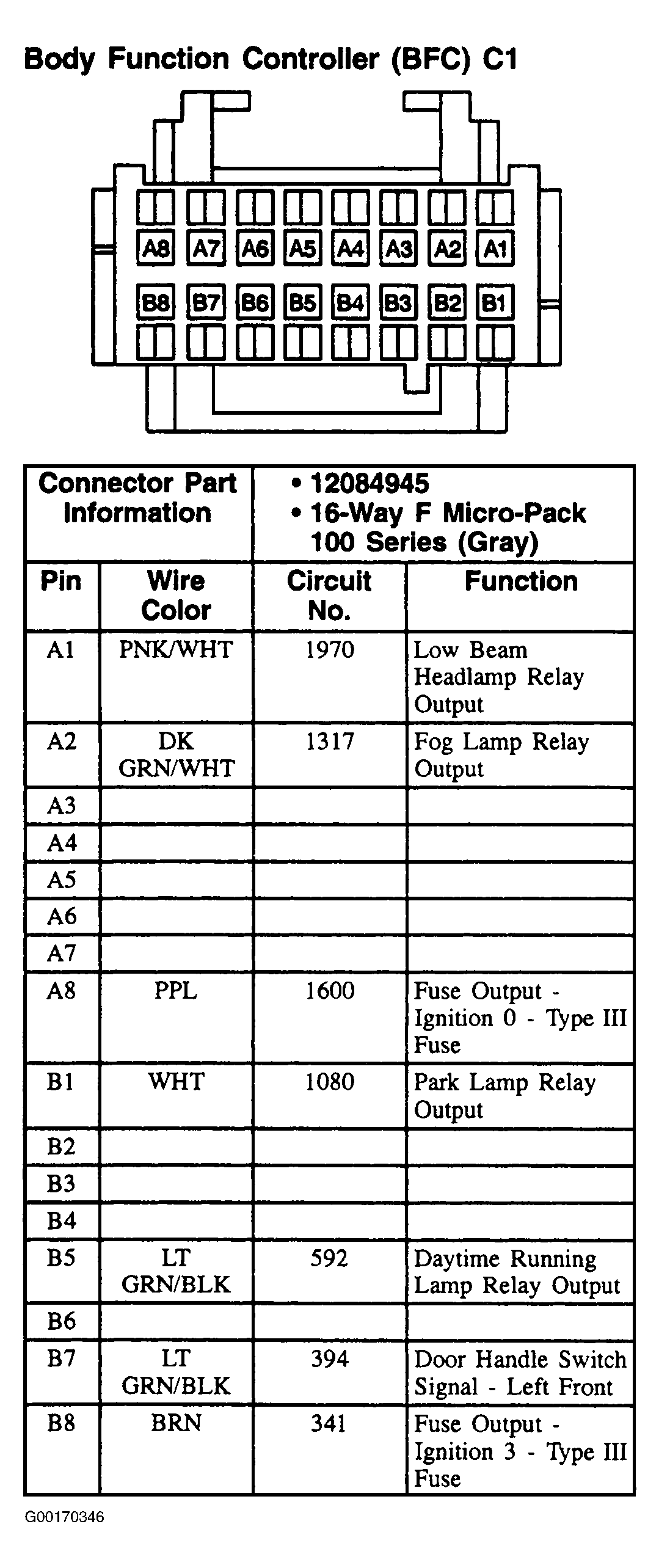

Fig 1: Body Function Controller (BFC) Connector C1 (Cutlass & Malibu) - 16-Pin Connector (Gray)

G00170346

Courtesy of GENERAL MOTORS CORP.
