UNDERHOOD Junction Block

NOTE: Underhood junction block is located on driver's side of engine compartment. See Fig 1 .
Fig 1: Locating Underhood Junction Block
G00100866Courtesy of GENERAL MOTORS CORP.

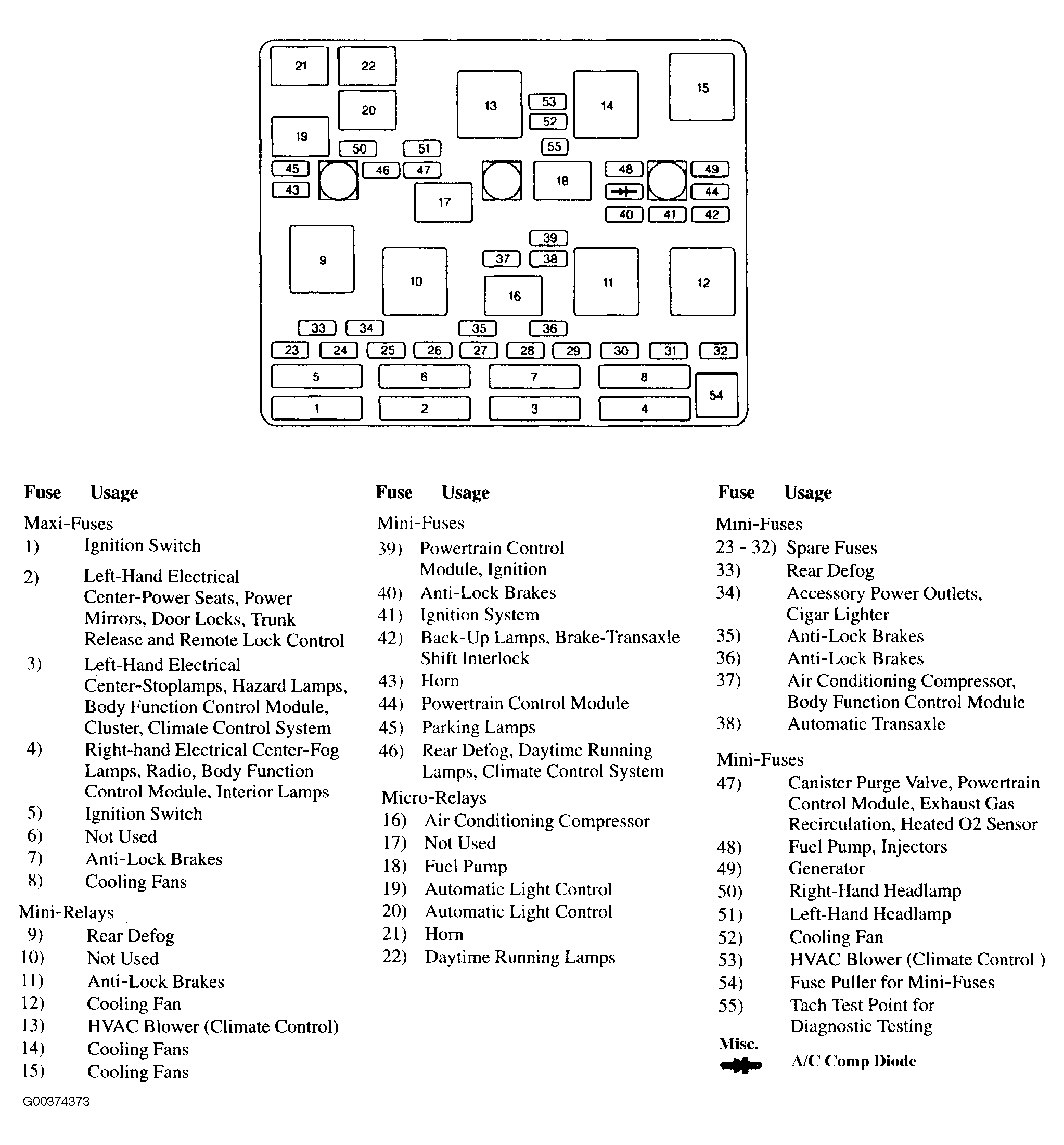

Fig 2: Identifying Underhood Junction Block Components
G00374373Courtesy of GENERAL MOTORS CORP.
