Reaction Internal Gear & Input Carrier Assembly: Disassembly

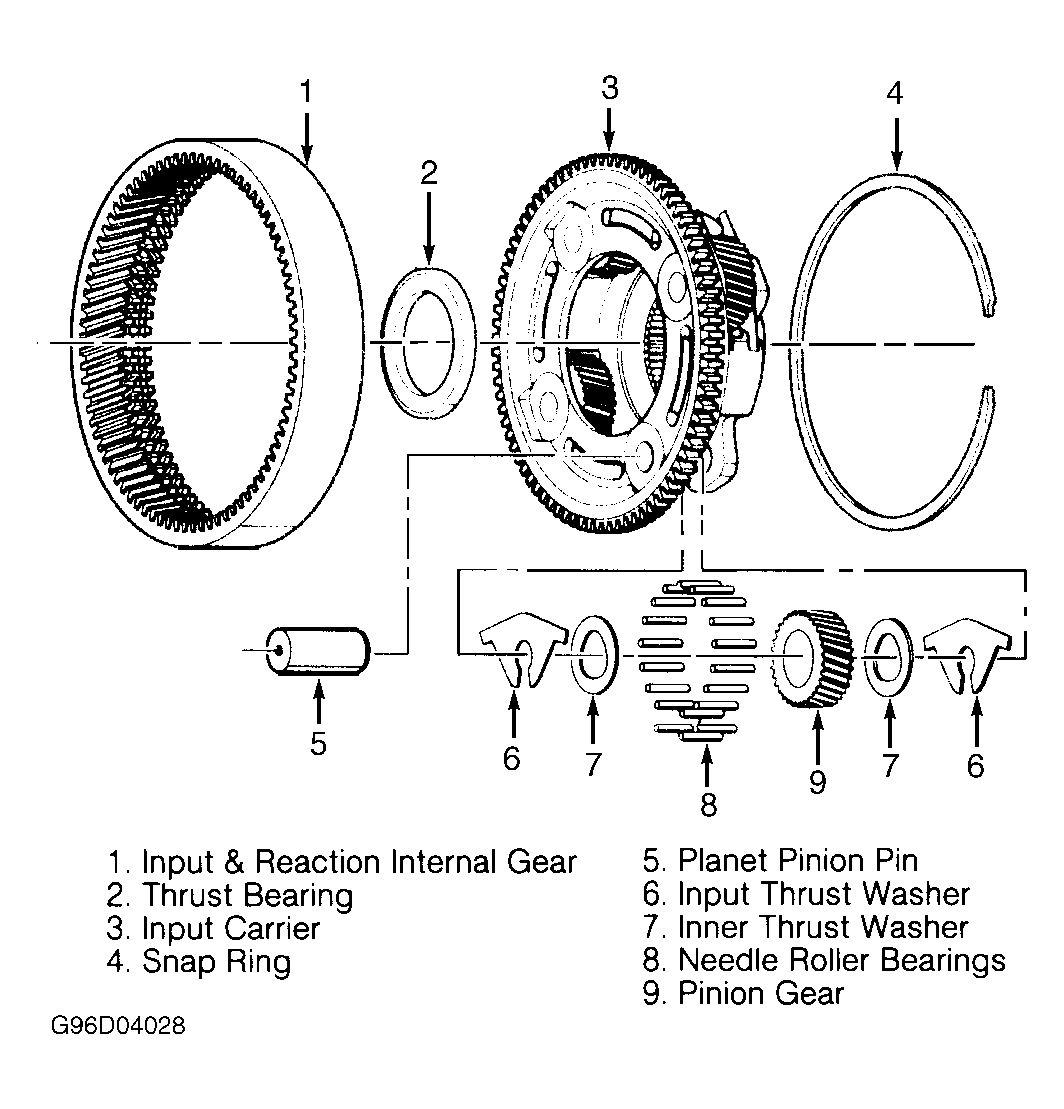

Remove thrust bearing from reaction carrier (if necessary). Remove reaction internal gear-to-input carrier assembly snap ring. Remove input carrier assembly from reaction internal gear. See Figure .
