Manifold Absolute Pressure (MAP) Sensor (3.1L)

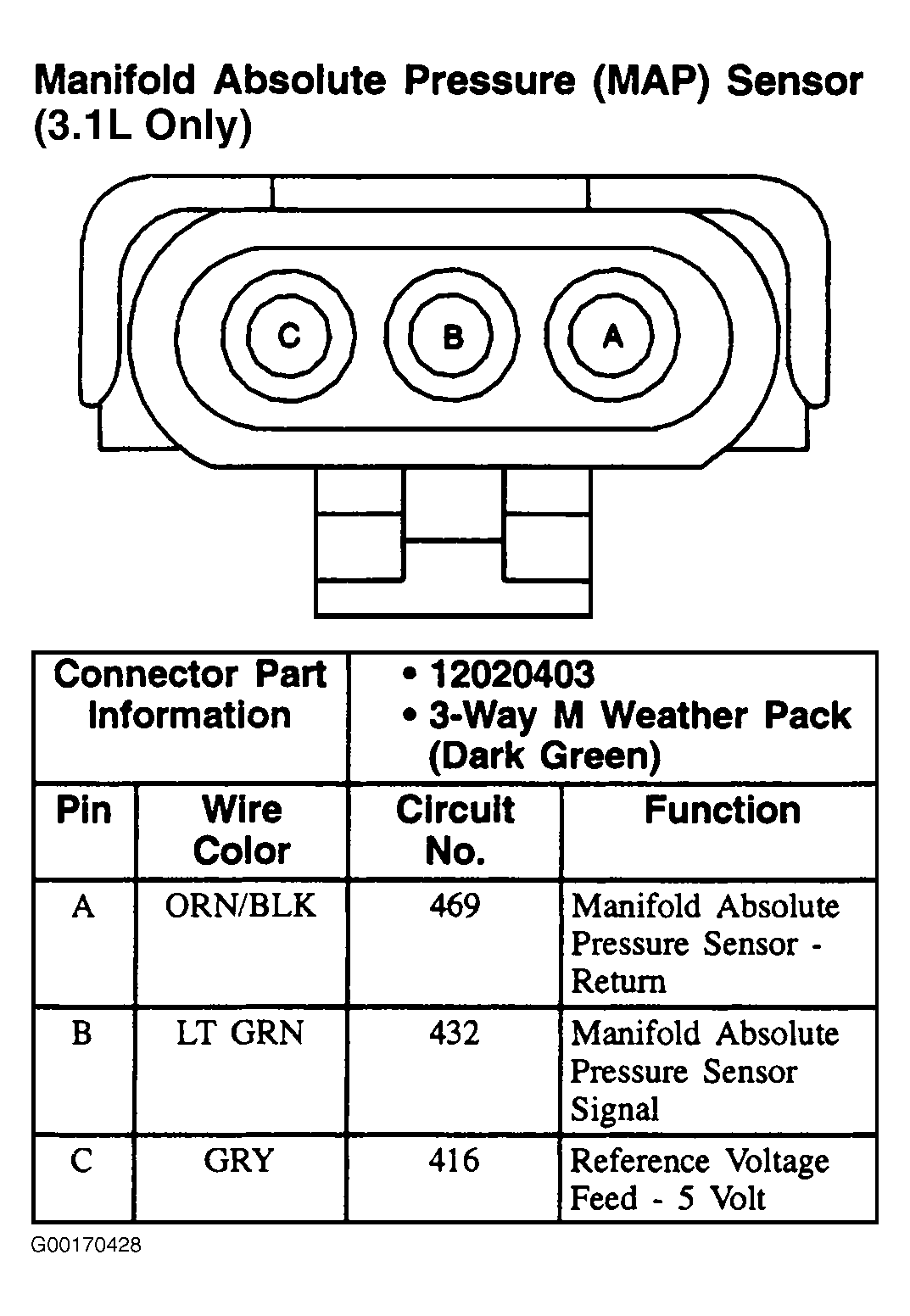

Fig 1: Manifold Absolute Pressure (MAP) Sensor (3.1L - Cutlass & Malibu) - 3-Pin Connector (Dark Green)

G00170428

Courtesy of GENERAL MOTORS CORP.
