Connector Terminal Identification
>>
Liftgate Window Release Switch
Liftgate Window Release Switch

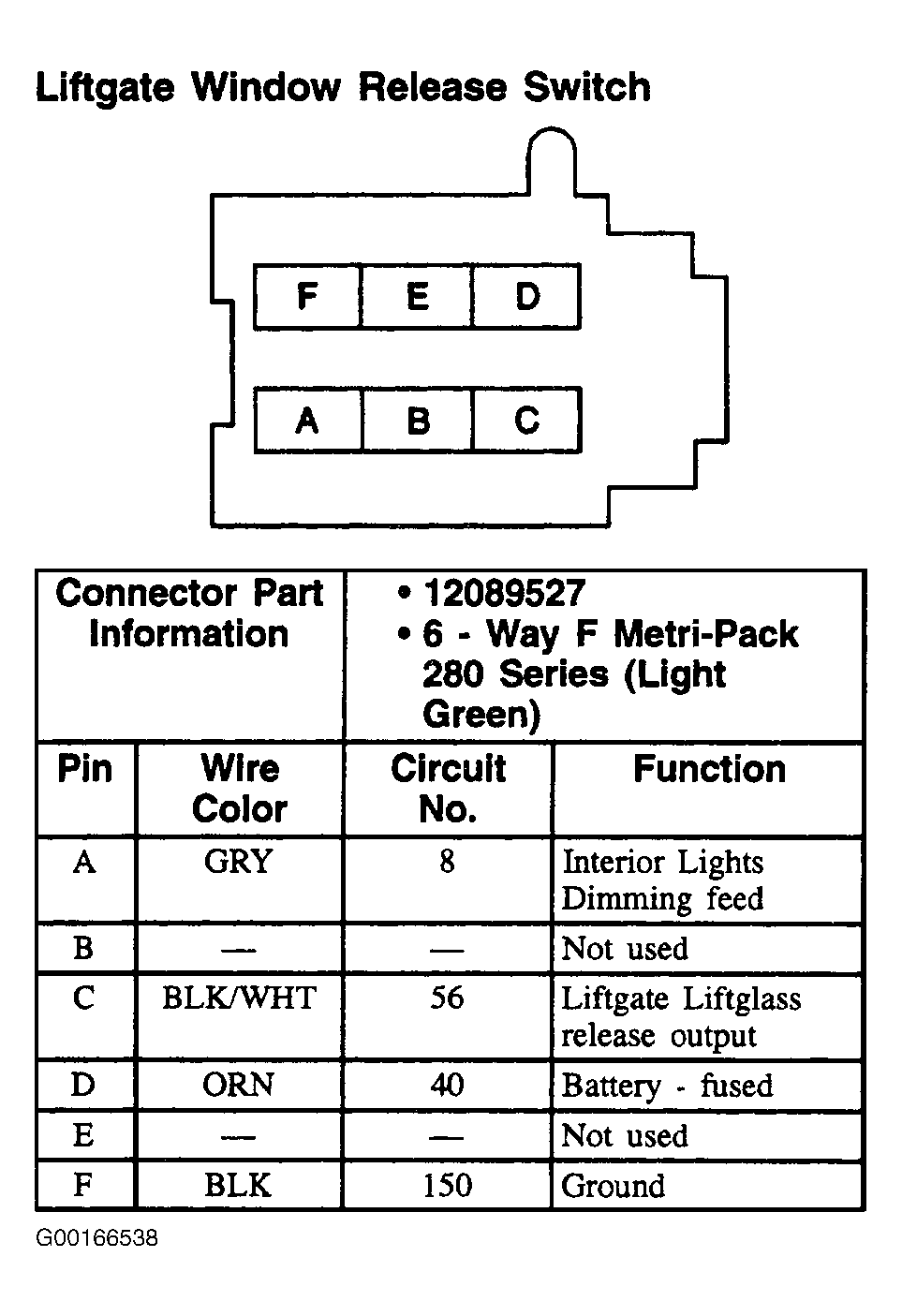

Fig 1: Liftgate Window Release Switch - 6-Pin Connector, Light Green
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
