Electronic Ignition Control Module C2 (W/O Coil - 2.2L)
Electronic Ignition Control Module C2 (W/O Coil - 2.2L)

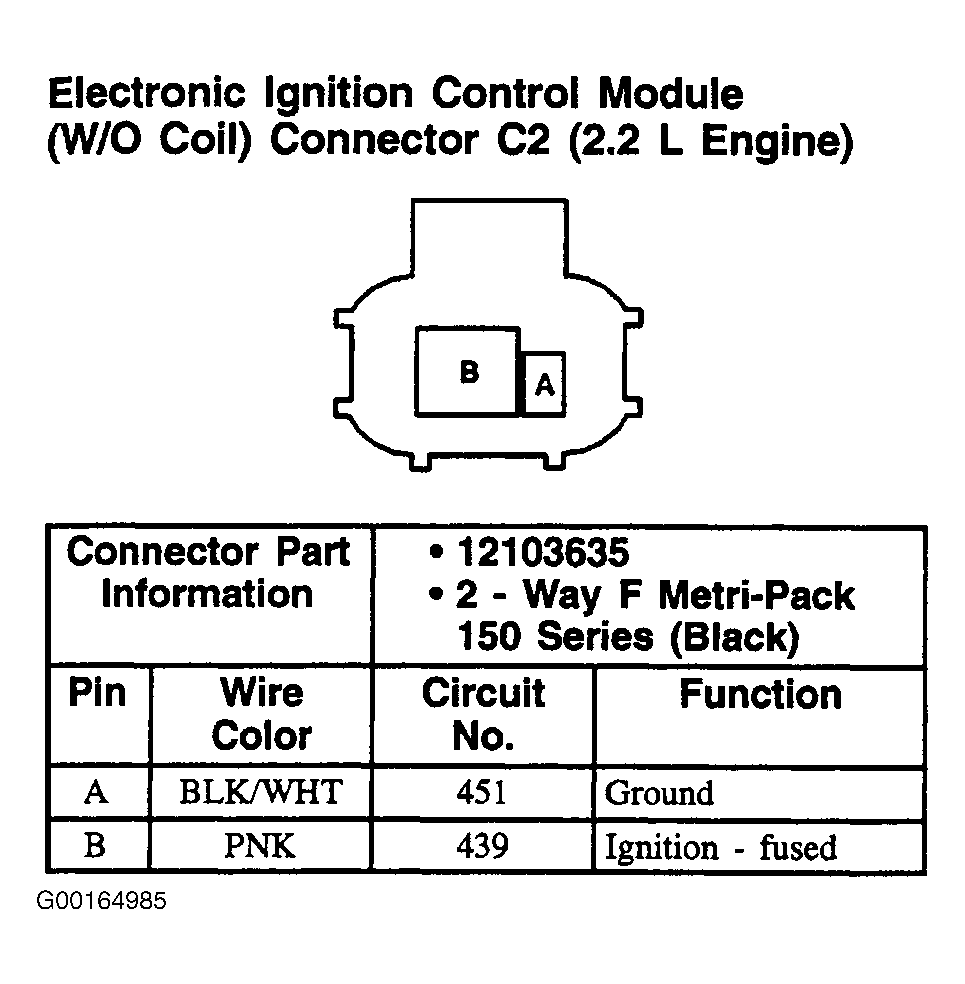

Fig 1: Electronic Ignition Control Module C2 (W/O Coil - 2.2L) - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
