C404 & C406

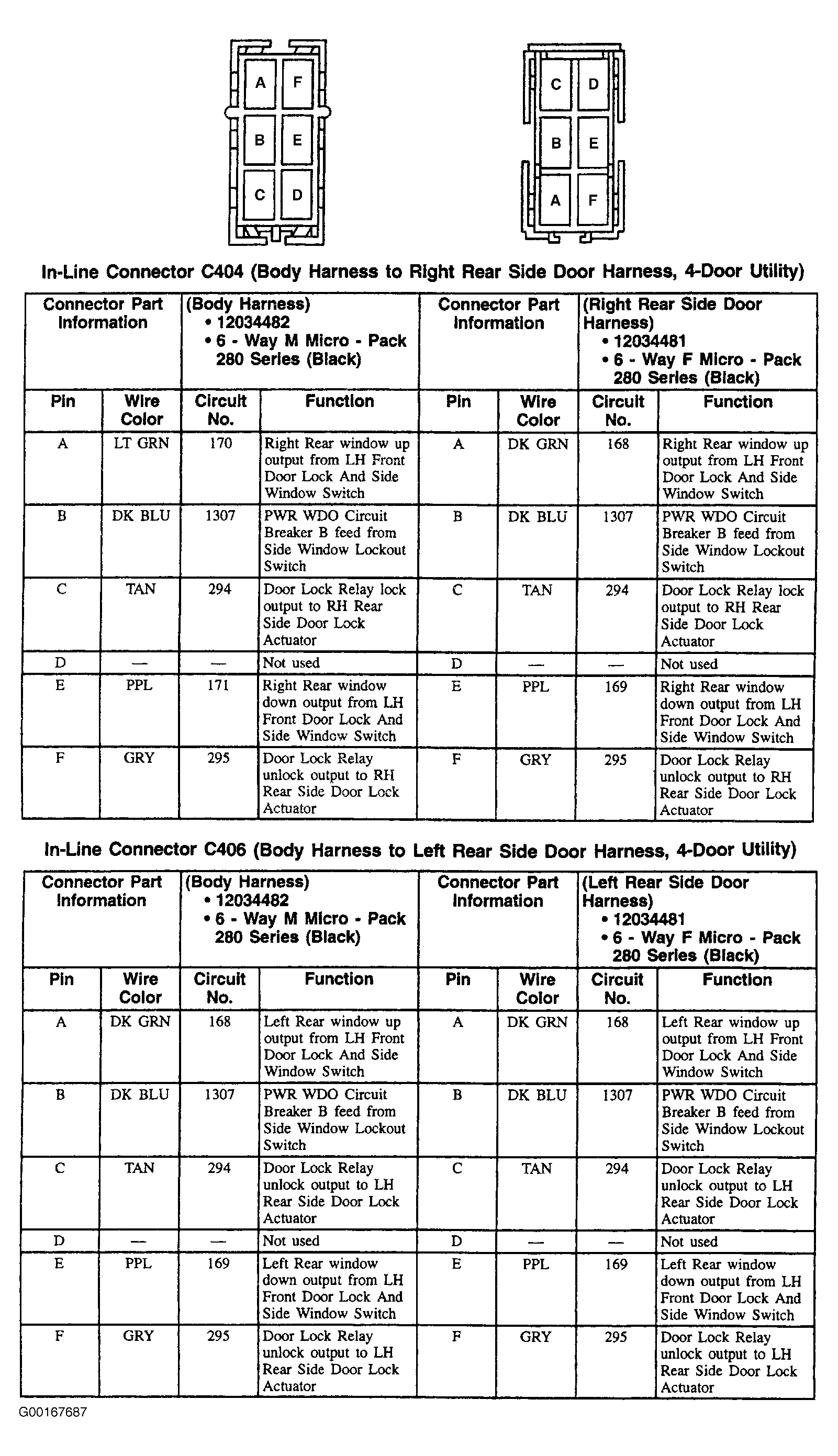

Fig 1: C404 & C406 - 6-Pin Connector, Black

G00167687

Courtesy of GENERAL MOTORS CORP.
