C101 (W/ A/C)

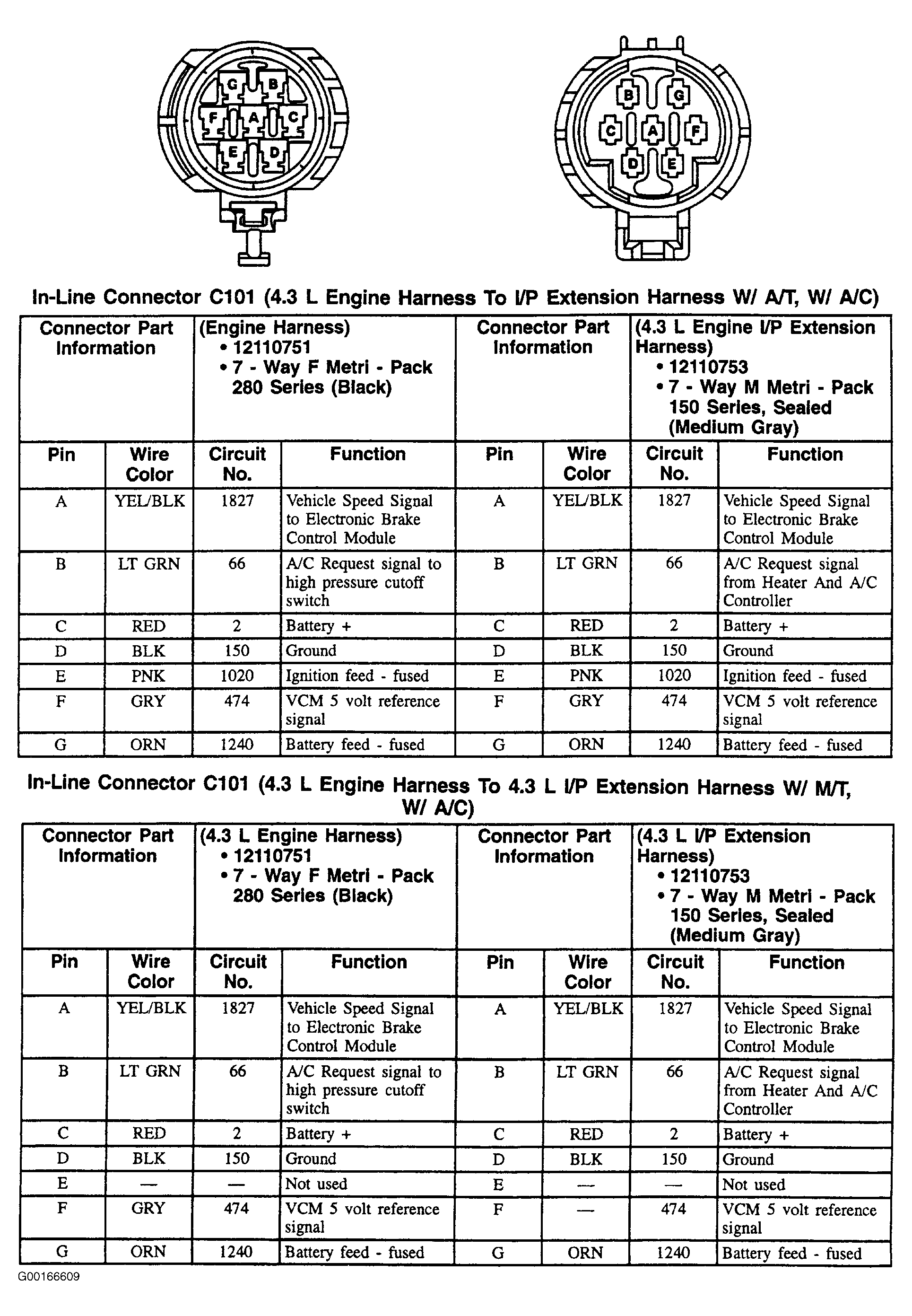

Fig 1: C101 (W/ A/C) - 7-Pin Connector, Black/Medium Gray

G00166609

Courtesy of GENERAL MOTORS CORP.
