Maintenance Information
>>
Service Point Locations
Service Point Locations

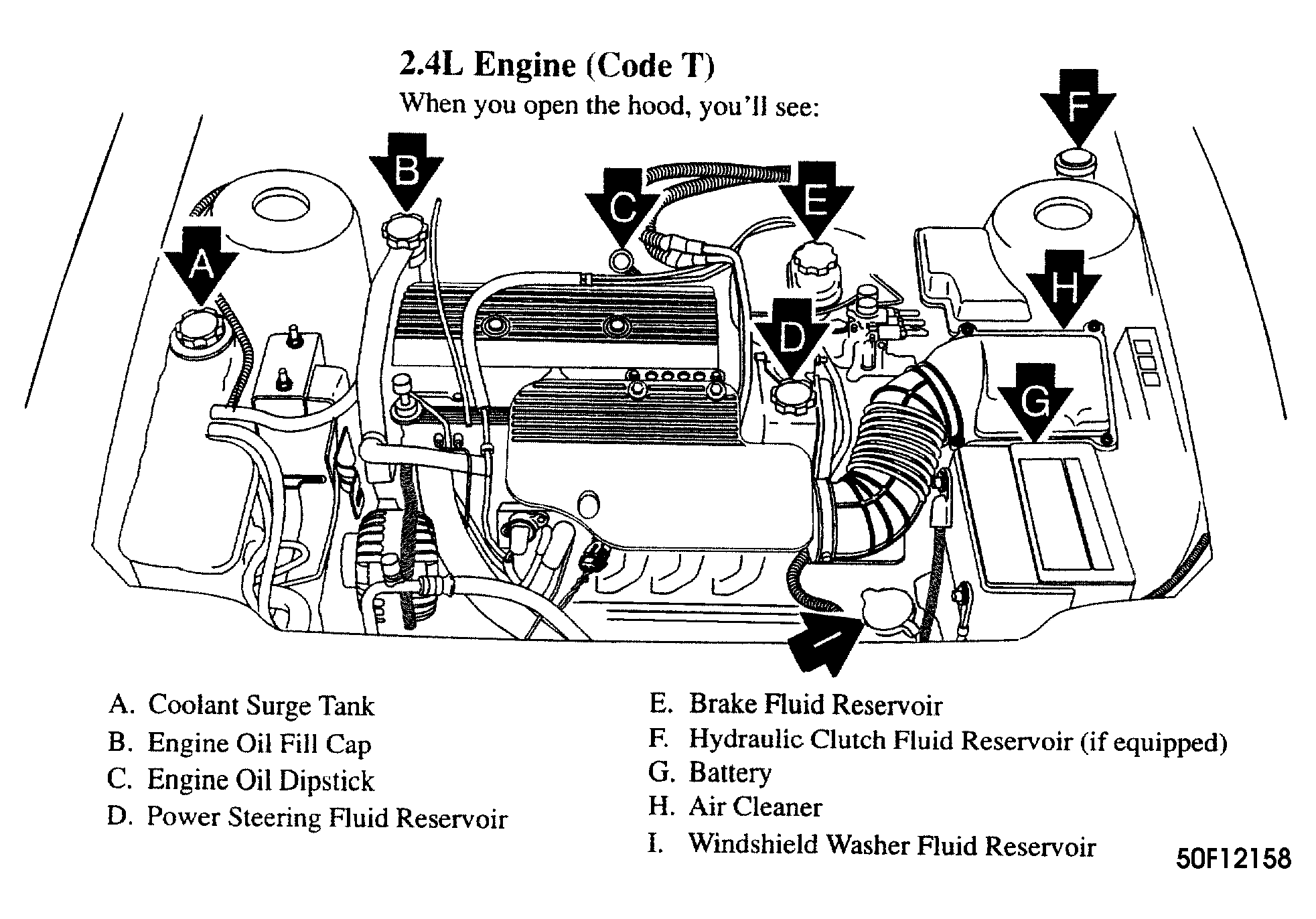

Fig 1: Compartment Component Locations (2.4L Engine)
Courtesy of GENERAL MOTORS CORP.

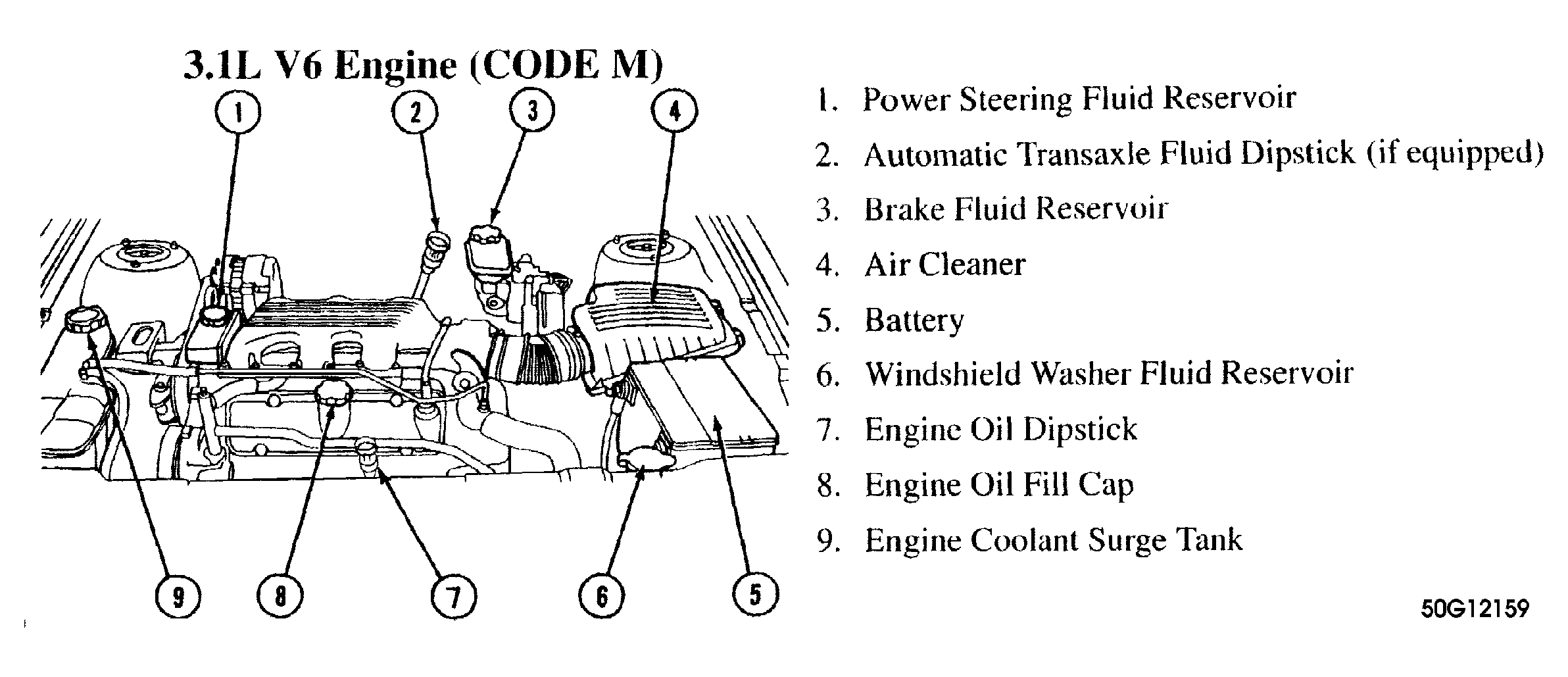

Fig 2: Compartment Component Locations (3.1L V6 Engine)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
