Cutlass & MALIBU

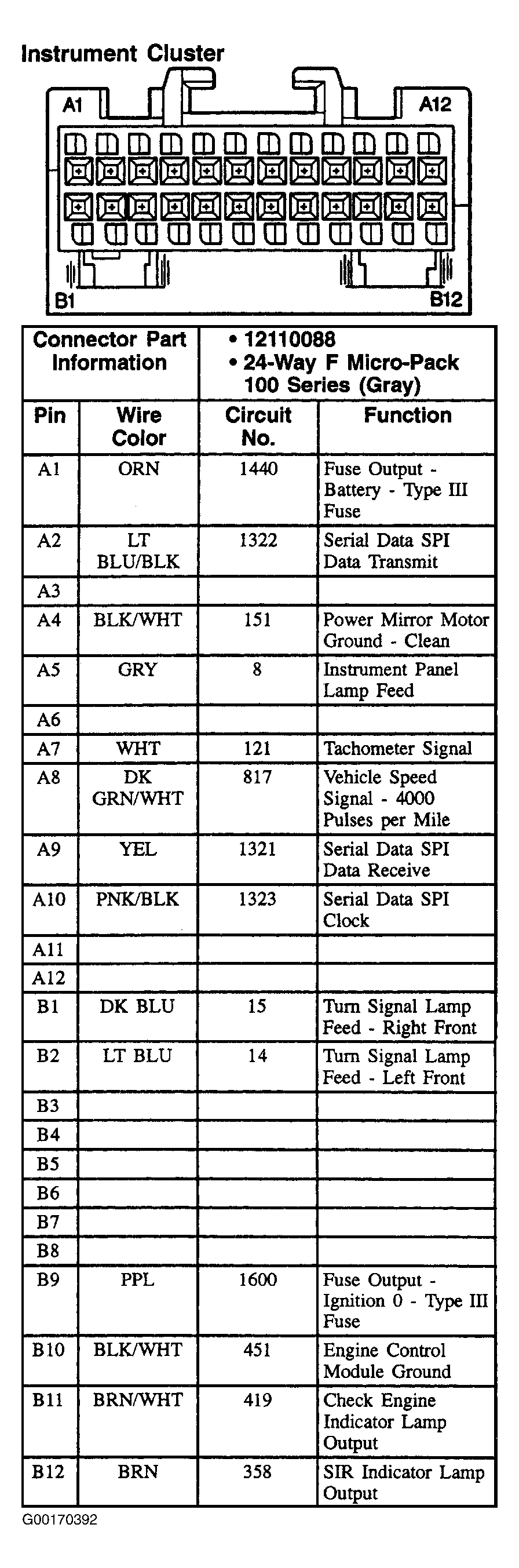

Fig 1: Instrument Cluster (Cutlass & Malibu) - 24-Pin Connector (Gray)
G00170392Courtesy of GENERAL MOTORS CORP.
