Cutlass & MALIBU

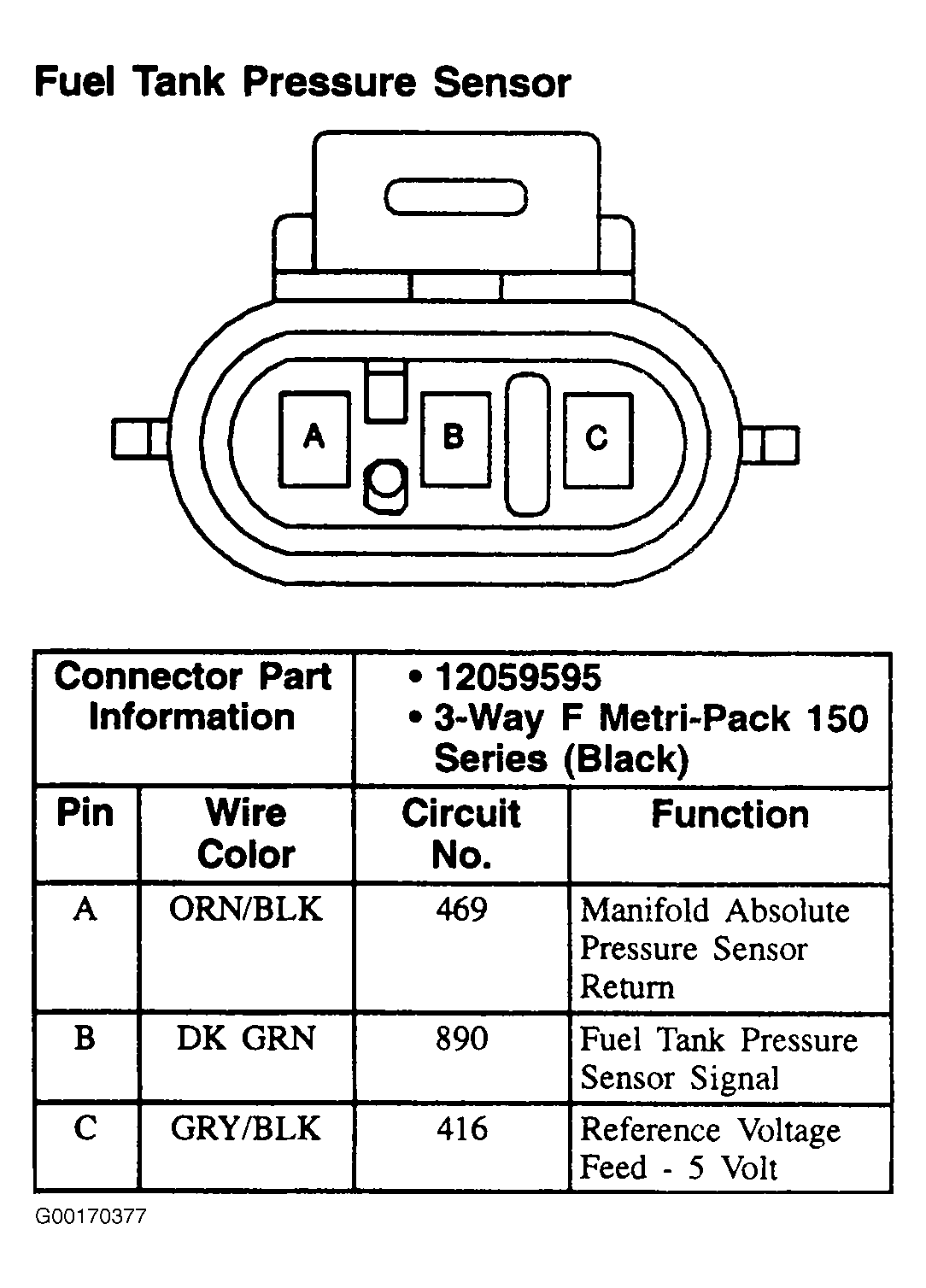

Fig 1: Fuel Tank Pressure Sensor (Cutlass & Malibu) - 3-Pin Connector (Black)
G00170377Courtesy of GENERAL MOTORS CORP.
