Home >> Oldsmobile >> 1997 >> Achieva SL, 2.4 T, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Forward/Back Motor >> Cutlass & MALIBU

Cutlass & MALIBU

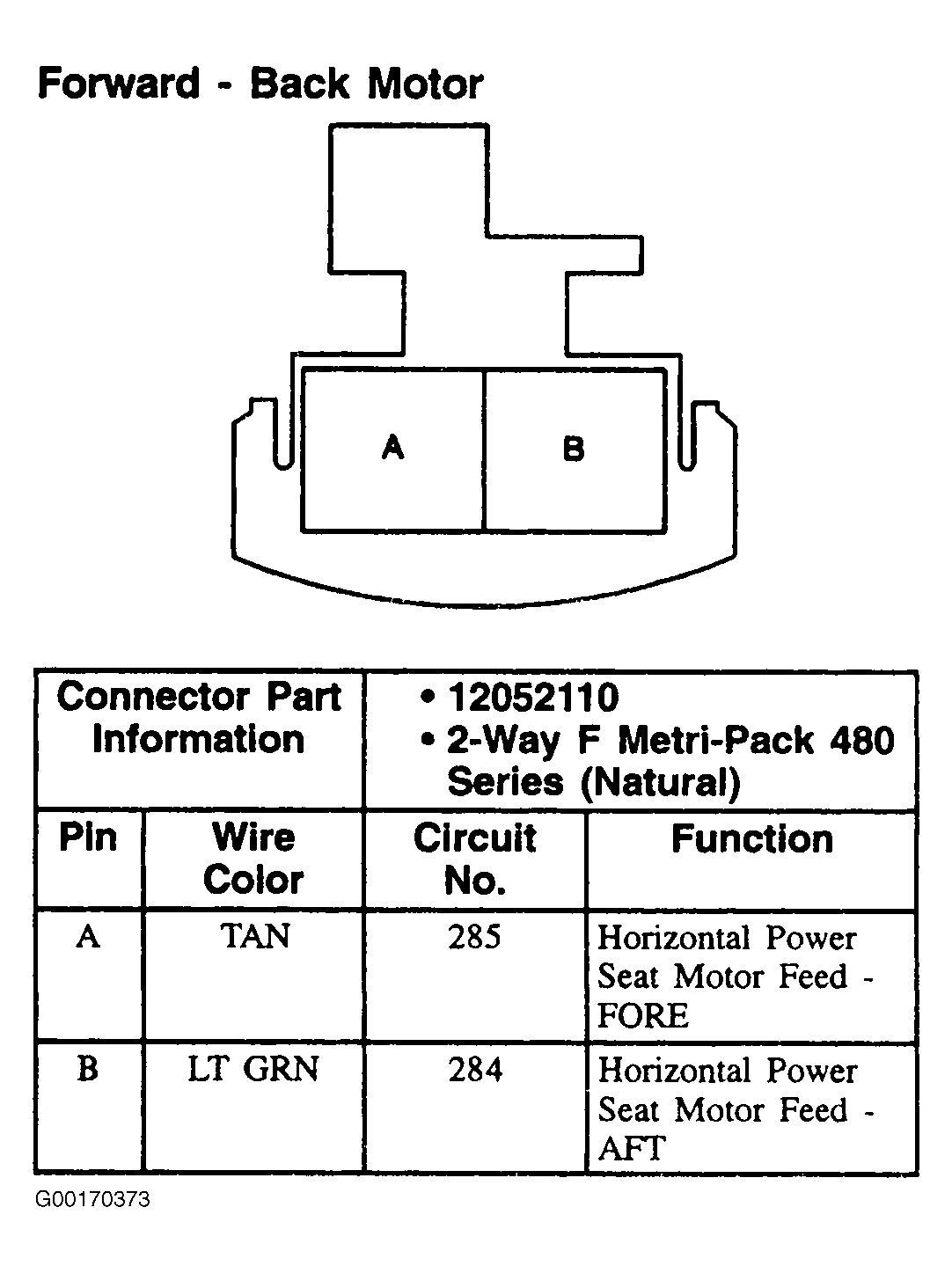

Fig 1: Forward/Back Motor (Cutlass & Malibu) - 2-Pin Connector (Natural)
G00170373Courtesy of GENERAL MOTORS CORP.
