Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Antenna/Rear Defogger Module | On top center of rear shelf. |

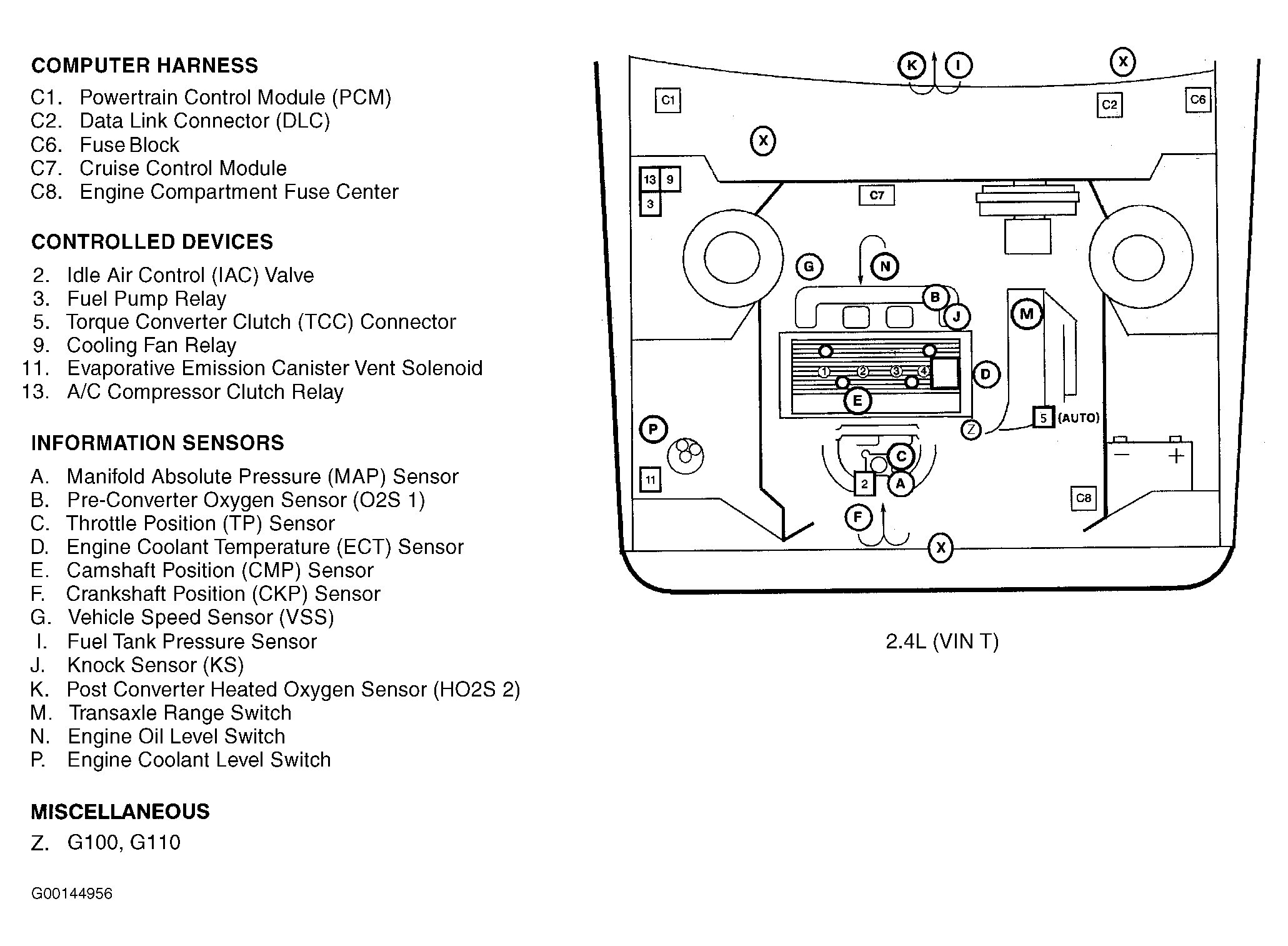

| Cruise Control Module (2.4L VIN T) | Front of dash, in engine compartment. See Figure . |
| Cruise Control Module (3.1L VIN M) | Front of dash, in engine compartment. |
| Electronic Brake Control Module | Right rear of engine compartment. |
| Fuel Tank Module | Under rear of vehicle. |
| Ignition Control Module (2.4L VIN T) | Left rear of engine compartment. |

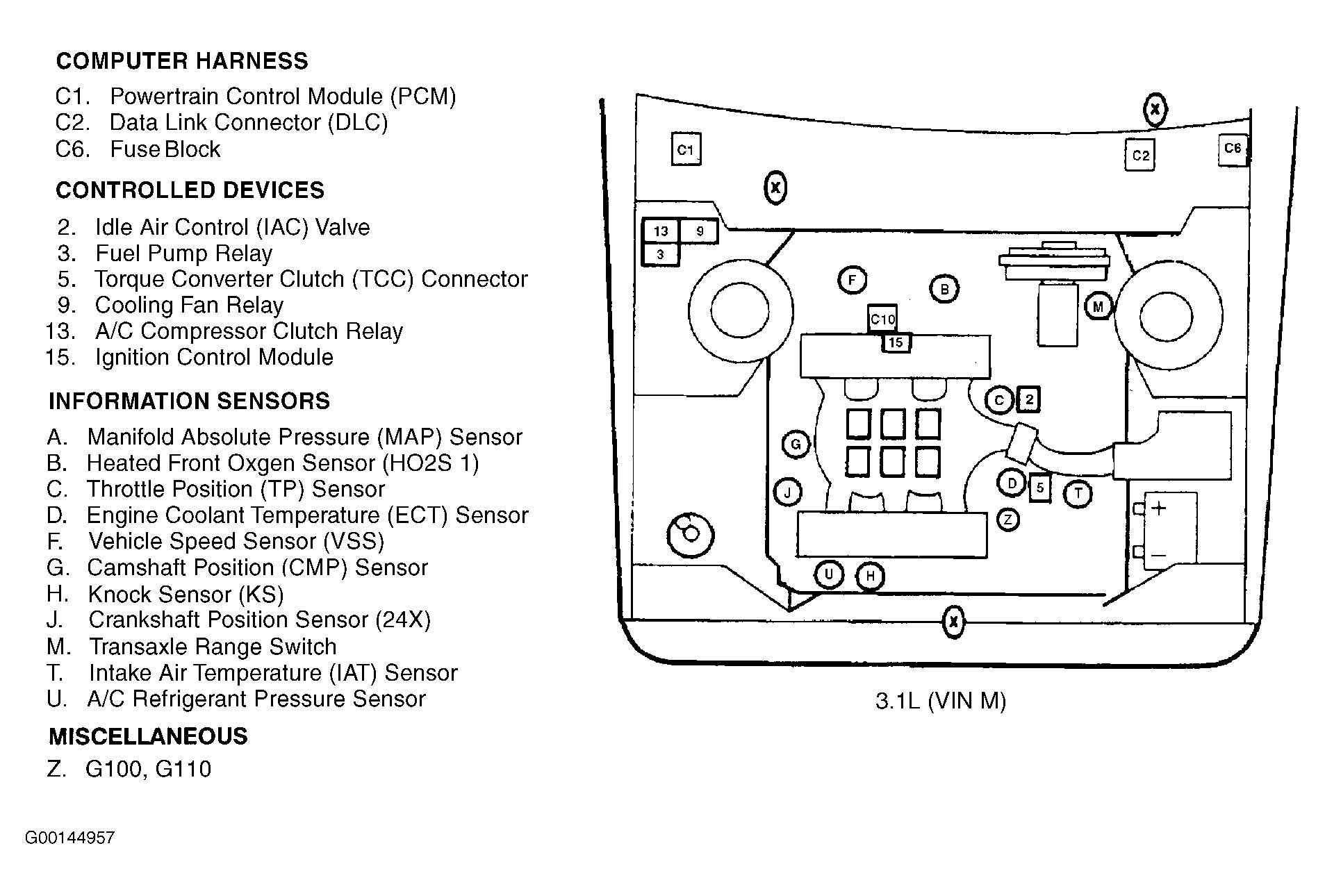

| Ignition Control Module (3.1L VIN M) | Rear of engine. See Figure . |
| Lamp Dimmer Module | Behind left side of dash, near steering column. |
| Multi-Function Alarm Module | Behind left side of dash, near steering column. |
| Powertrain Control Module (PCM) (2.4L VIN T) | Behind right side of dash. See Figure . |
| Powertrain Control Module (PCM) (3.1L VIN M) | Behind right side of dash. See Figure . |
| PRNDL Control Module | Center of dash, near tie bar. |
| Remote Control Door Lock Receiver (RFA) | In luggage compartment, above left wheelwell. |
| Sensing Diagnostic Module (SDM) | Right side of passenger compartment. |
