Right Instrument Panel Fuse/Relay Center

NOTE: Right instrument panel fuse/relay center is located below the passenger side instrument panel, under the sound insulator behind footwell.

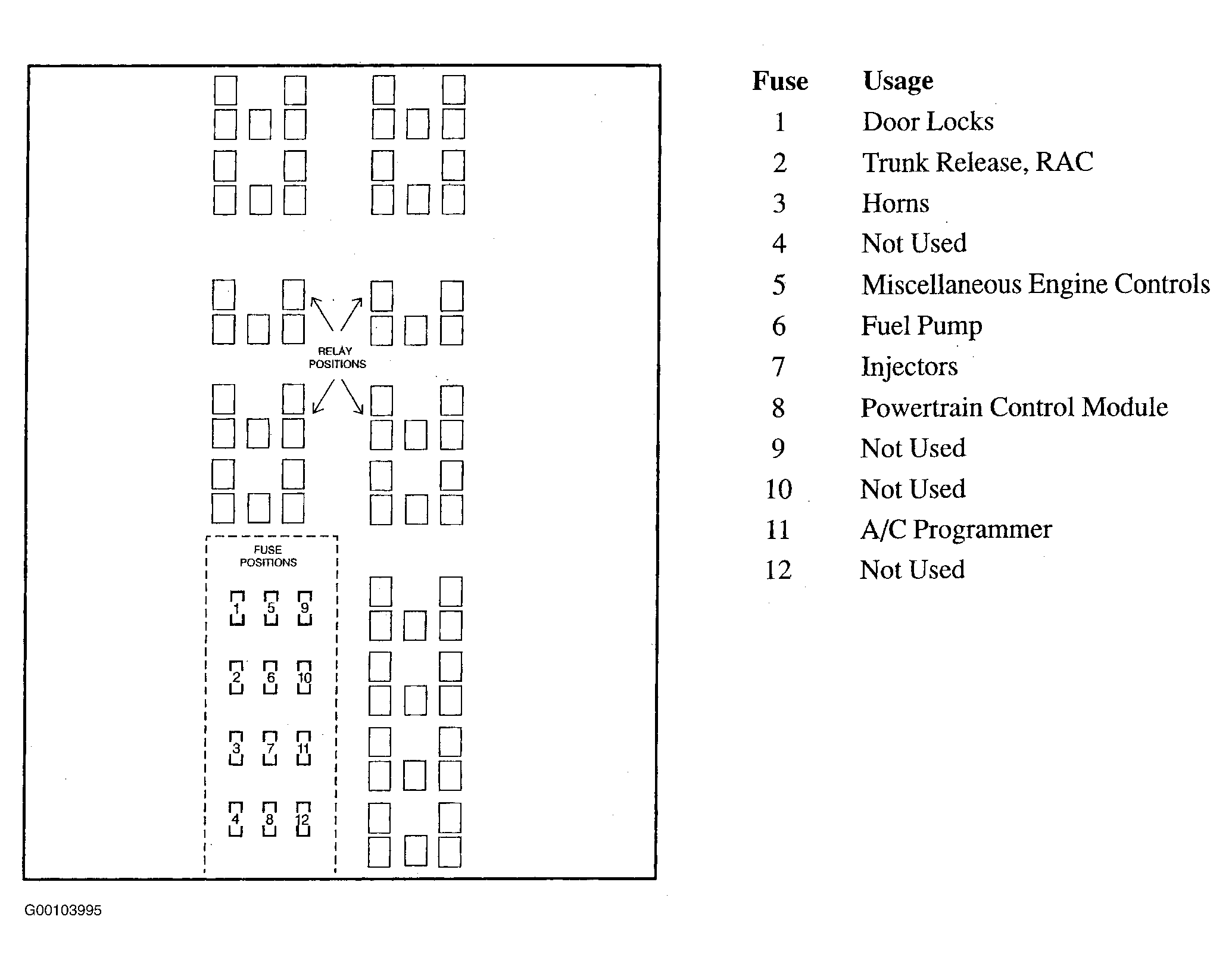

Fig 1: Identifying Right Instrument Panel Fuse/Relay Center Components

Courtesy of GENERAL MOTORS CORP.
