Camber Adjustment (Front)

Loosen nuts on 2 bolts securing strut to steering knuckle. See Fig 1 . Install Camber Adjuster (J-29862). Rotate bolt on camber adjuster until camber is as specified. See WHEEL ALIGNMENT SPECIFICATIONS  . Tighten nuts to specification. See TORQUE SPECIFICATIONS.

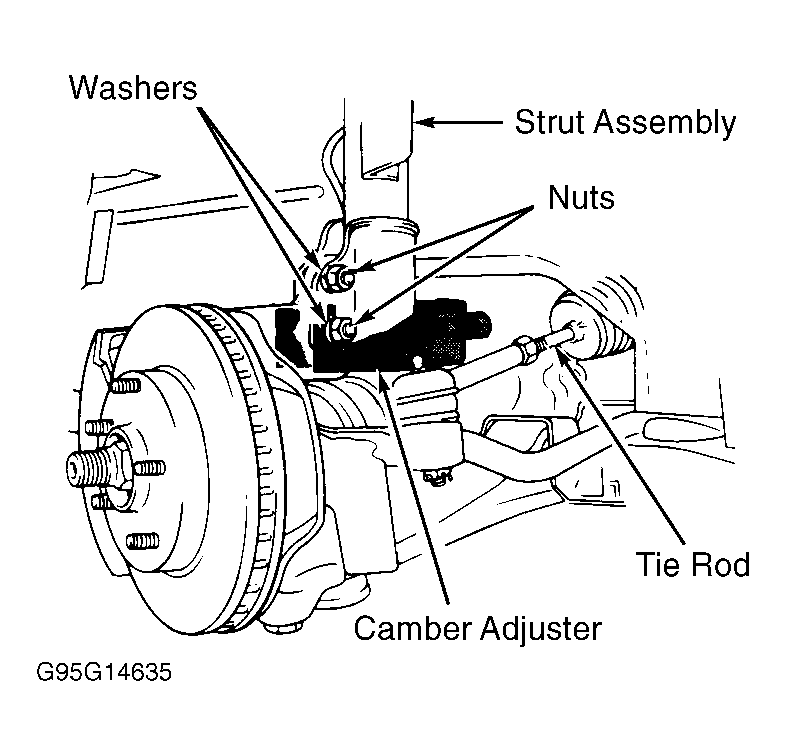

Fig 1: Adjusting Front Camber
G95G14635Courtesy of GENERAL MOTORS CORP.
