Removal (VIN 1)

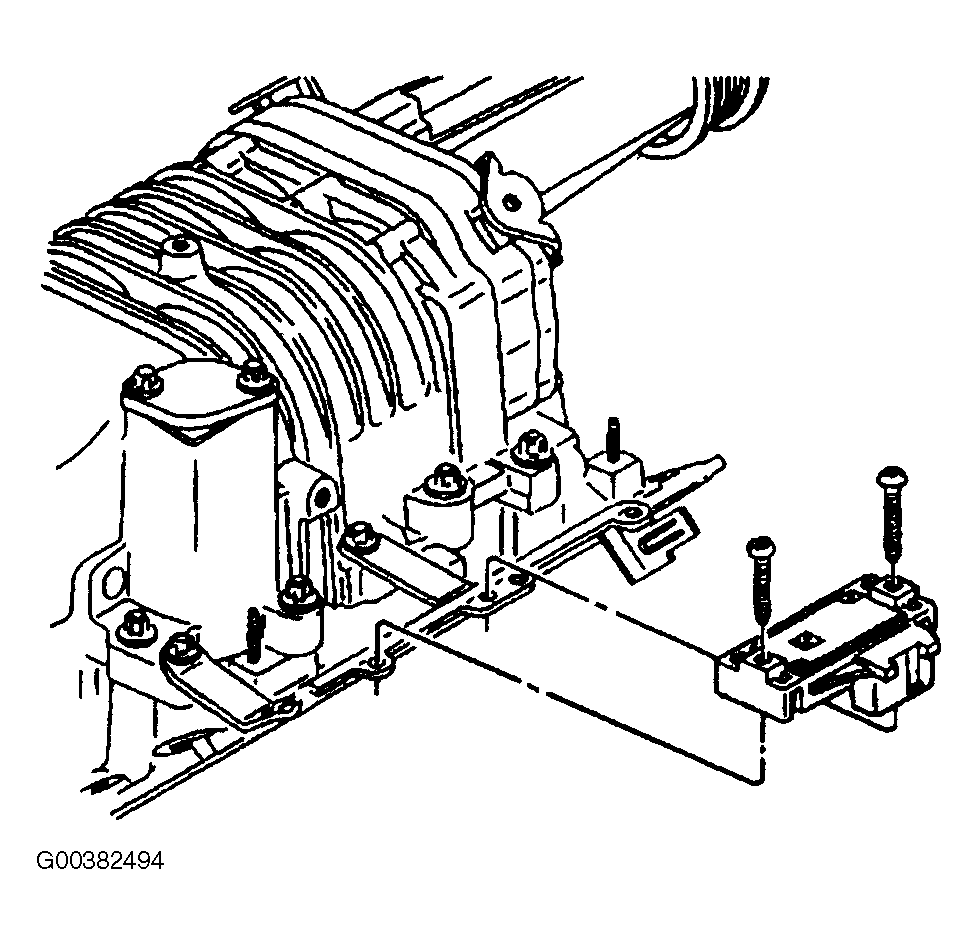

Remove 2 screws. See Figure. Disconnect the MAP sensor electrical connector and vacuum hose connection. Remove the MAP sensor.
