Data Link Connector

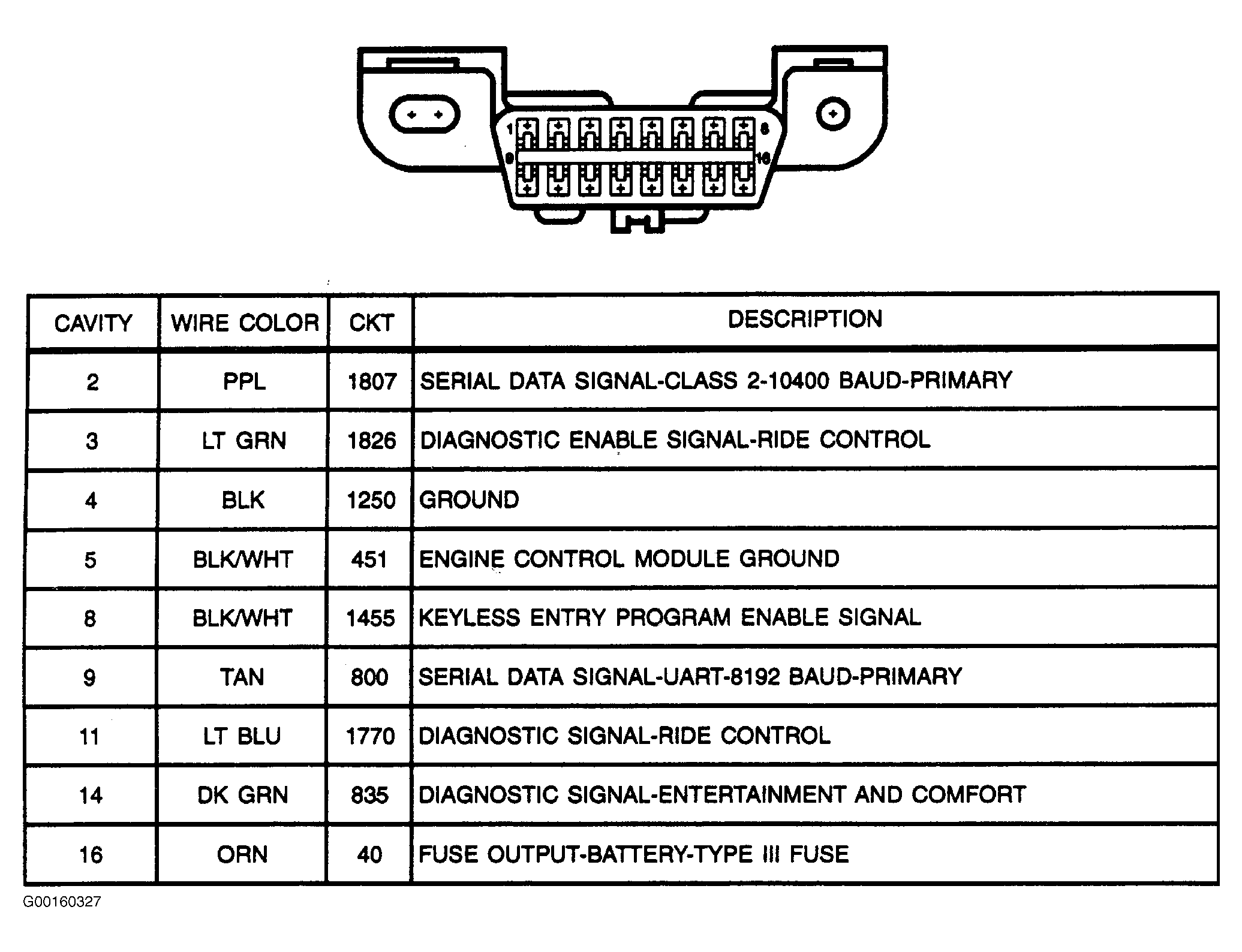

For Data Link Connector (DLC) terminal identification, see Fig 1.

Fig 1: Identifying DLC Terminals

G00160327

Courtesy of GENERAL MOTORS CORP.
