Diagnostic Process

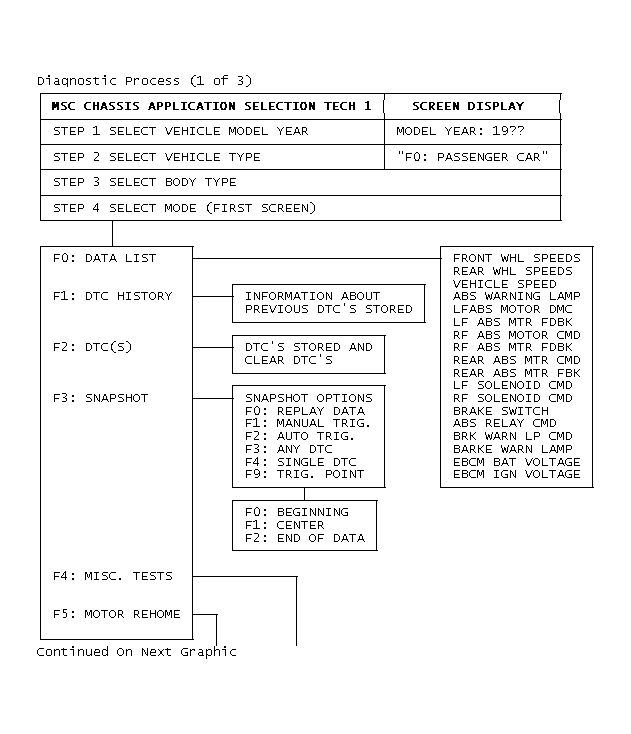

Fig 1: Diagnostic Process (1 of 3)

GB0014226

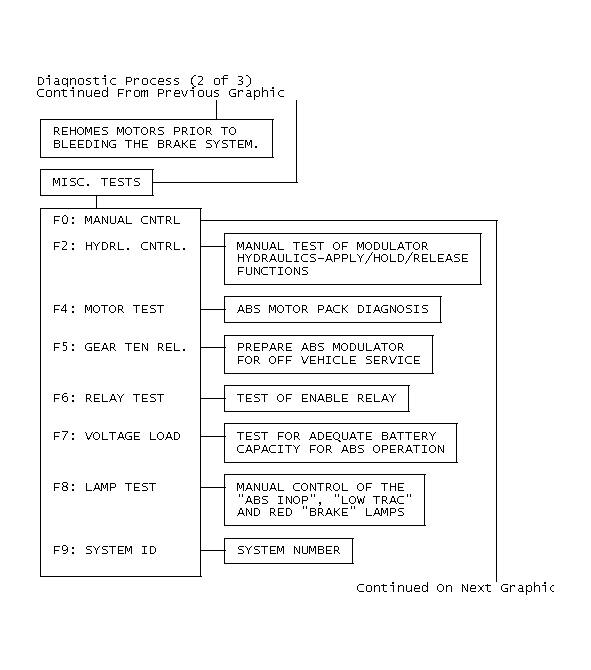

Fig 2: Diagnostic Process (2 of 3)

GB0014227

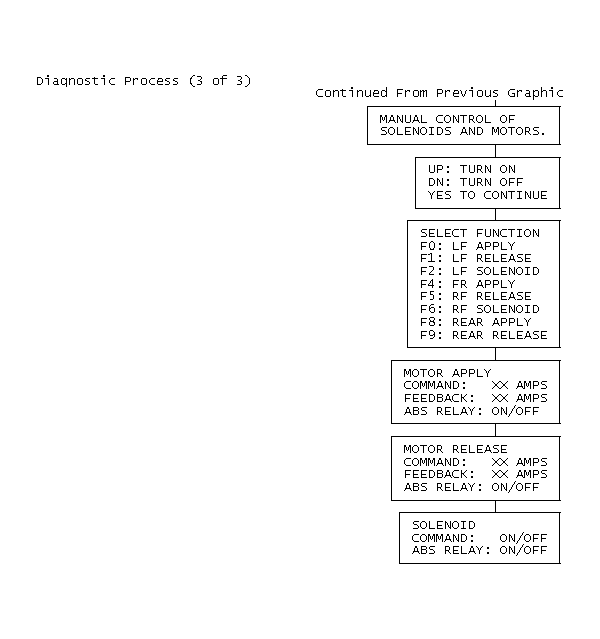

Fig 3: Diagnostic Process (3 of 3)

GB0014228
