Engine Controls - System/Component Tests - 2.4L
>>
Component Locations
Component Locations

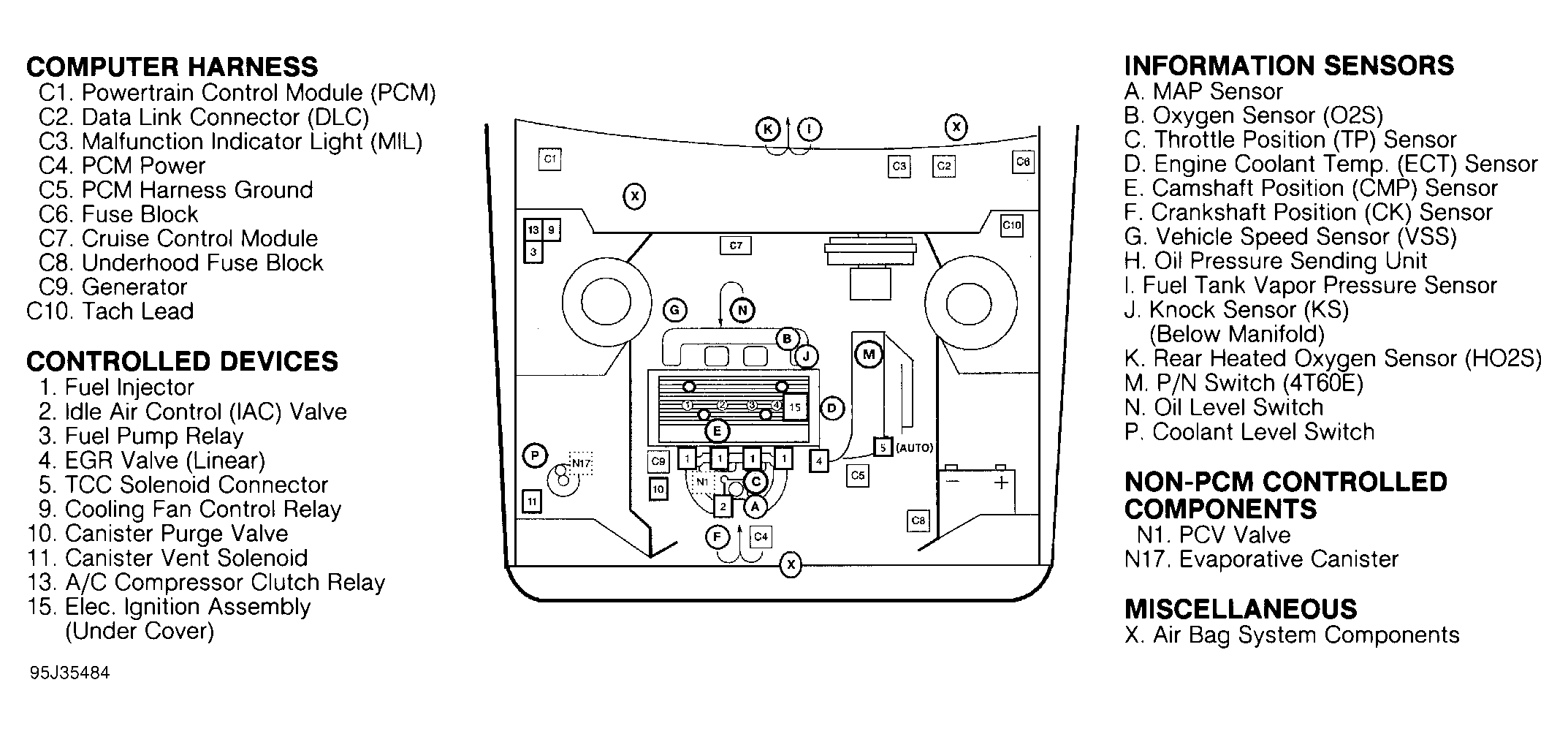

Fig 1: Component Locations
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
