Diagnostic Aids

An intermittent may be caused by a poor connection, chaffed wire insulation or a broken wire. Check for damaged harness, terminals or broken locks.

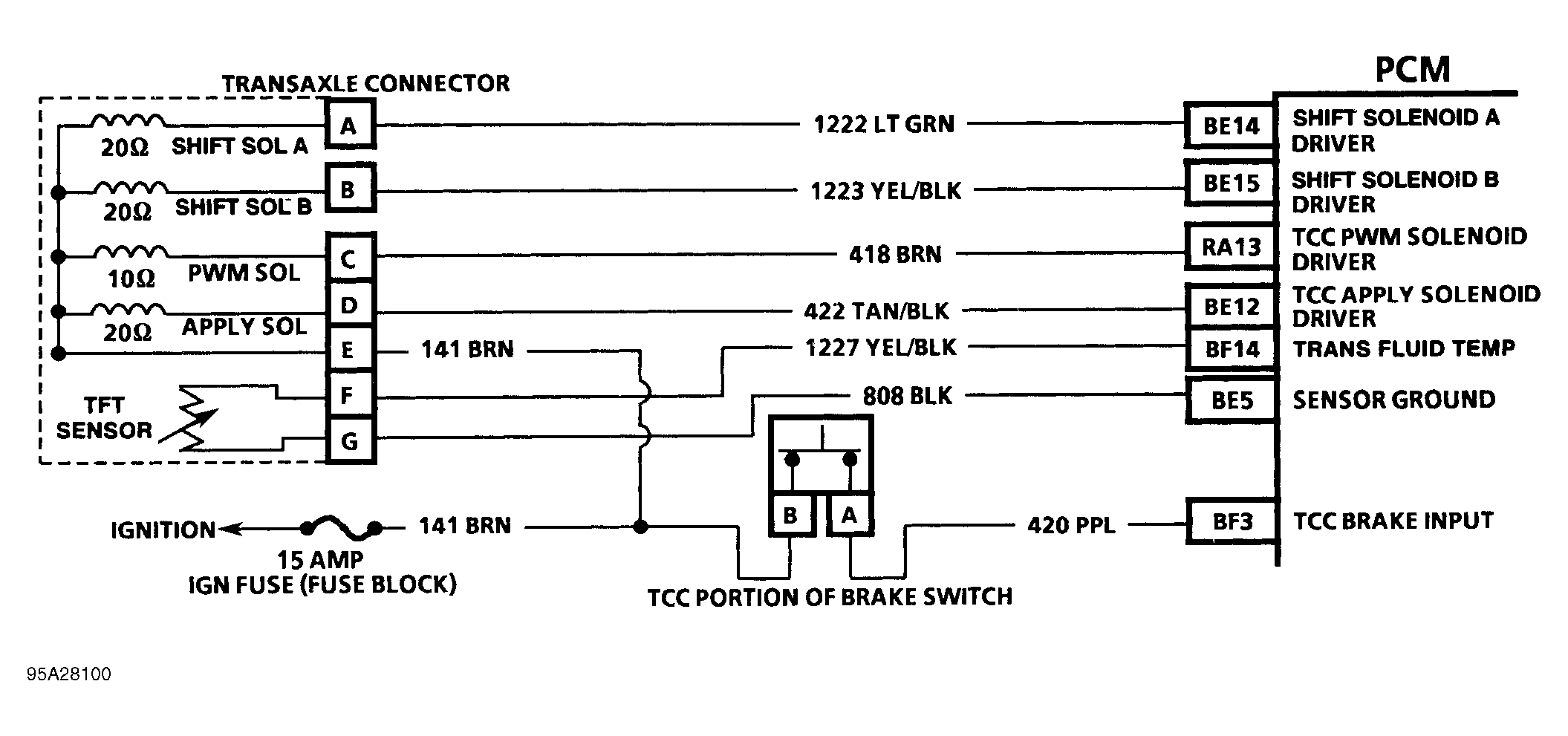

Fig 1: Code P0703 Schematic (3.8L FWD Van) TCC Brake Input Circuit
G95A28100
Fig 2: Code P0703 Flow Chart (3.8L FWD Van) TCC Brake Input Circuit
G94F35209
