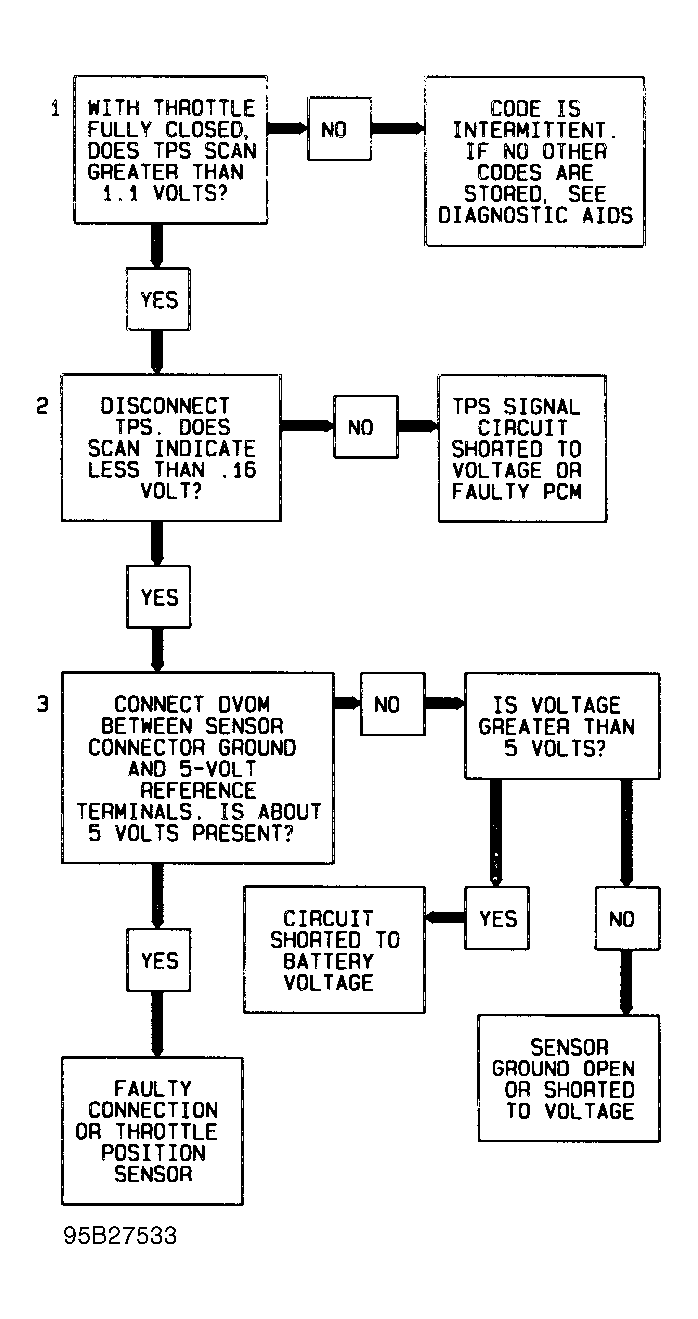

Diagnostic Aids
Tech 1 displays throttle position in volts. With closed throttle, ignition on, or at idle, voltage should be .20-.74 volt. If -voltage is not as specified, replace TP sensor. An open in sensor ground circuit will cause Codes P0112, P0712, P0117 and P0123 to set. Check for:
- Poor Connection Or Damaged Harness
Inspect control module harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wire connection, and damaged harness. - Intermittent Test
Monitor TP sensor voltage display on Tech 1 while moving related connectors and wiring harness. If failure is induced, display will change. This may assist in isolating location of malfunction. - TP Sensor Scaling
Observe TP sensor voltage display while depressing accelerator pedal with engine stopped and ignition on. Display should vary from closed throttle TP sensor voltage when throttle is closed (.20-.74 volt) to greater than 4 volts when throttle is held at WOT position.
