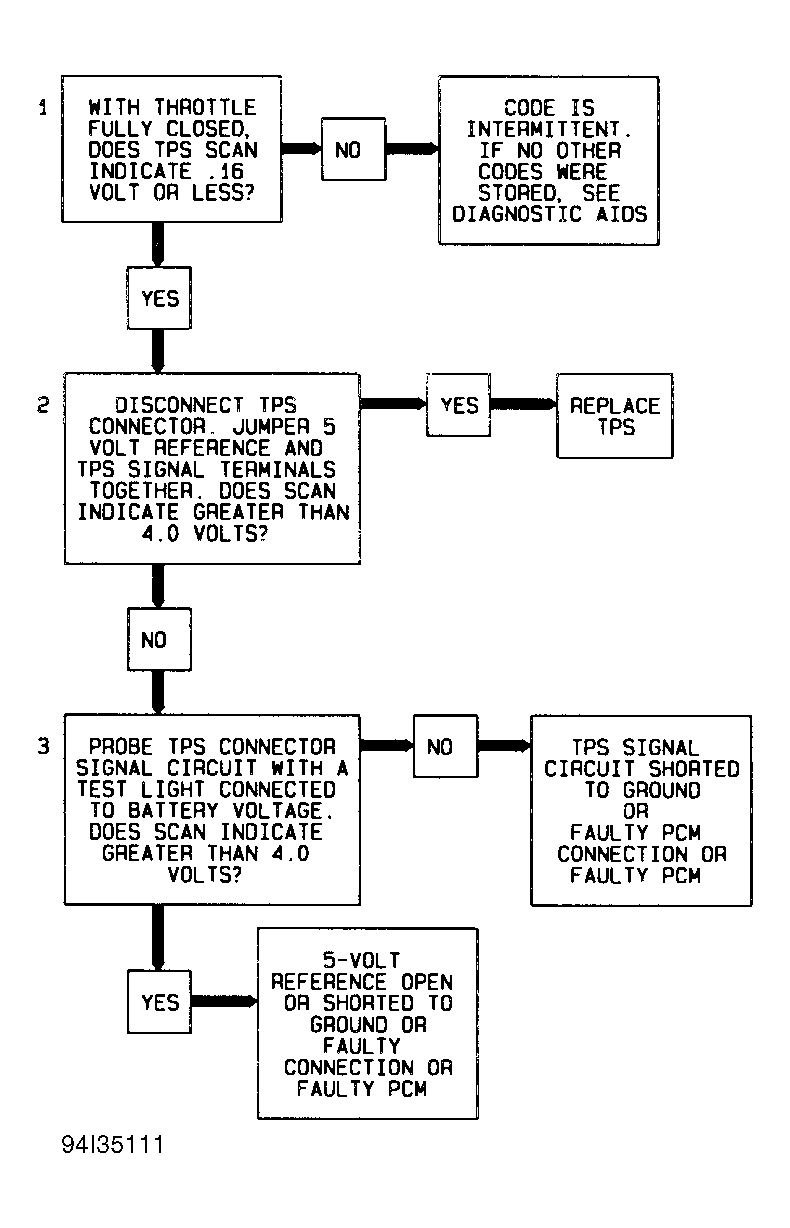

Diagnostic Aids
Tech 1 displays throttle position in volts. Voltage should increase steadily as throttle is moved toward WOT. An open or short to ground in reference and signal circuits will cause code to set. Check for:
- Poor Connection Or Damaged Harness Inspect control module harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wire connection, and damaged harness.
- Intermittent Test Monitor TP sensor voltage display on Tech 1 while moving related connectors and wiring harness. If failure is induced, display will change. This may assist in isolating location of malfunction.
- TP Sensor Scaling Observe TP sensor voltage display while depressing accelerator pedal with engine stopped and ignition on. Display should vary from closed throttle TP sensor voltage when throttle is closed (less than 1.25 volts) to greater than 4.5 volts when throttle is held at WOT position.
