Diagnostic Aids

An intermittent may be caused by a poor connection, rubbed through wire insulation or a wire broken inside insulation. Check for:

• Poor Connection Or Damaged Harness

  Inspect control module harness for short to ground in circuit, improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wire connection, and damaged harness.
• Intermittent Test

  Observe IAT on Tech 1 while moving related connectors and wiring harness with warm engine running. If failure is induced, IAT display will change to a 297°F (147°C) temperature reading. This may assist in isolating location of malfunction.

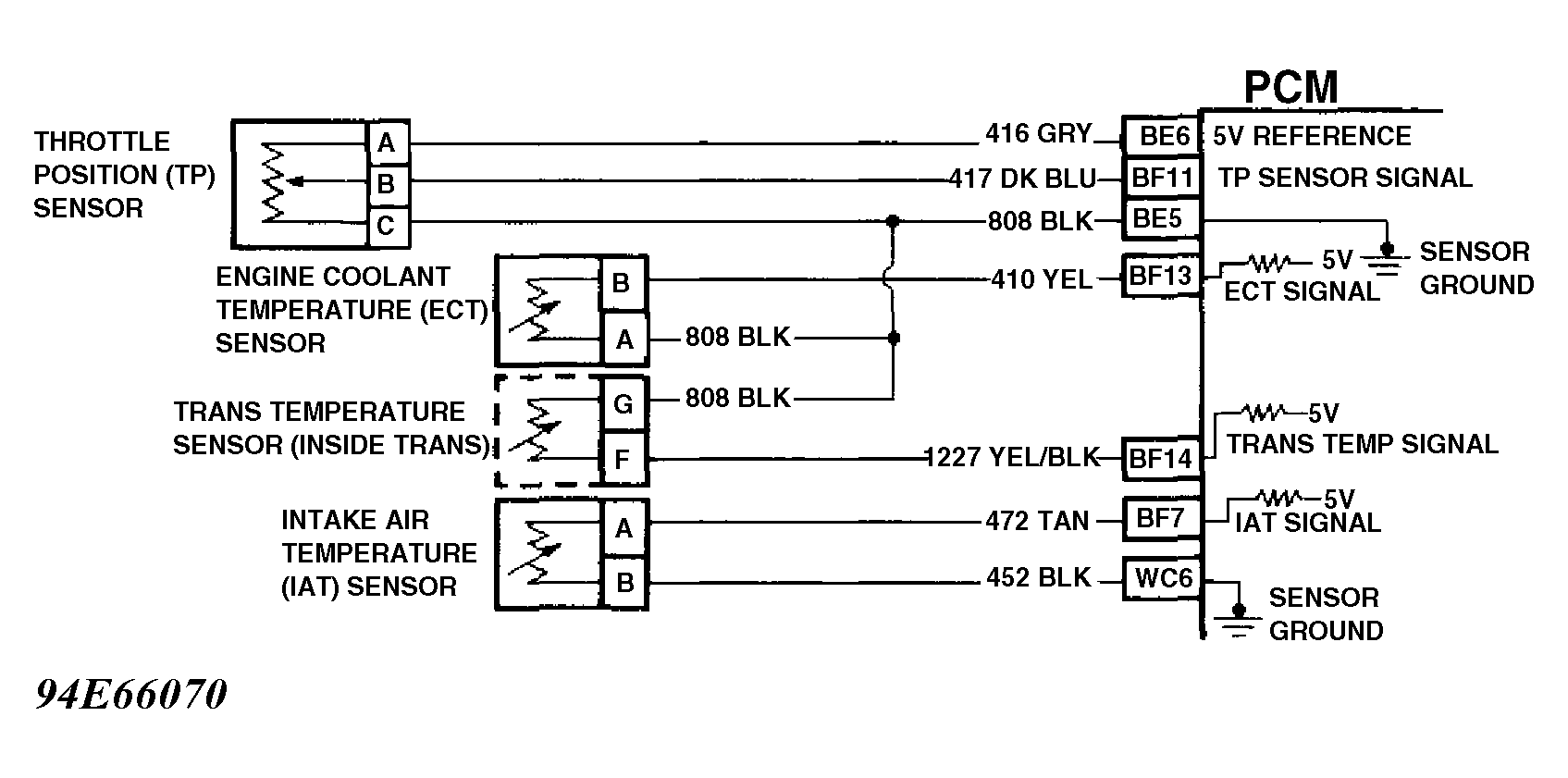

Fig 1: Code P0113 Schematic (3.8L FWD Van) IAT Sensor Circuit High Input

Fig 2: Code P0113 Flow Chart (3.8L FWD Van) IAT Sensor Circuit High Input
