Component Locations
ELECTRICAL COMPONENT LOCATION
| Component | Location | |
|---|---|---|
| ABS Light Driver Module | Behind Parking Brake Cable Bracket. | |
| Coolant Temp. Sending Unit | ||

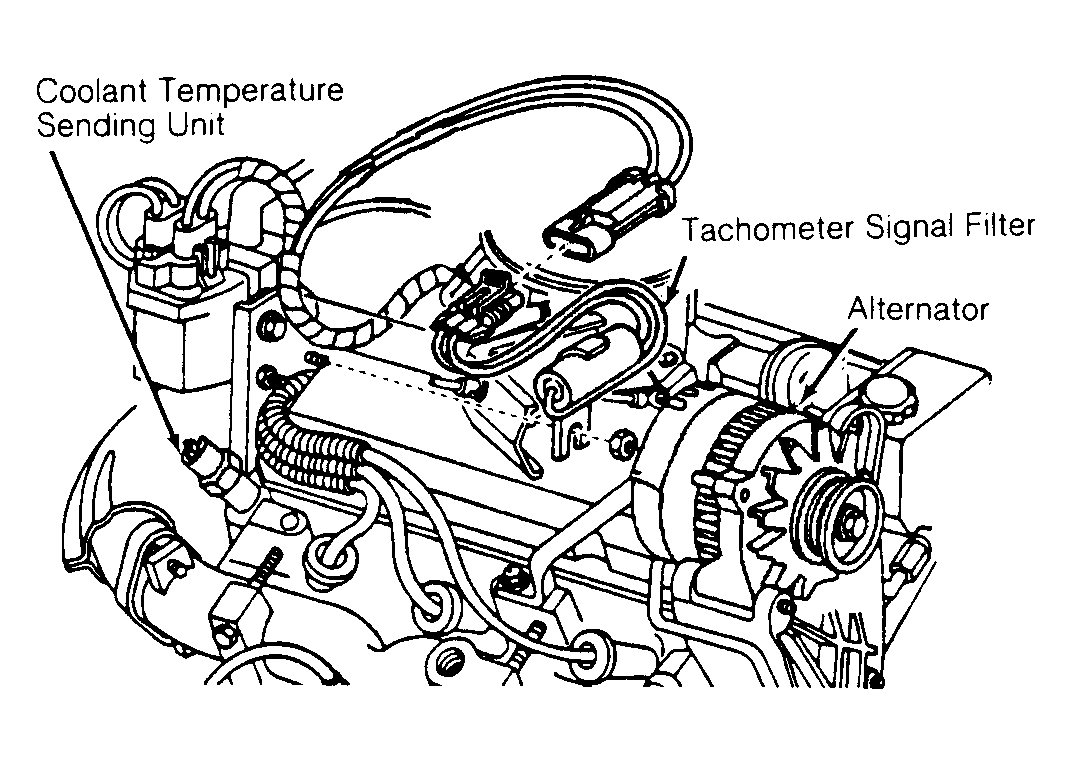

| 3.1L | Below Ignition Coil, On End Of Cylinder Head. See Figure . | |
| 3.8L | Between Throttle Body And Right Cylinder Head. | |
| Electronic Brake Control Module (EBCM) | Behind Instrument Panel, To Left Of Brake Pedal Bracket. | |
| Electronic Control Module (ECM - 3.1L) | Behind Right End Of Instrument Panel, Forward Of Convenience Center. | |
| Fuse Block | Behind Left End Of Instrument Panel. | |
| Oil Pressure Sending Unit | ||
| 3.1L | On Left Side Of Cylinder Block, Near Oil Filter. | |
| 3.8L | At Front Of Engine, Near Oil Filter. | |
| Parking Brake Switch | On Parking Brake Bracket. | |
| Powertrain Control Module (PCM - 3.8L) | Behind Right End Of Instrument Panel, Forward Of Convenience Center. | |
| Tachometer Signal Filter | On Ignition Coil Bracket. See Figure . | |
| Turn Signal Flasher | On Instrument Panel Lower Trim Pad, To Right Of Steering Column. | |
| Vehicle Speed Sensor (VSS) | On Transaxle, At End Of Right Extension Housing. | |
| VSS Buffer (3.1L) | Behind Right End Of Instrument Panel, Above Convenience Center. | |
