No Communication With Powertrain Control Module - 3.1L
No Communication With Powertrain Control Module - 3.1L

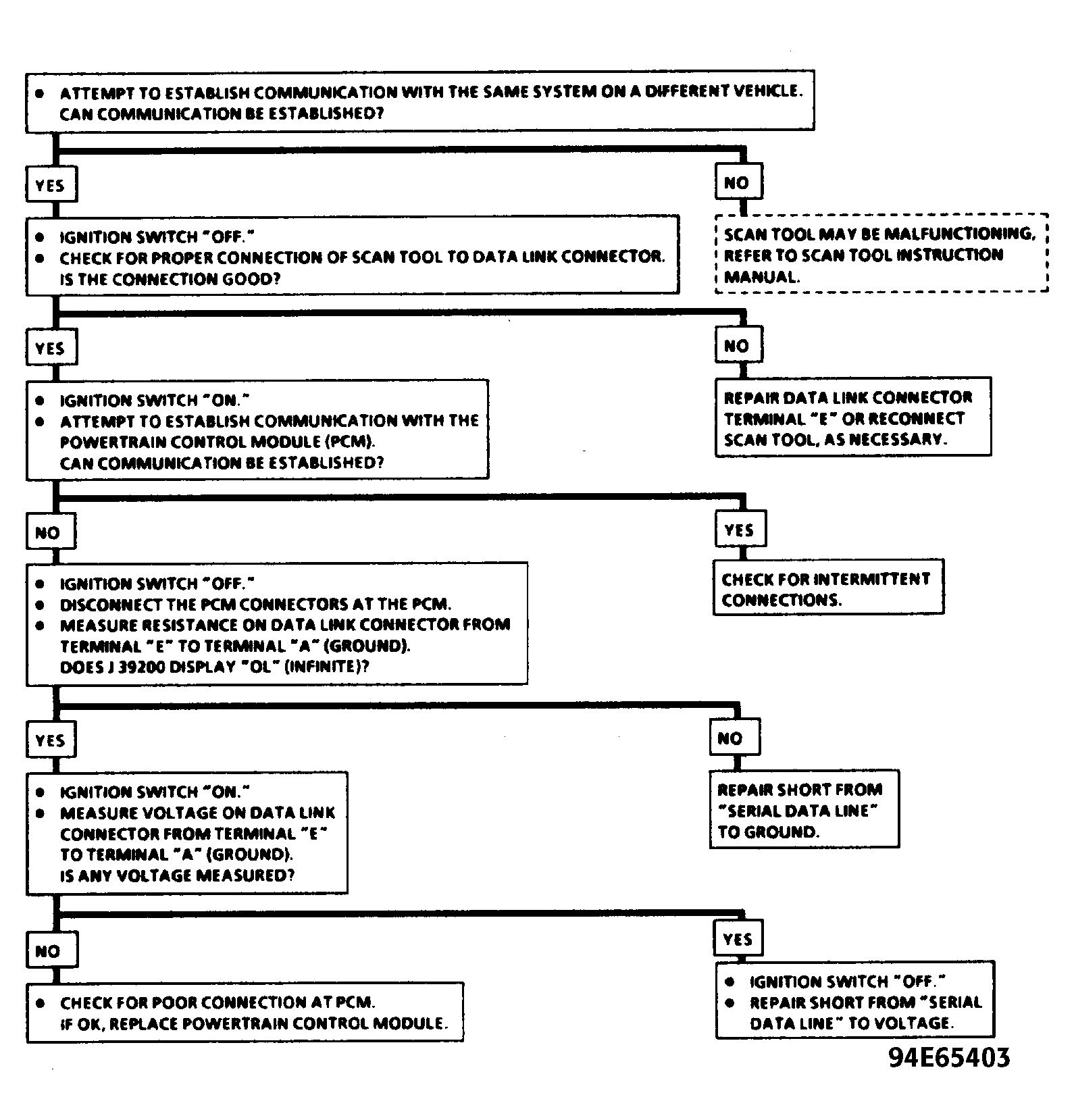

Fig 1: Data Link Connector Diagnosis - No Communication With Powertrain Control Module - 3.1L
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
