Code 32 Lateral Accelerator Switch Error

CCR module monitors voltage level of lateral acceleration switch signal. If switch circuit is shorted to battery or ground, or if it is open (disconnected or broken wire), CCR will detect an invalid voltage level. When this occurs, CCR module records error (sets Code 32), turns on select switch LEDs and disables lateral acceleration switch input until a valid voltage level is detected.

Fig 1: CODE 32 Schematic

Courtesy of GENERAL MOTORS CORP.

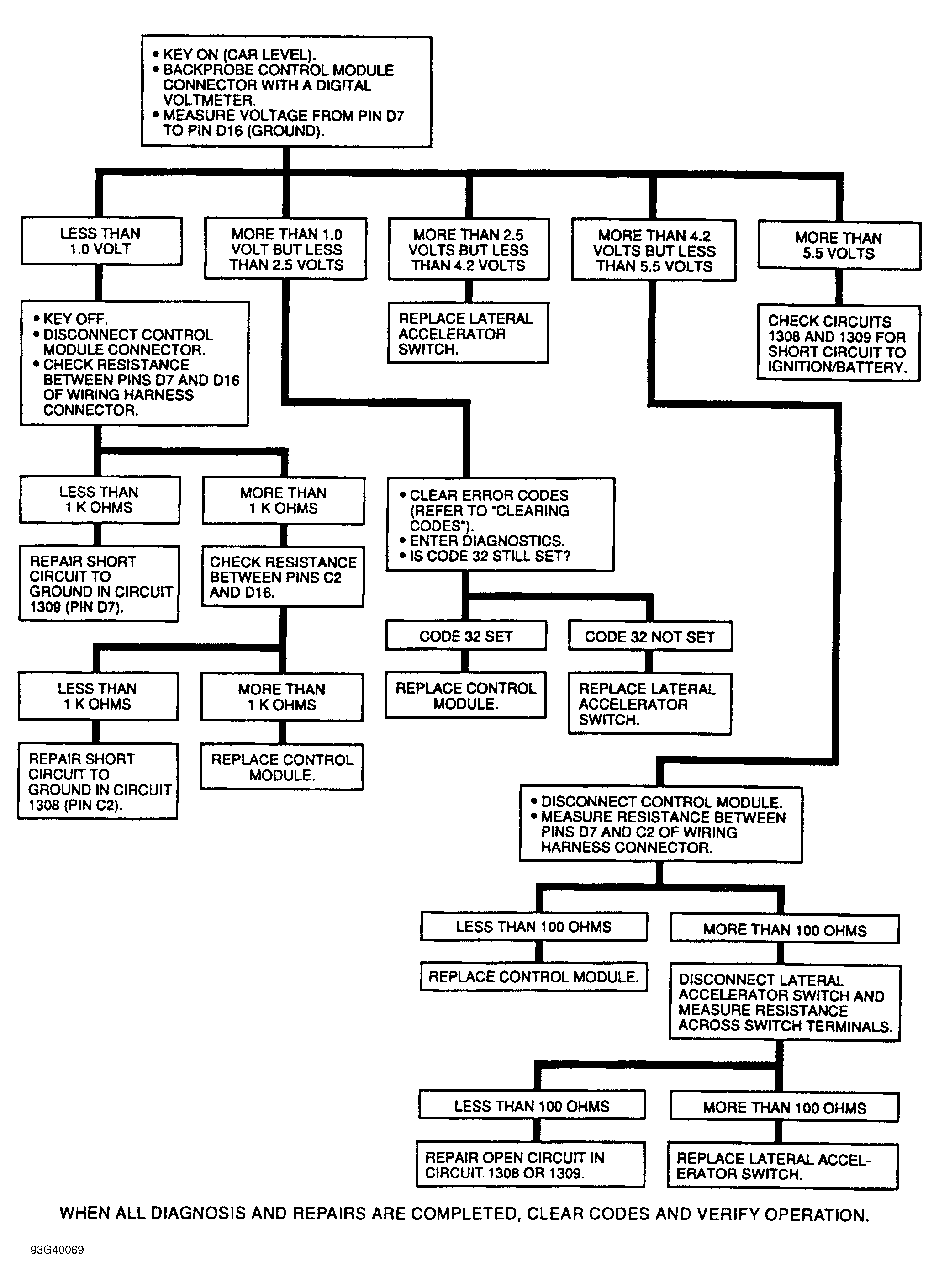

Fig 2: CODE 32 Flow Chart

Courtesy of GENERAL MOTORS CORP.
