Test Description

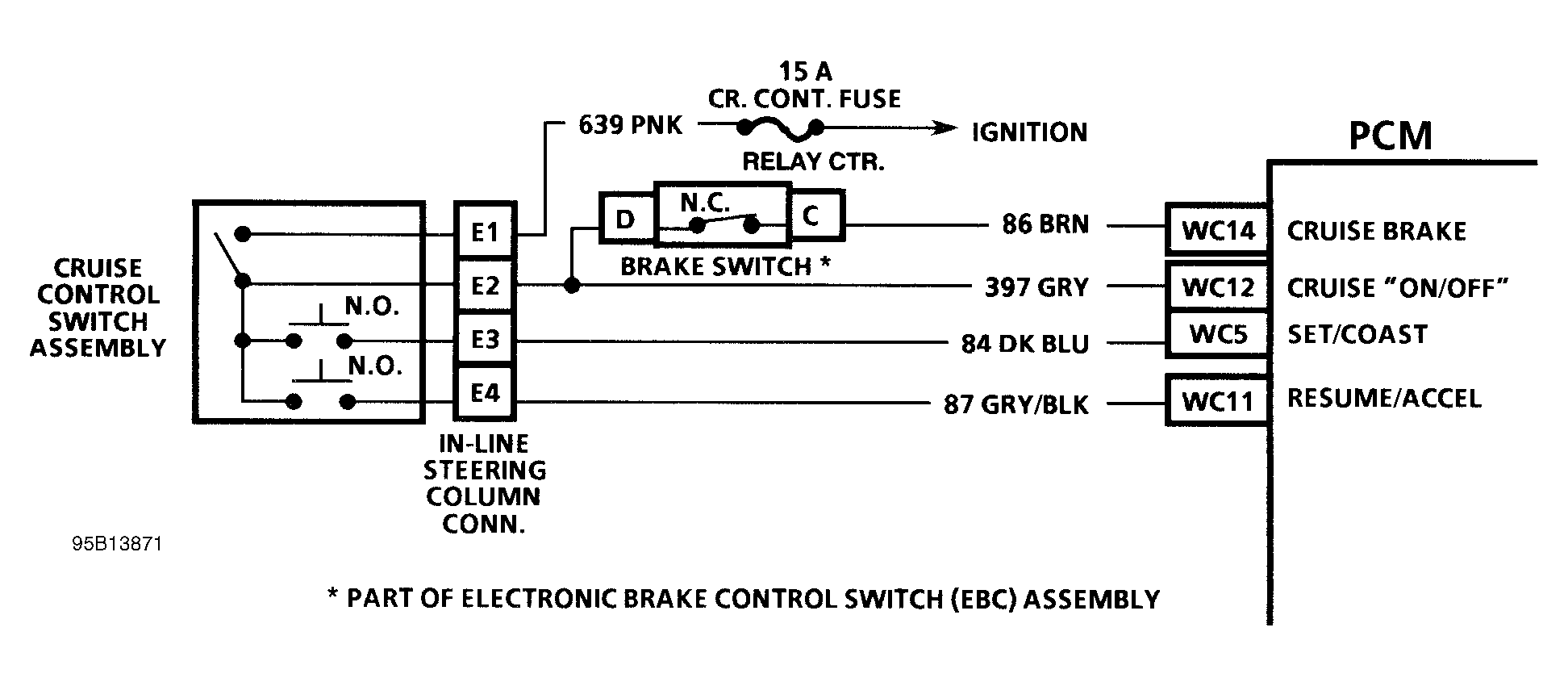

Fig 1: Code P1567 Schematic (3.8L) Cruise Switches Circuit

G95B13871

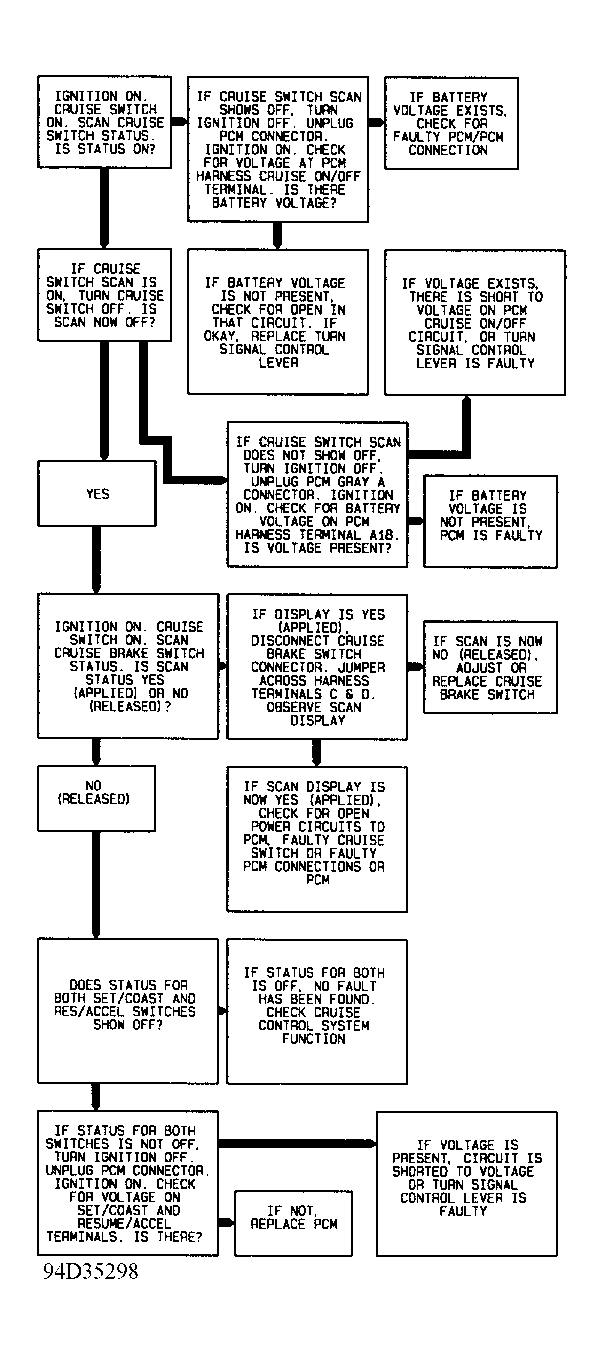

Fig 2: Code P1567 Diagnostic Flow Chart (3.8L) Cruise Switches Circuit

G94D35298
