Diagnostic Aids

With ignition on and test light between terminals "T" and "E". Wiggle and manipulate harness. If light goes on and off, intermittent has been located.

Fig 1: Code 88 Schematic (4.0L) TCC Not Disengaged

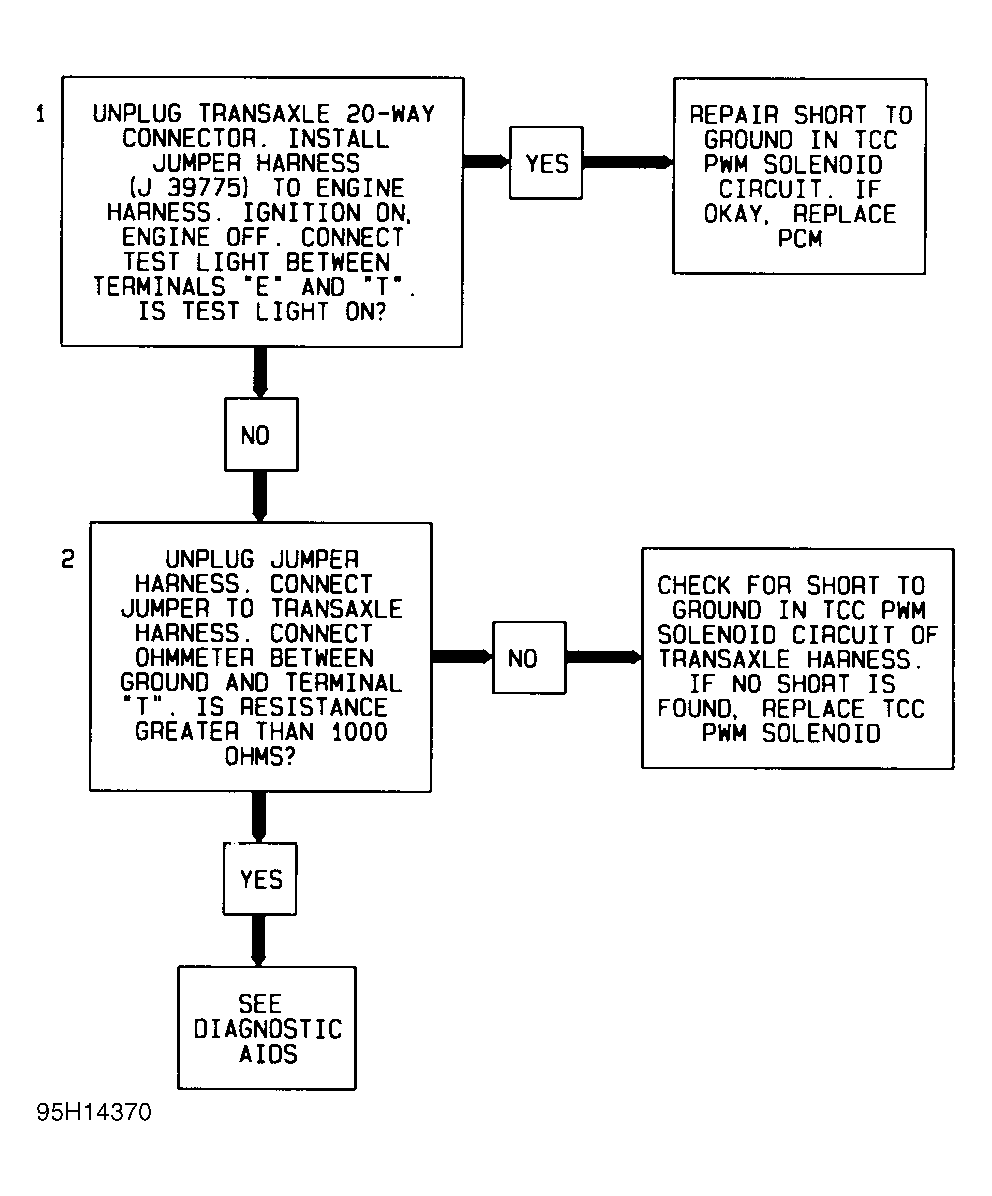

Fig 2: Code 88 Diagnostic Flow Chart (4.0L) TCC Not Disengaged
