Code 60, P/N Input With Cruise Control Engaged

Code will set if cruise control is engaged and PM detects transaxle in Park or Neutral.

1. Checks for other codes stored. Additional codes should be repaired first.
2. Checks transaxle range switch.
3. Checks wiring on range signals and range switch.

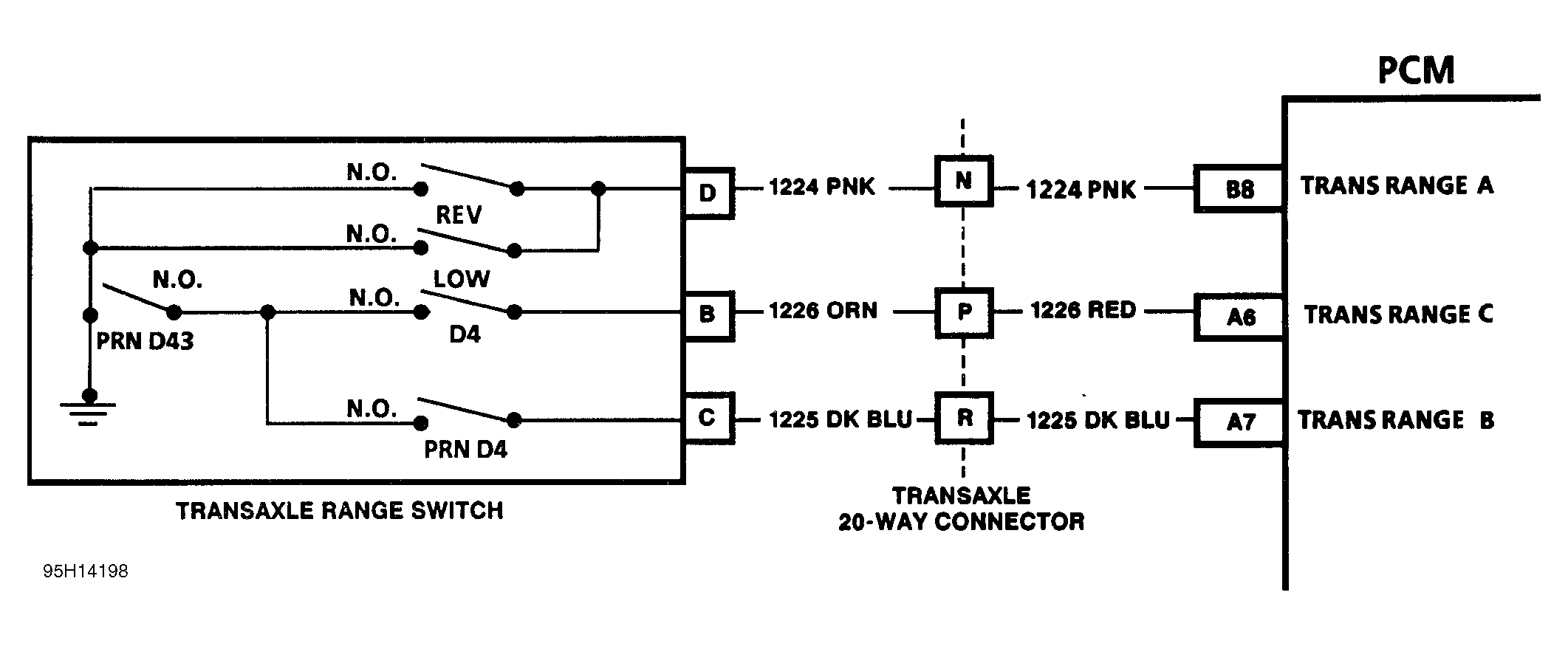

Fig 1: Code 60 Schematic (4.0L) P/N Input With Cruise Control Engaged

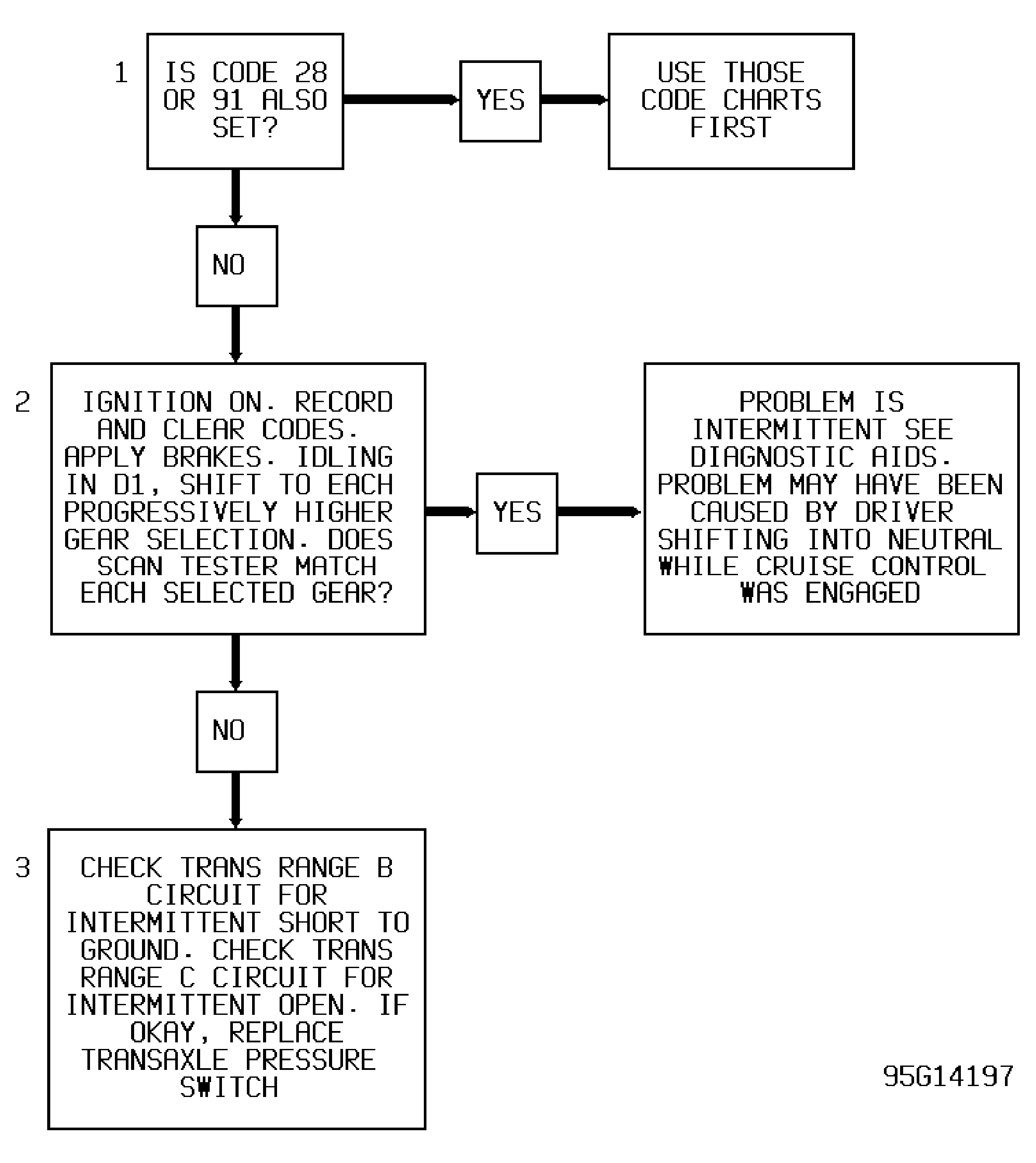

Fig 2: Code 60 Diagnostic Flow Chart (4.0L) P/N Input With Cruise Control Engaged
