Data Line Diagnosis

To perform diagnosis, see Fig 1 and Fig 2 .

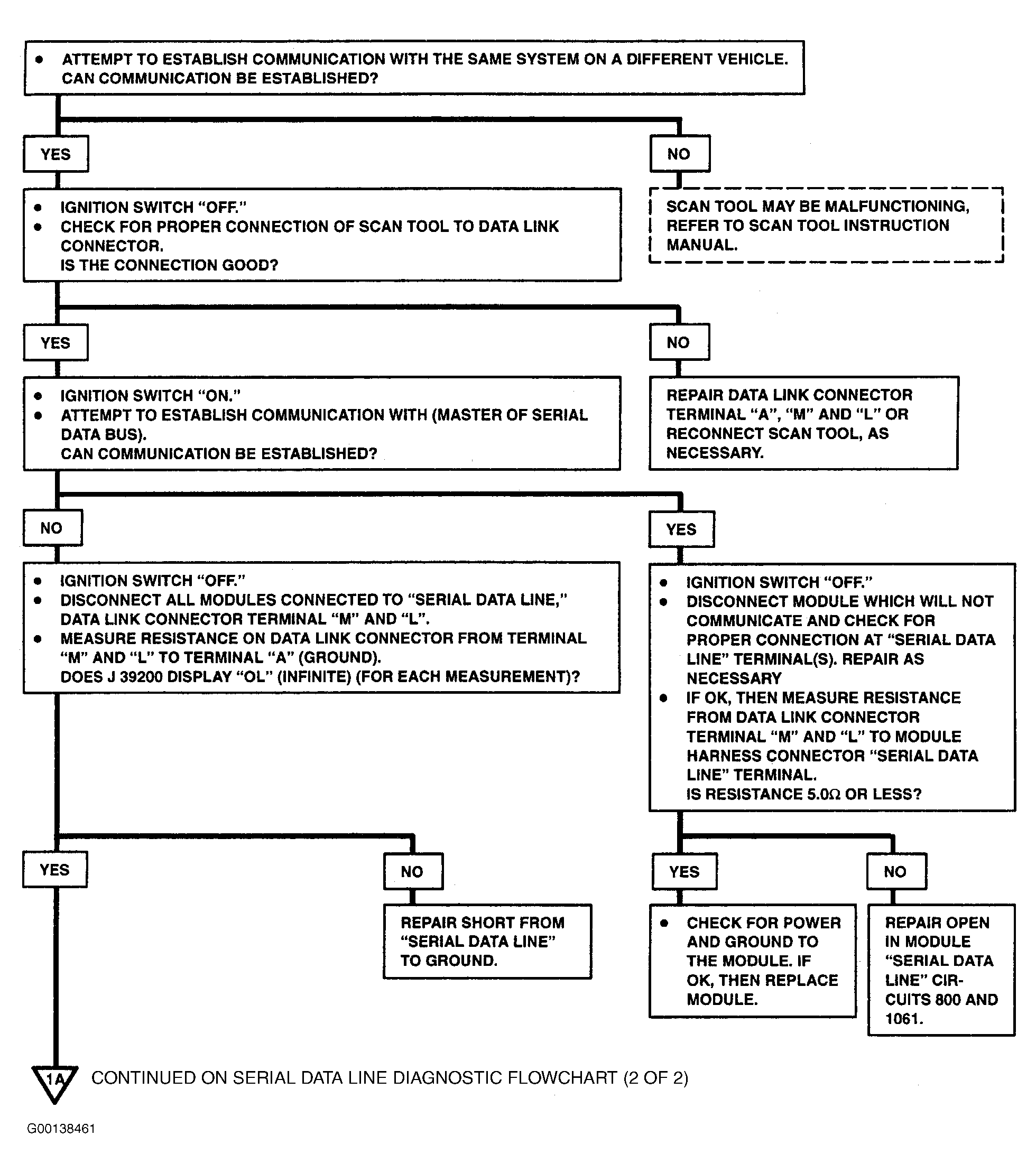

Fig 1: Serial Data Line Diagnostic Flowchart (1 Of 2)
G00138461Courtesy of GENERAL MOTORS CORP.

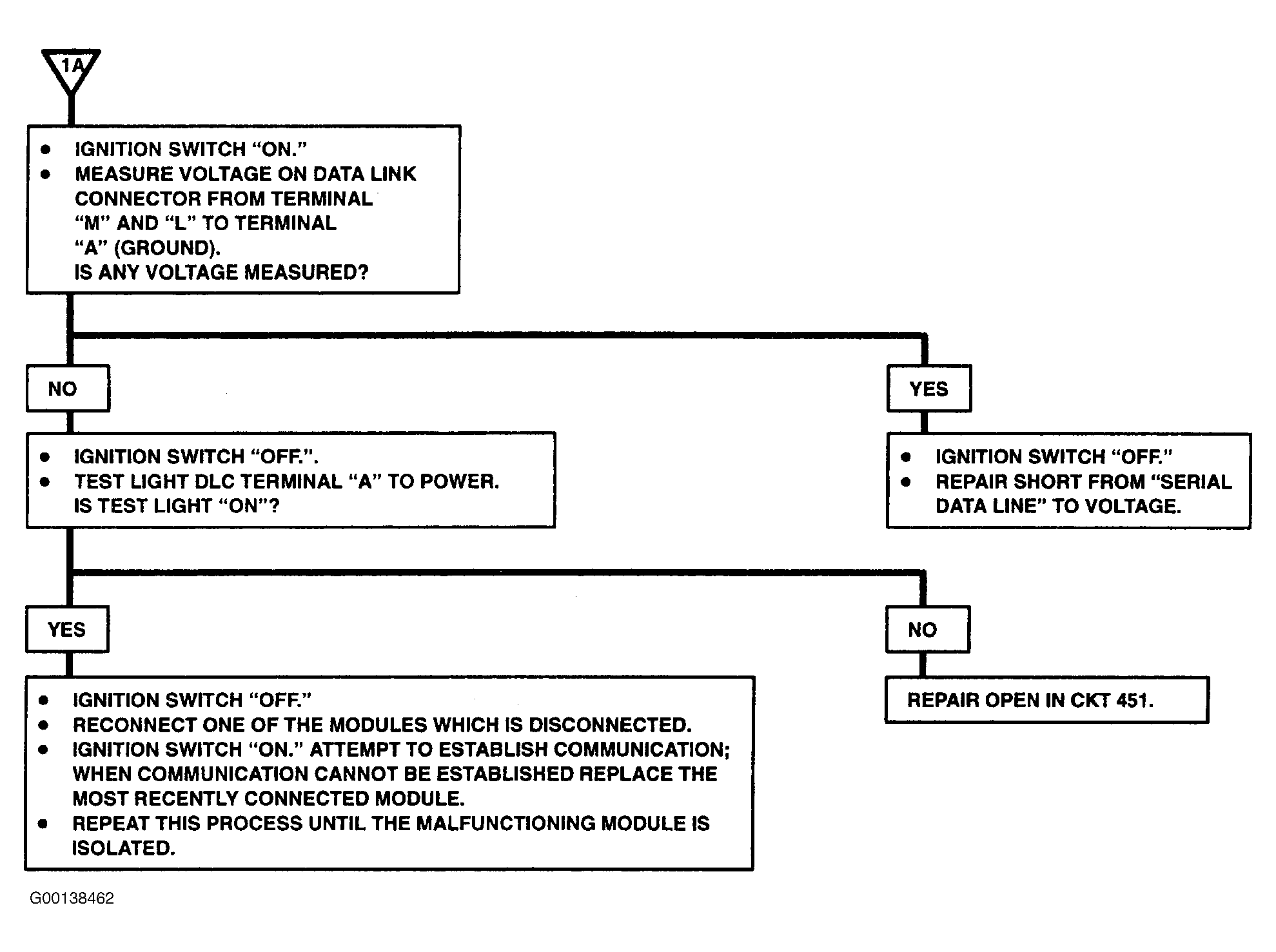

Fig 2: Serial Data Line Diagnostic Flowchart (2 Of 2)
G00138462Courtesy of GENERAL MOTORS CORP.
