Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

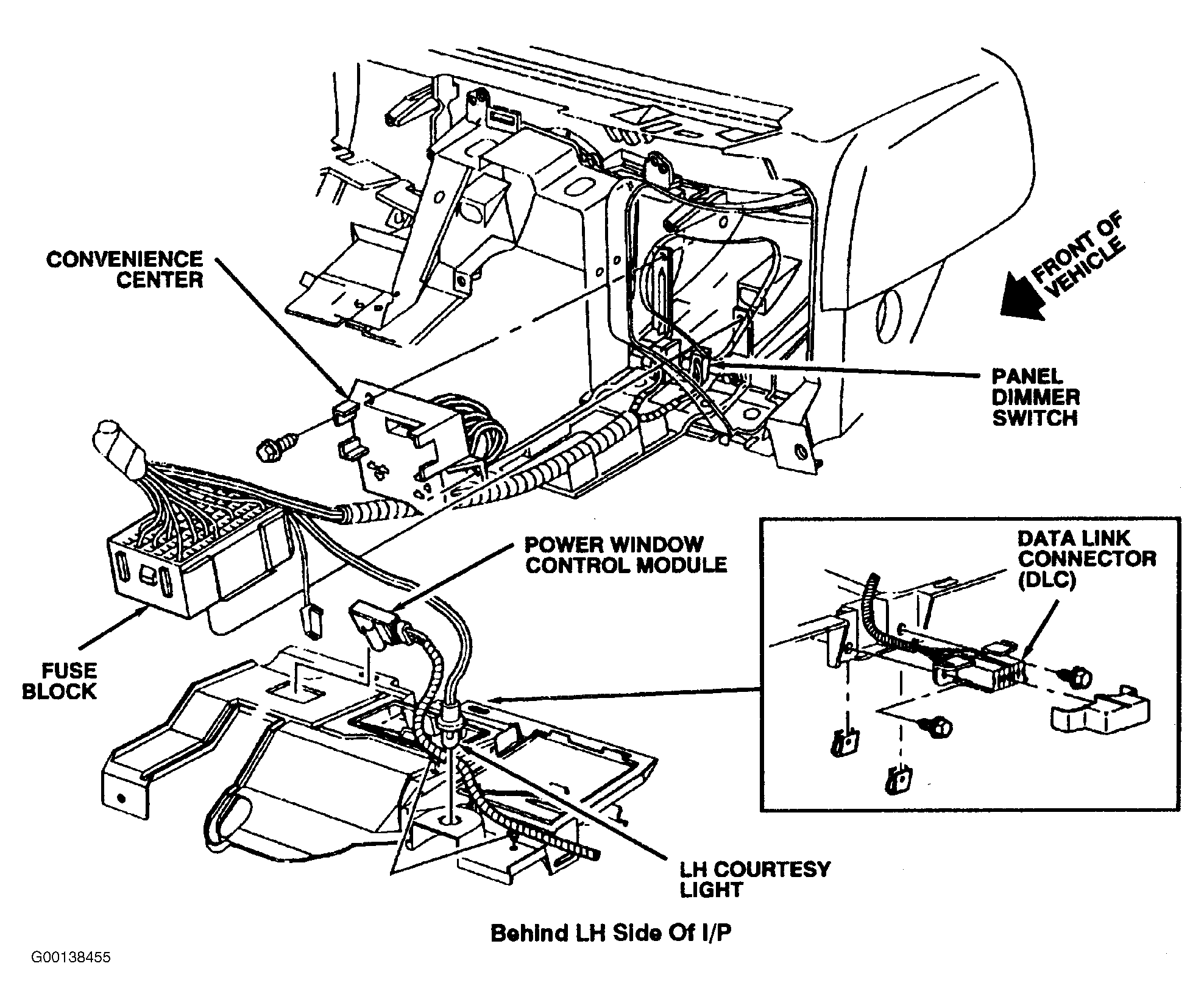

| Data Link Connector (DLC) | Lower Driver Side Hush Panel. See Fig 1 |

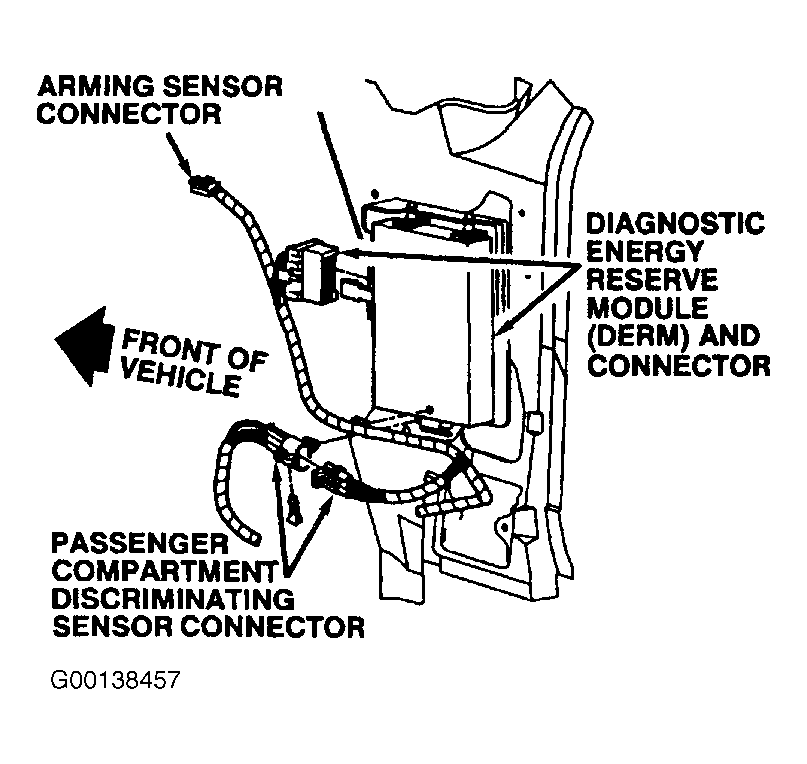

| Diagnostic Energy Reserve Module (DERM) | Behind Passenger Side Front Kick Panel. See Fig 2 |

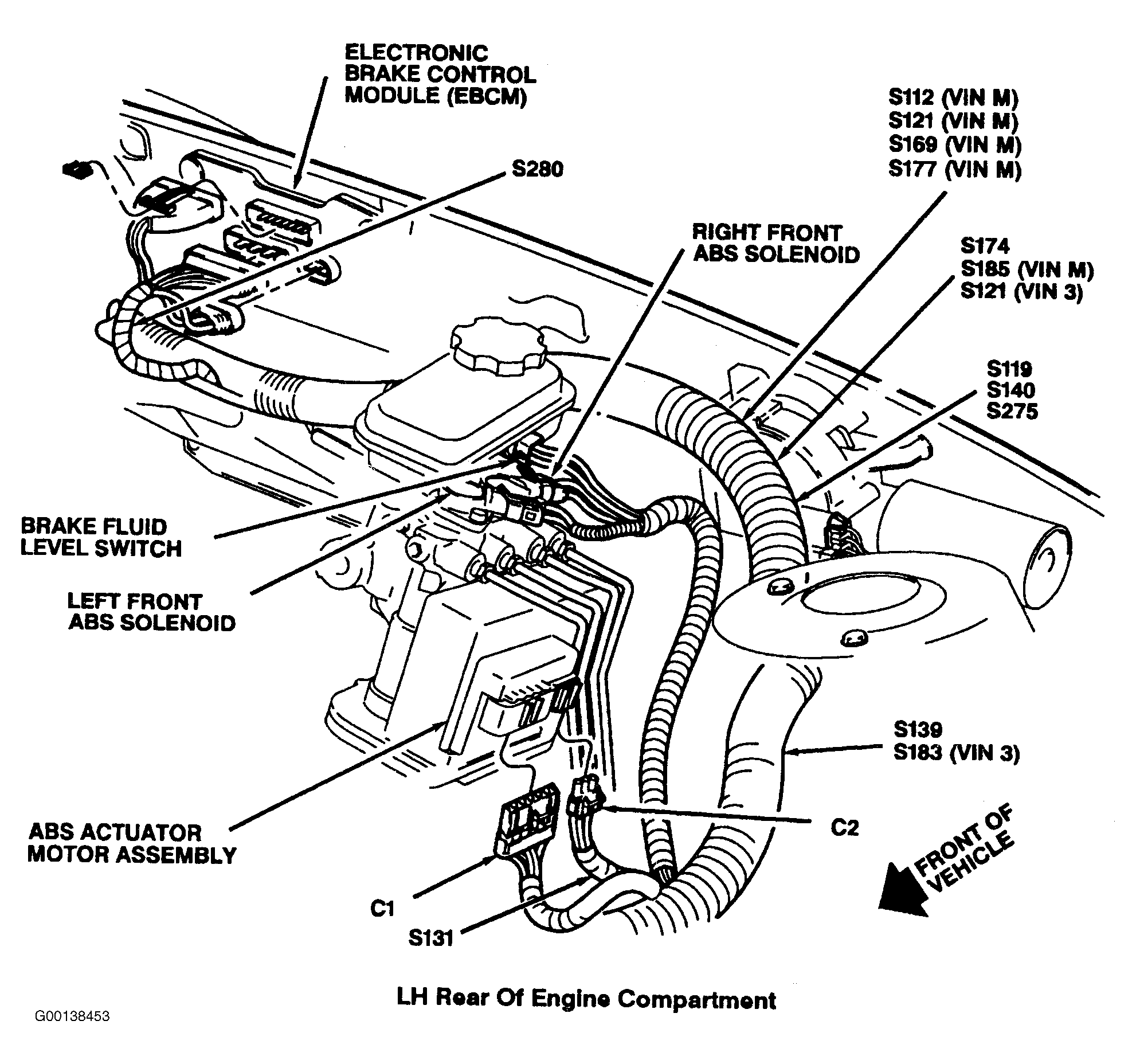

| Electronic Brake Control Module (EBCM) | Rear Of Engine Compartment At Center Dash Panel. See Fig 3 |

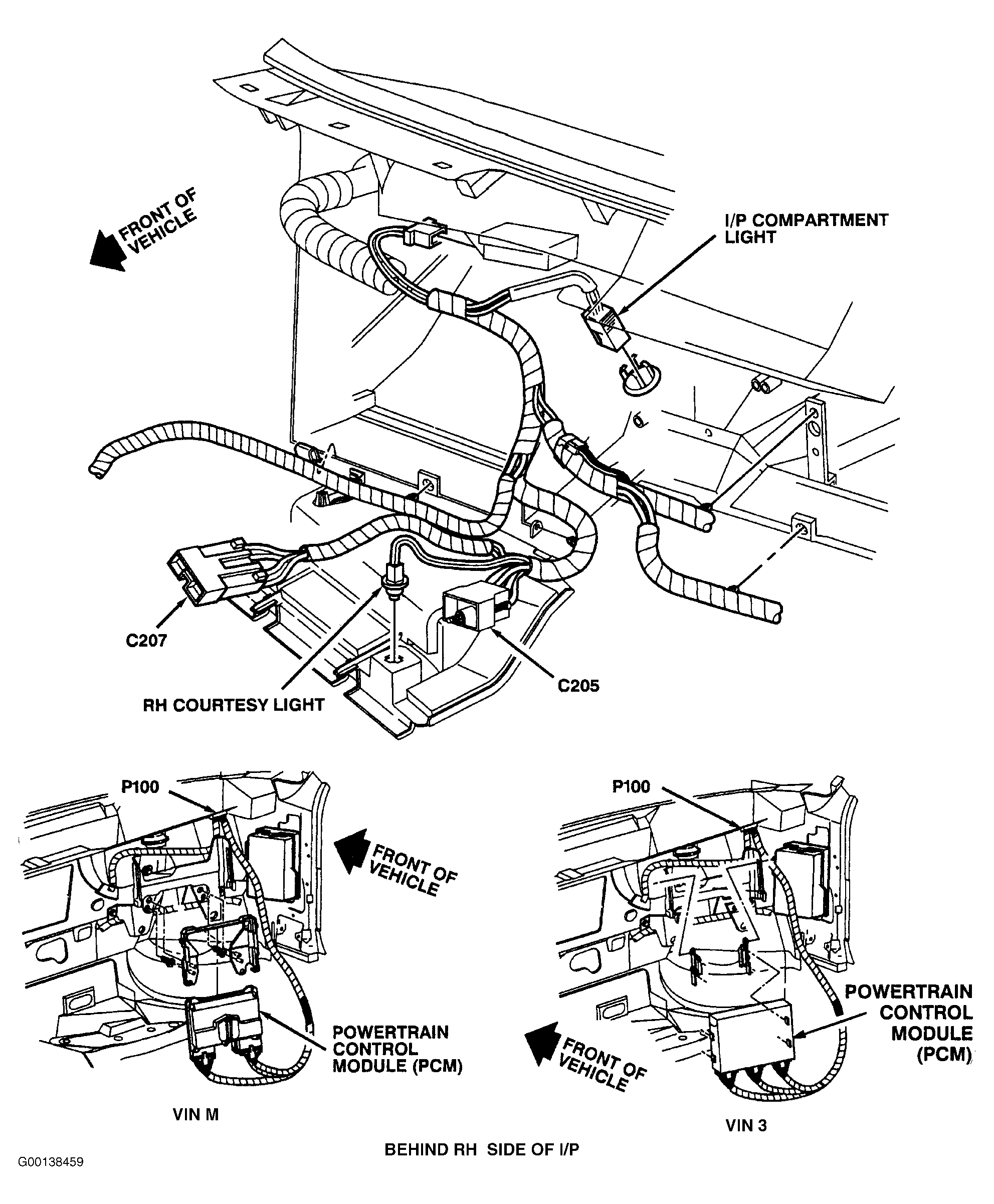

| Engine Control Module (ECM) | Under Passenger Side Of Instrument Panel. See Fig 4 |
| C207 (23 Terminals) | Driver Rear Corner Of Engine Compartment. See Fig 4 |

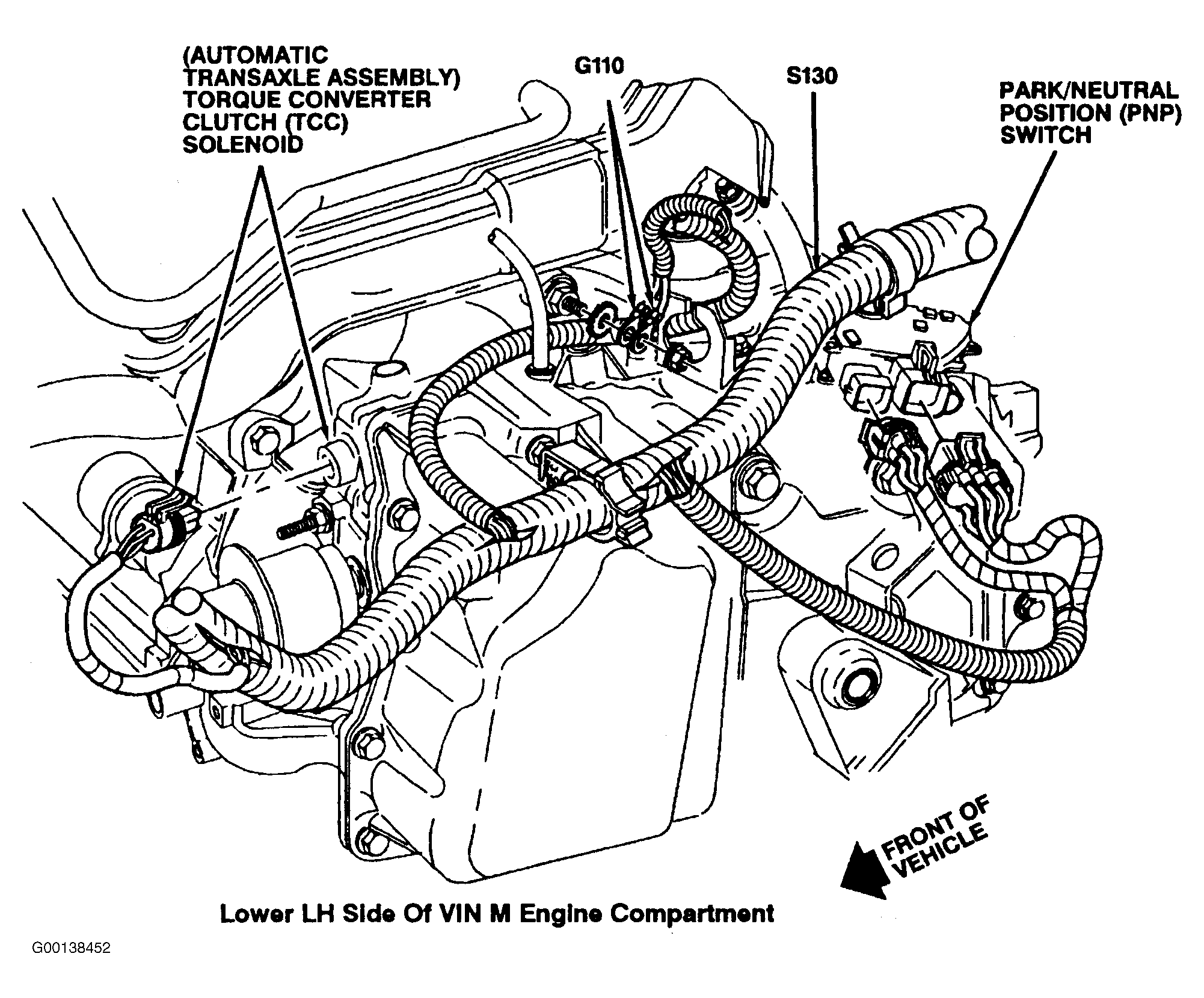

| G110 (VIN M) | Driver Side Of Engine Compartment. See Fig 5 |
| G110 (VIN 3) | Lower Driver Front Of Engine Compartment. See Fig 5 |
| S113 | Engine Harness, Passenger Rear Of Dash Panel. See Fig 5 |

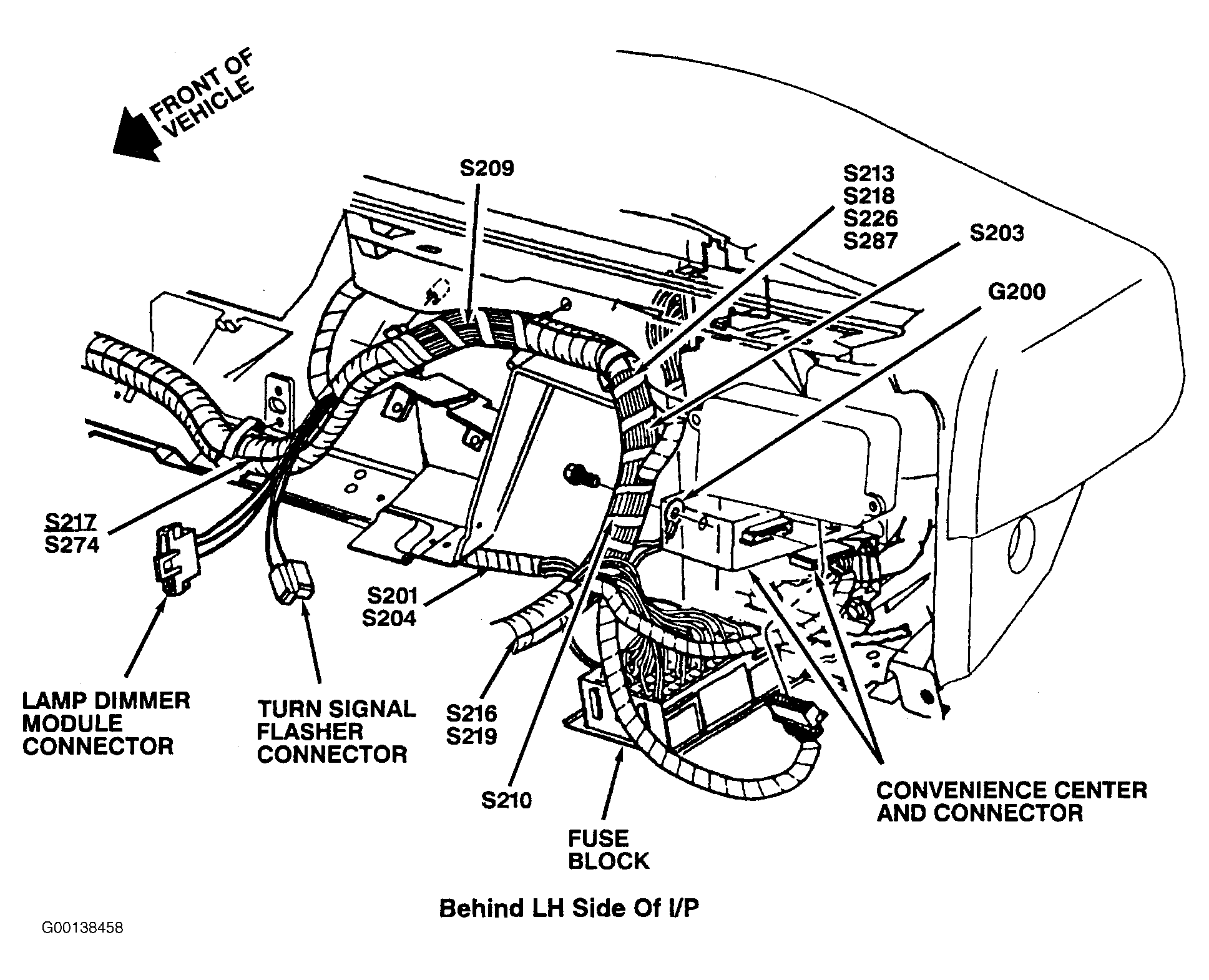

| S217 | Instrument Panel Harness, Lower Driver Side Of Steering Column. See Fig 6 |
| S277 | Engine Harness, Passenger Rear Of Engine Compartment. See Fig 3 |
