Component Locations

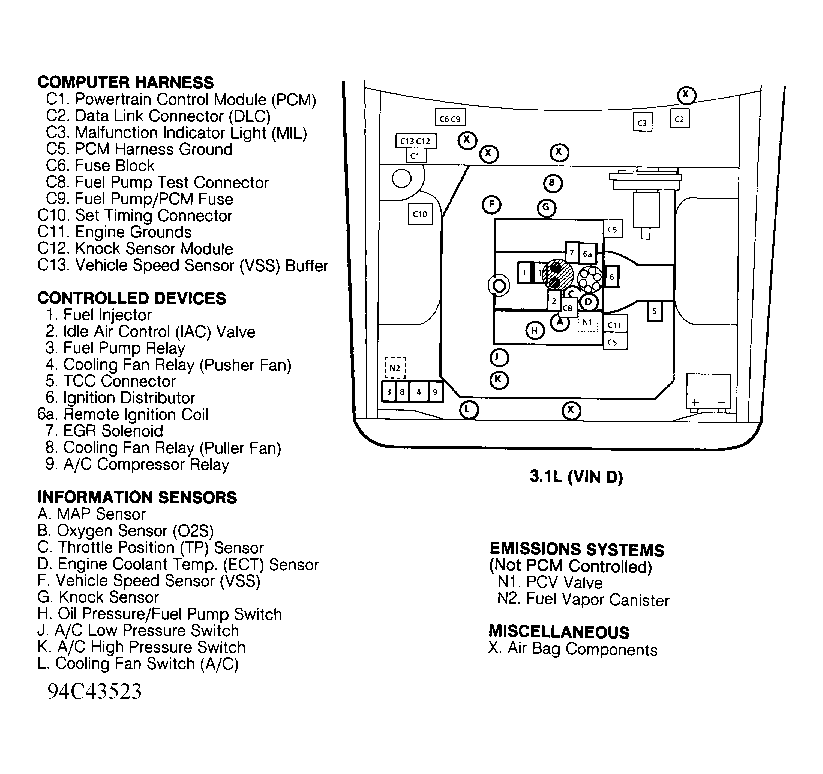

Fig 1: Component Location (3.1L VIN D)

G94C43523

Courtesy of GENERAL MOTORS CORP.

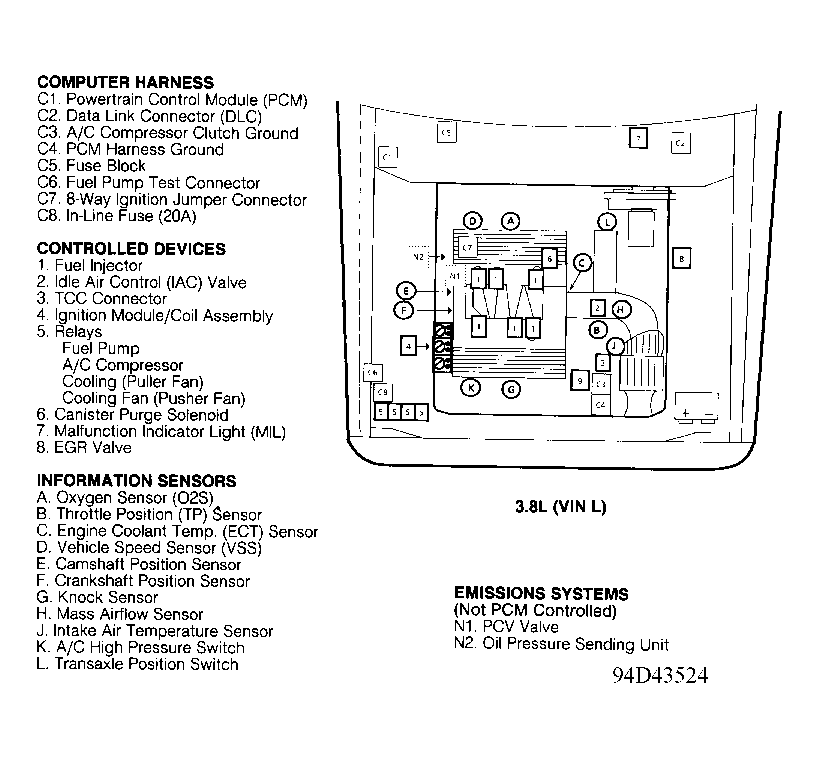

Fig 2: Component Location (3.8L VIN L)

G94D43524

Courtesy of GENERAL MOTORS CORP.
