Diagnostic Aids

An intermittent may be caused by a poor connection, rubbed through wire insulation or a wire broken inside insulation. Check for:

• Poor Connection Or Damaged Harness

  Inspect wiring harness for an open or short to ground in serial data circuit, improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wire connection and damaged harness.
• Intermittent Test

  Observe ABS data on Tech 1 while moving related connectors and wiring harness. If failure is induced, Tech 1 data will stop updating. This may assist in isolating the location of the malfunction.

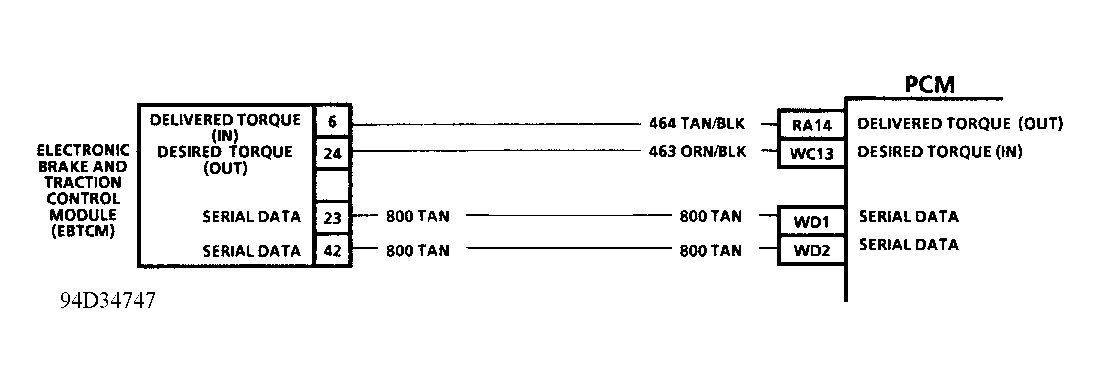

Fig 1: Code P1573 Schematic (3.8L) Traction Control Fault Loss Of ABS/TCS Serial Data

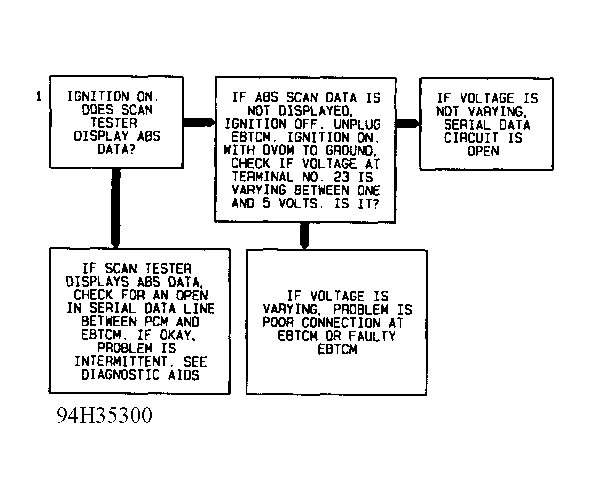

Fig 2: Code P1573 Flow Chart (3.8L) Traction Control Fault Loss Of ABS/TCS Serial Data
