Diagnostic Aids

An intermittent may be caused by a poor connection, rubbed through wire insulation or a wire broken inside the insulation. Check for:

• Poor Connection Or Damaged Harness

  Inspect PCM harness for short to ground in circuit No. 472 (Tan wire), improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wire connection, and damaged harness.
• Intermittent Test

  Observe IAT on Tech-1 while moving related connectors and wiring harness with warm engine running. If failure is induced, IAT display will change to a 297°F (147°C) temperature reading. This may assist in isolating the location of the malfunction.

Fig 1: Code P0113 Schematic (3.8L) IAT Sensor Circuit (High Temperature Indicated)

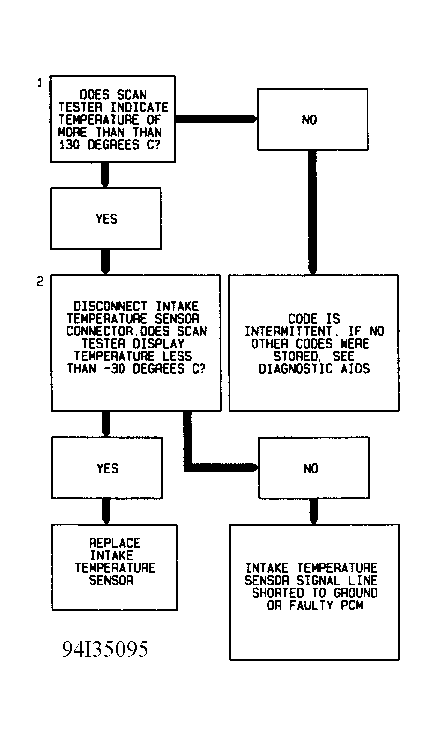

Fig 2: Code P0113 Flow Chart (3.8L) IAT Sensor Circuit (High Temperature Indicated)
