Instrument Panel - Analog: Testing: Notes

NOTE: When testing suspect gauges/indicators, refer to appropriate illustrations to identify instrument cluster terminals. See Figs. 1-3.

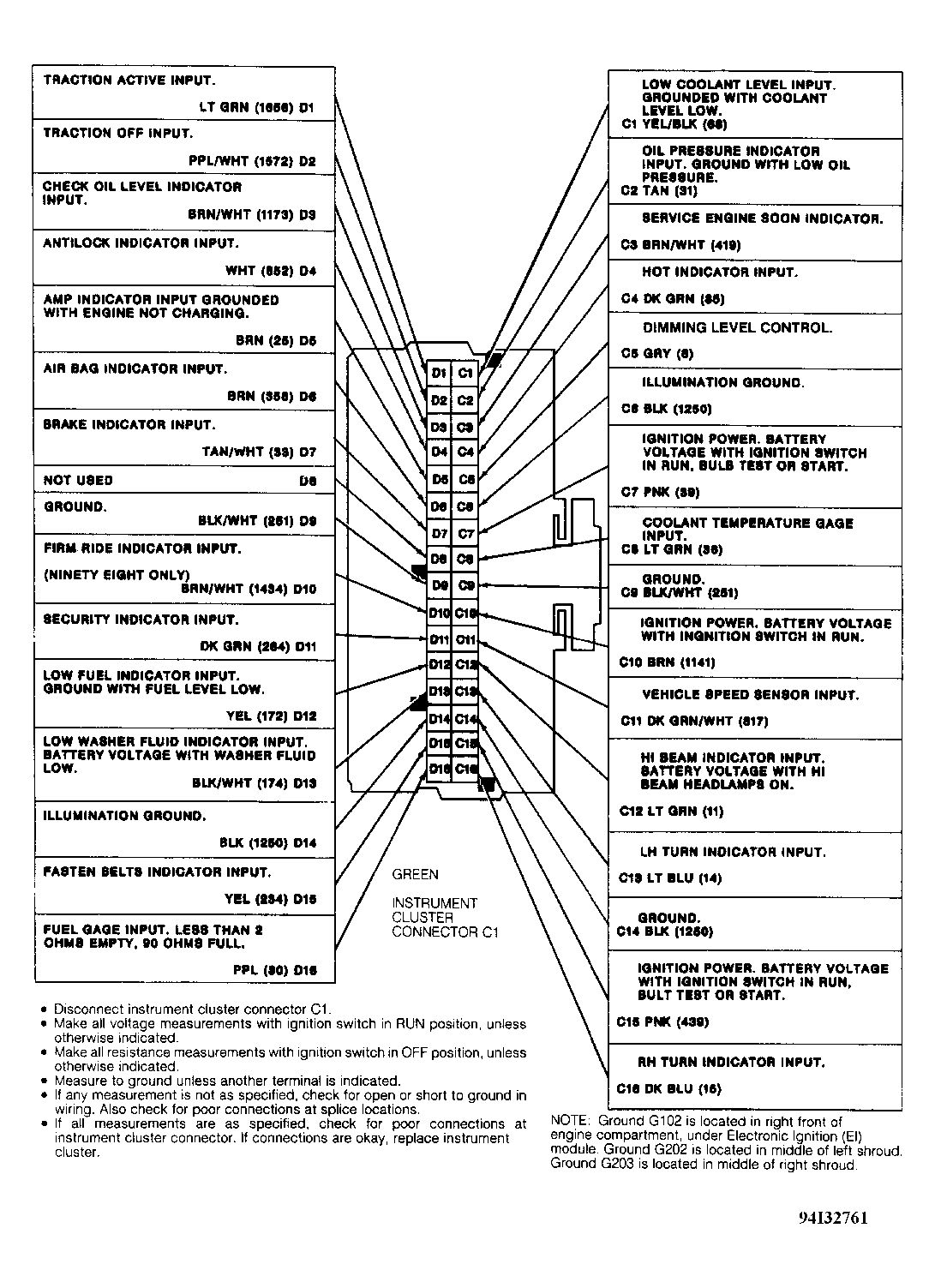

Fig 1: Testing Instrument Indicators Cluster Connector C1 Terminals
G94I32761Courtesy of GENERAL MOTORS CORP.

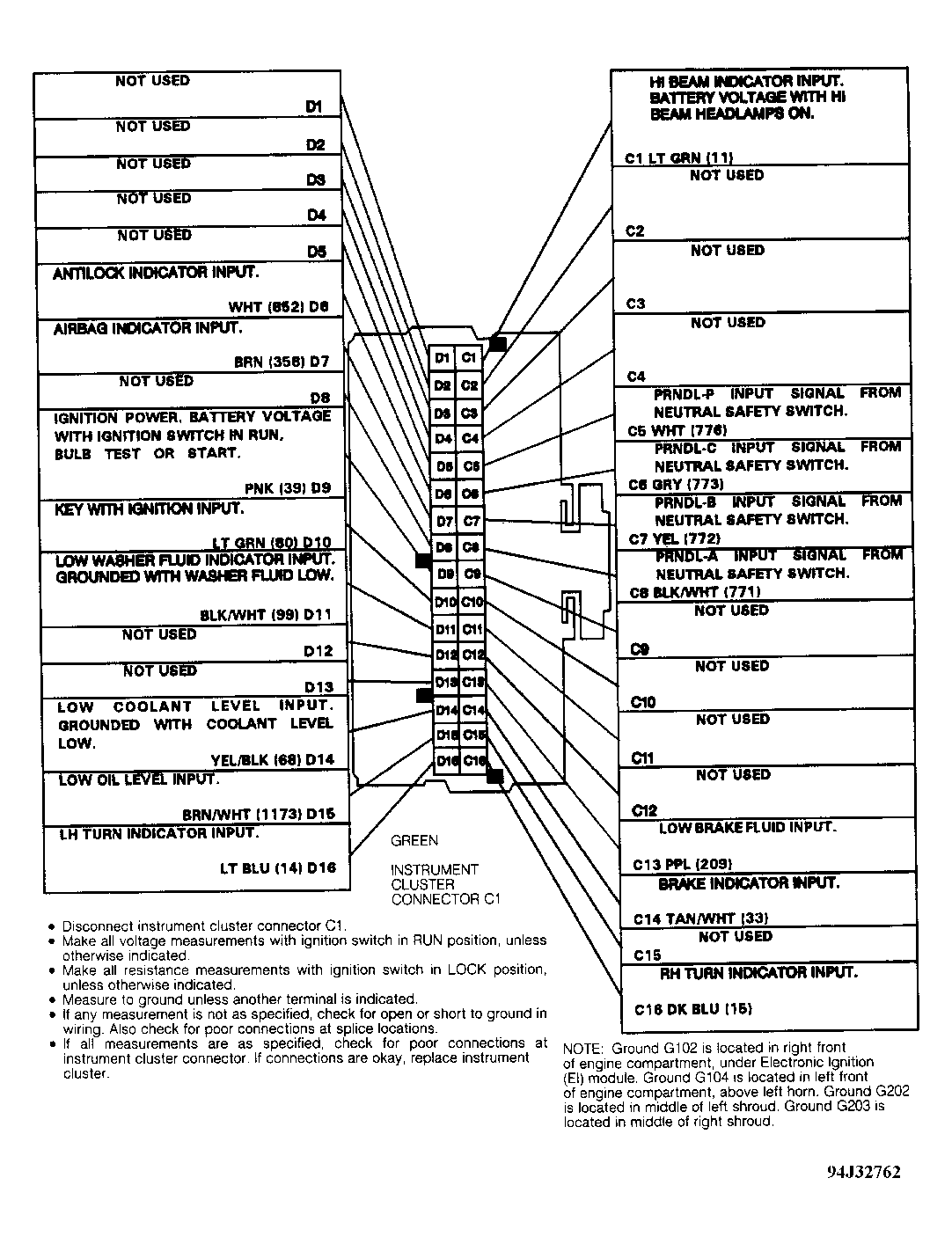

Fig 2: Testing Instrument Gauges Cluster Connector C1 Terminals
G94J32762Courtesy of GENERAL MOTORS CORP.

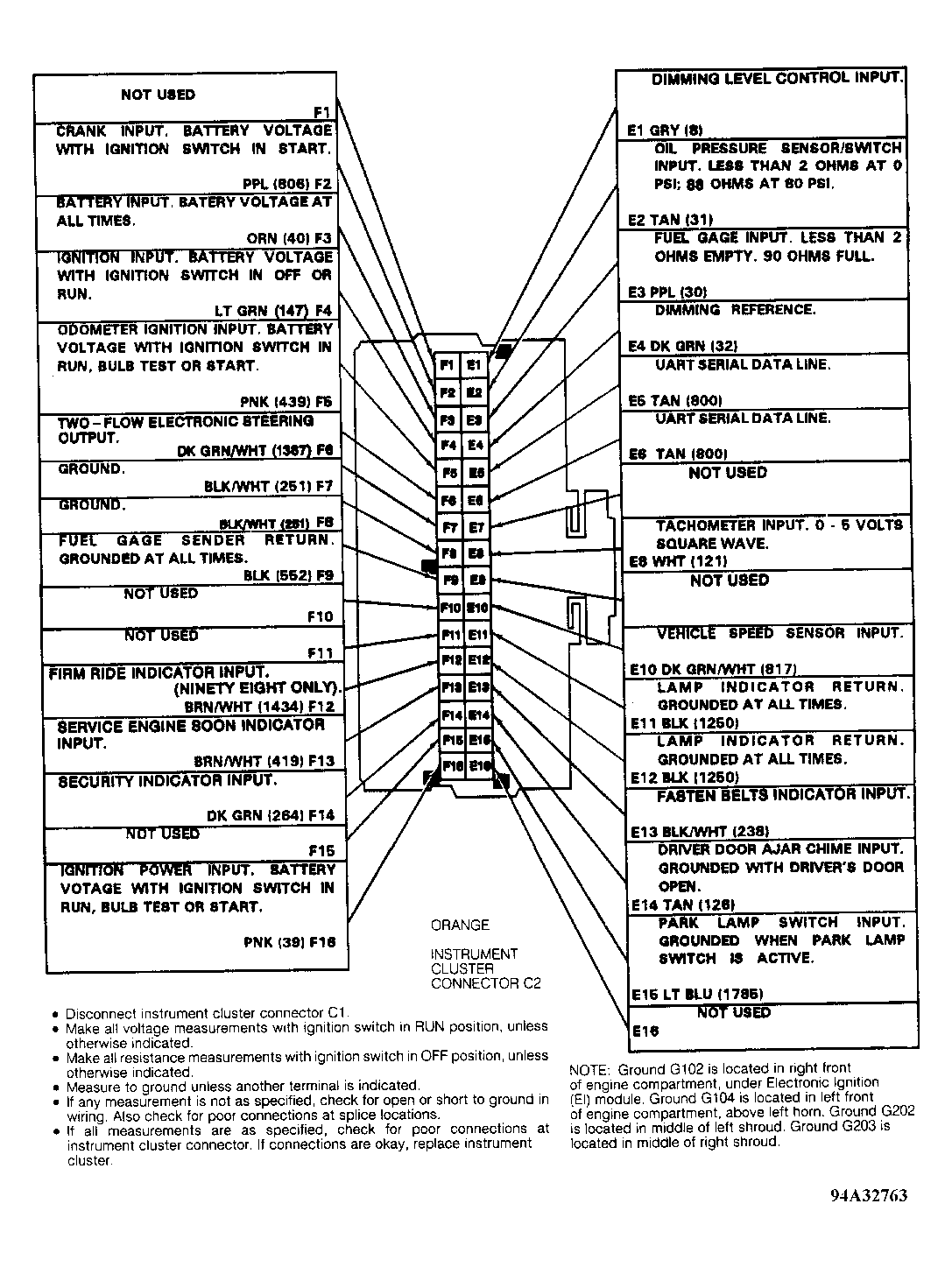

Fig 3: Testing Instrument Gauges Cluster Connector C2 Terminals
G94A32763Courtesy of GENERAL MOTORS CORP.
