System Tests

For serial data line testing, refer to flowchart. See Fig 1 and Fig 2 .

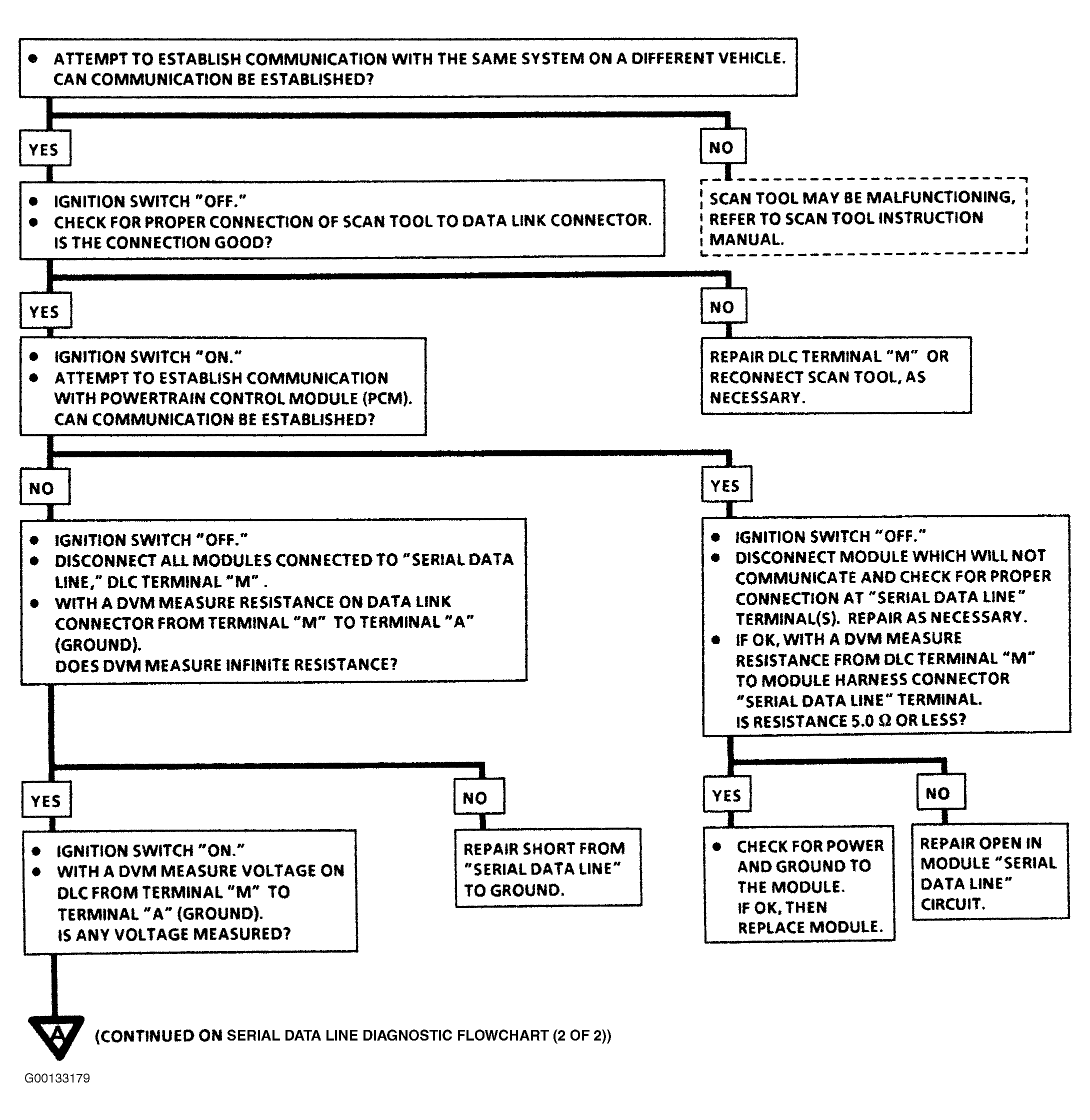

Fig 1: Serial Data Line Diagnostic Flowchart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

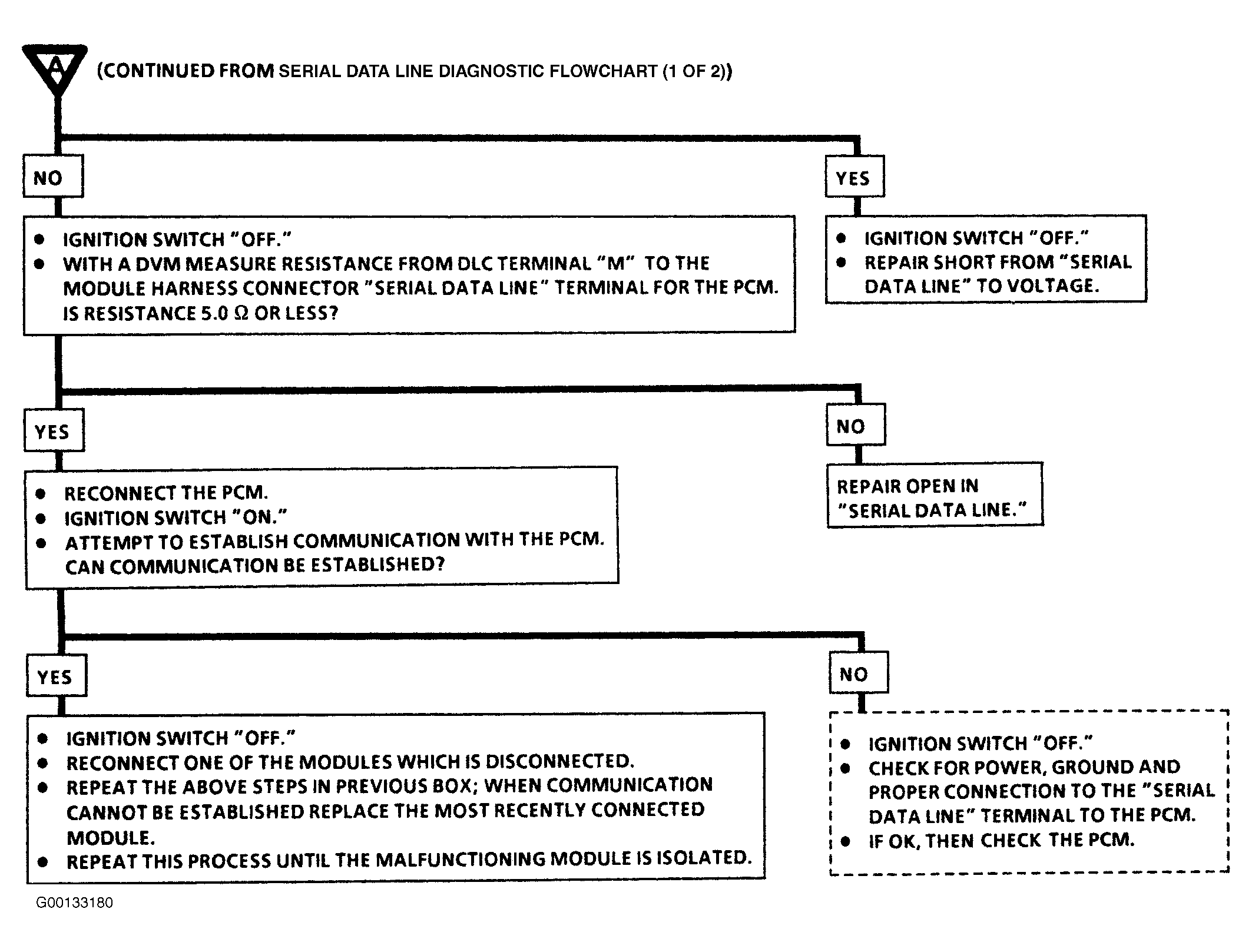

Fig 2: Serial Data Line Diagnostic Flowchart (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
