Component Locations

COMPONENT LOCATIONS

Component Location
Data Link Connector (DLC) Bottom Of Instrument Panel, Right Of Steering Column
Diagnostic Energy Reserve Module (DERM) Behind Driver Side Of Instrument Panel, Left Of Steering Column. See Fig 1
Electronic Brake Control Module (EBCM) Driver Side Of Engine Compartment, In Fender. See Fig 2
HVAC Control Assembly Connectors (C67) Center Of Instrument Panel. See Fig 3
HVAC Control Assembly Connectors (C68) Center Of Instrument Panel. See Fig 4
Powertrain Control Module (PCM - VIN M) Passenger Side Of Engine Compartment, Forward Of Strut Tower. SeeFig 5
Powertrain Control Module (PCM - VIN X) Passenger Side Of Engine Compartment, Forward Of Strut Tower. See Fig 6
Radio Connectors (UM6 & UM7 Type Radio) Center Of Instrument Panel. See Fig 7
Radio Connectors (UN6, UT6 & UIC Type Radio) Center Of Instrument Panel. See Fig 8
C100 (36 Terminals) Passenger Front Of Dash, Behind Strut Tower. See Fig 9
C215 (10 Terminals) Behind Passenger Side Of Instrument Panel, Left Of Steering Column
G201 Behind Instrument Panel, On Passenger Side Of Mag Bracket. See Fig 10
P103 Driver Rear Of Engine Compartment, Near Strut Tower. See Fig 11
S211 Instrument Panel Harness, Near Fuse Block Breakout
S225 Instrument Panel Harness, Near HVAC Control Assembly Breakout
S237 Instrument Panel Harness, Near Fuse Block Breakout, See Fig 3

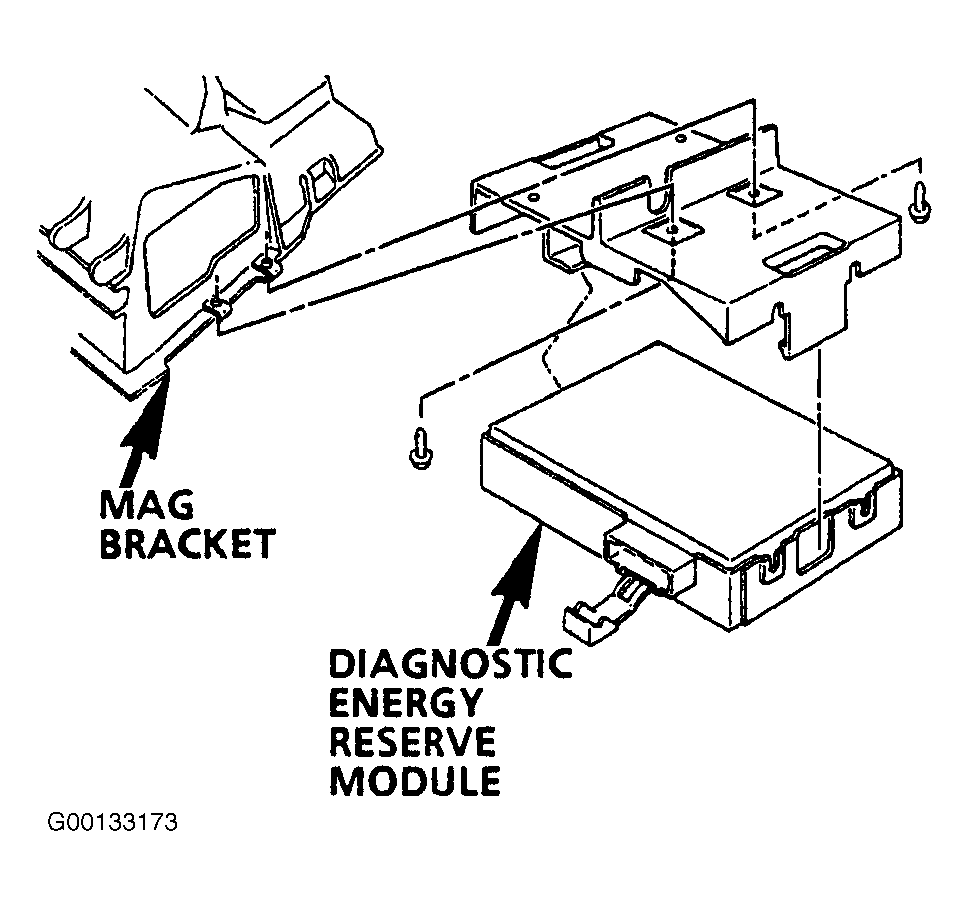

Fig 1: Locating DERM
G00133173Courtesy of GENERAL MOTORS CORP.

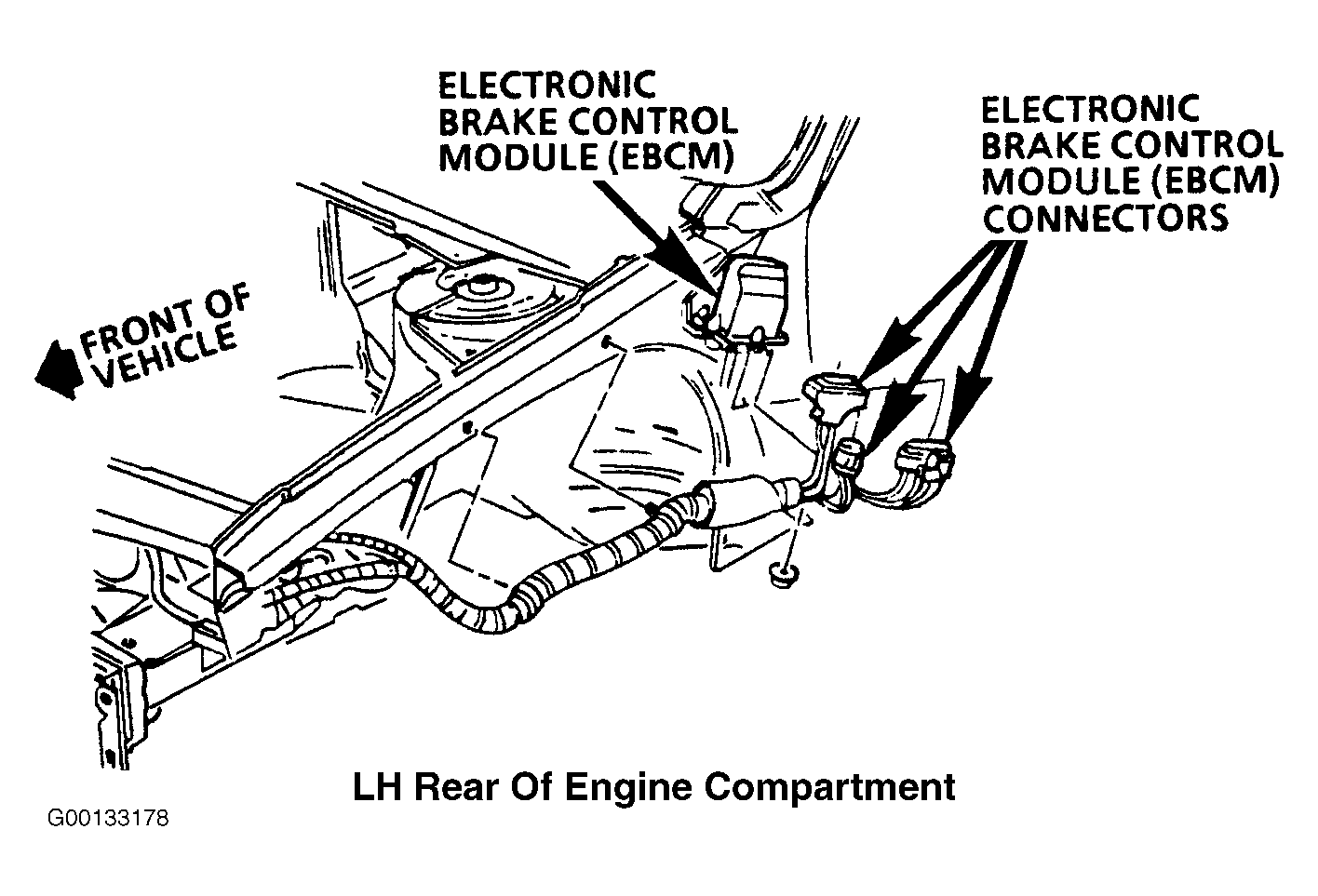

Fig 2: Locating EBCM
G00133178Courtesy of GENERAL MOTORS CORP.

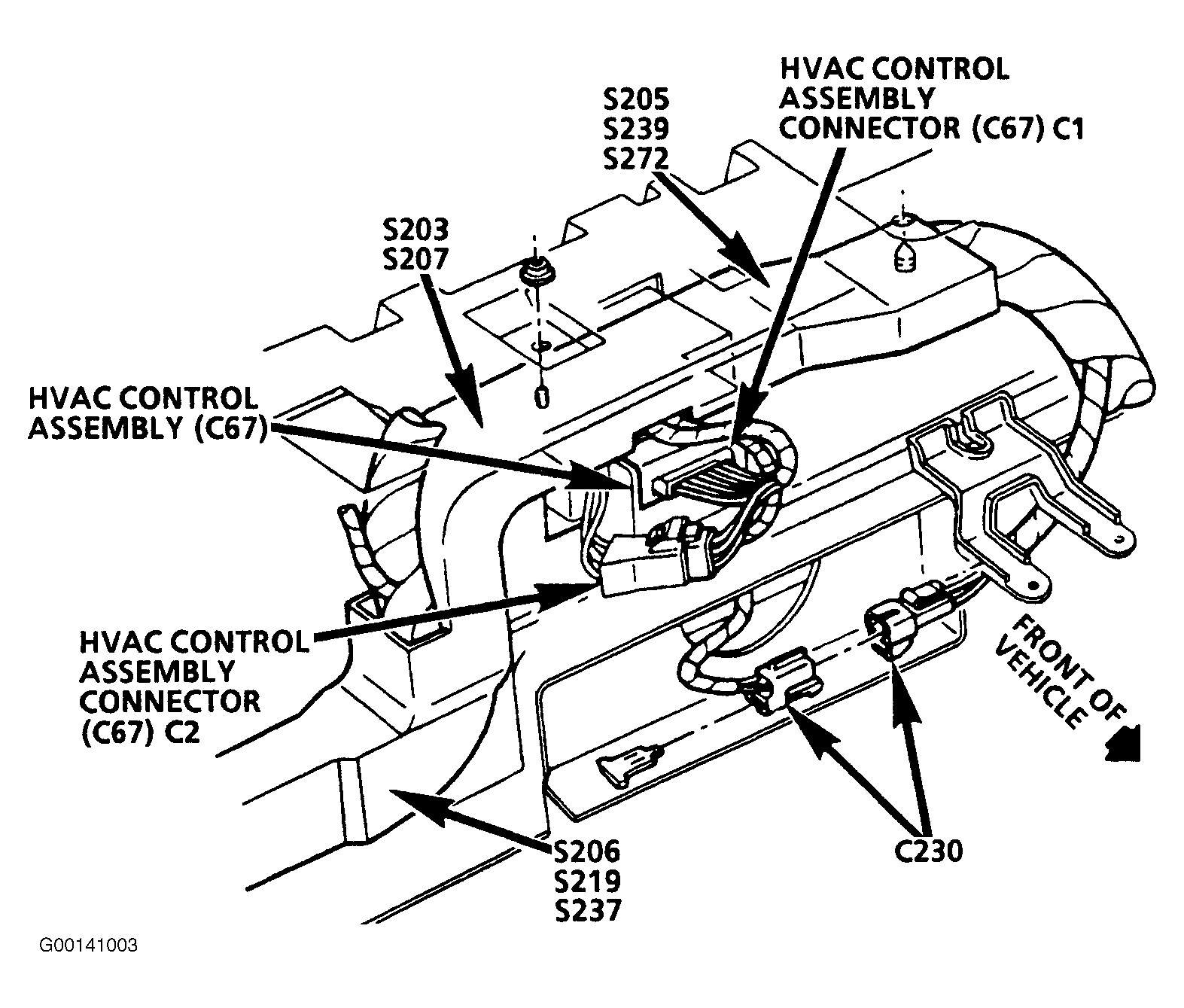

Fig 3: Locating HVAC Control Assembly Connectors (C67) & S237
G00141003Courtesy of GENERAL MOTORS CORP.

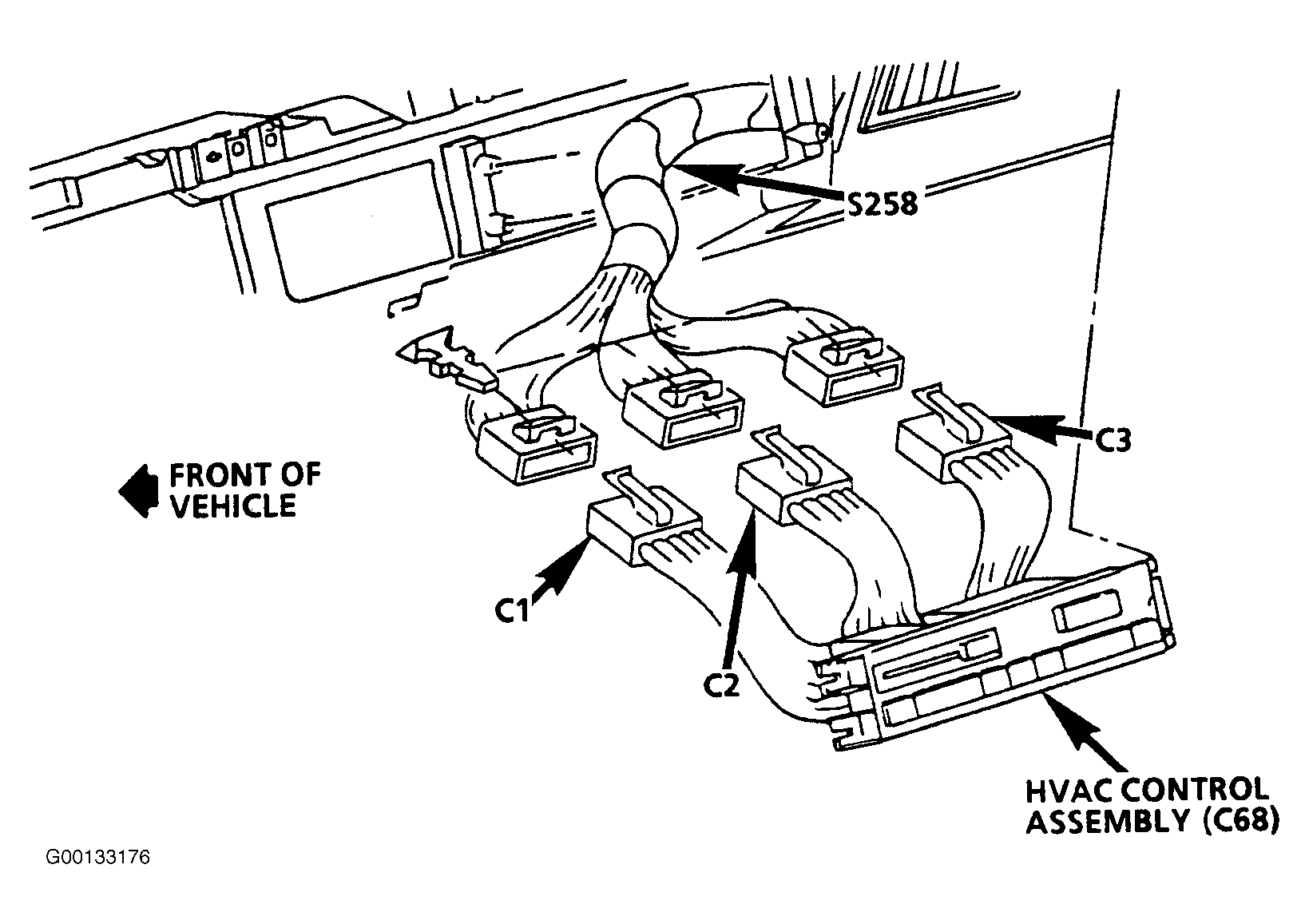

Fig 4: Locating HVAC Control Assembly Connectors (C68)
G00133176Courtesy of GENERAL MOTORS CORP.

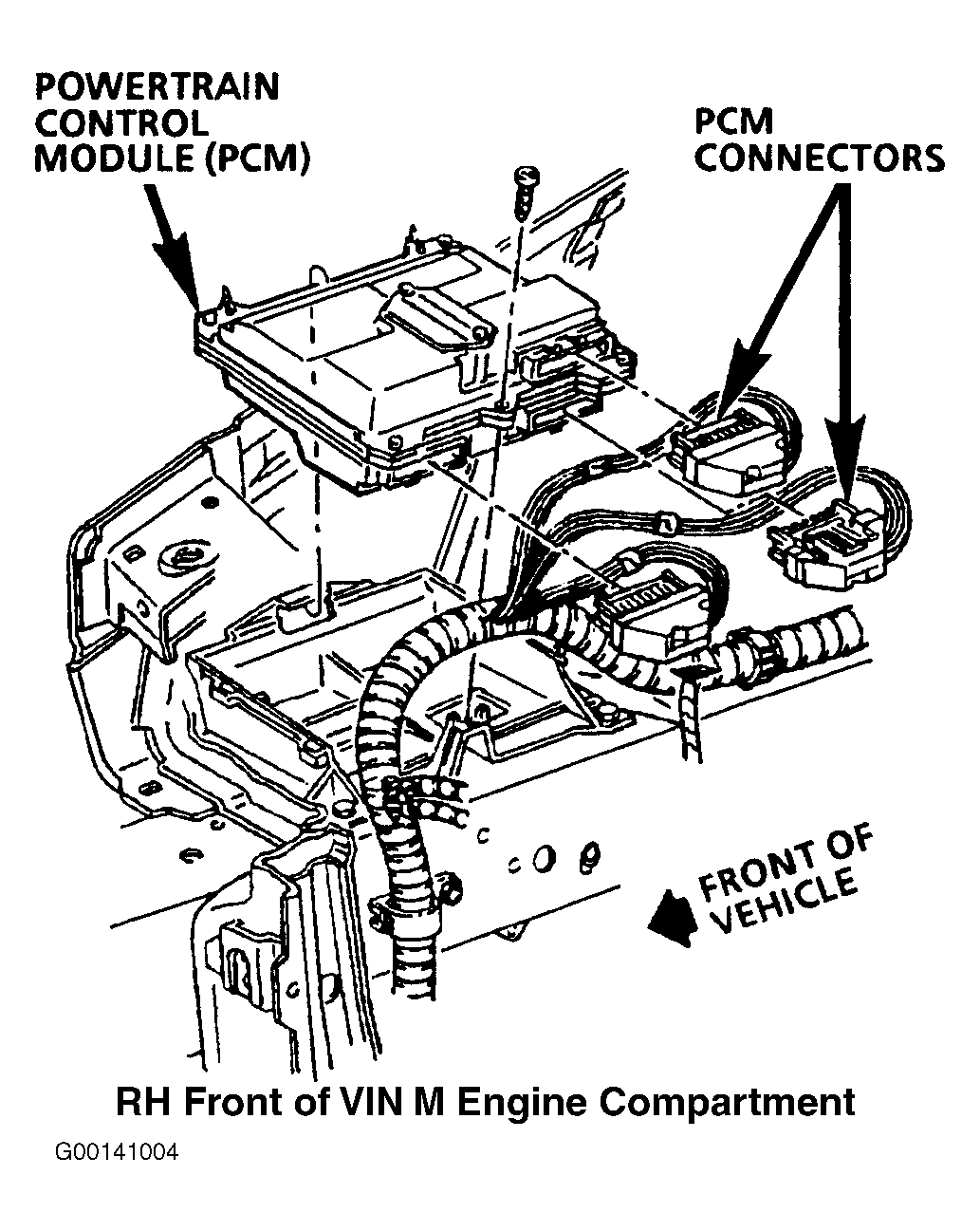

Fig 5: Locating PCM (VIN M)
G00141004Courtesy of GENERAL MOTORS CORP.

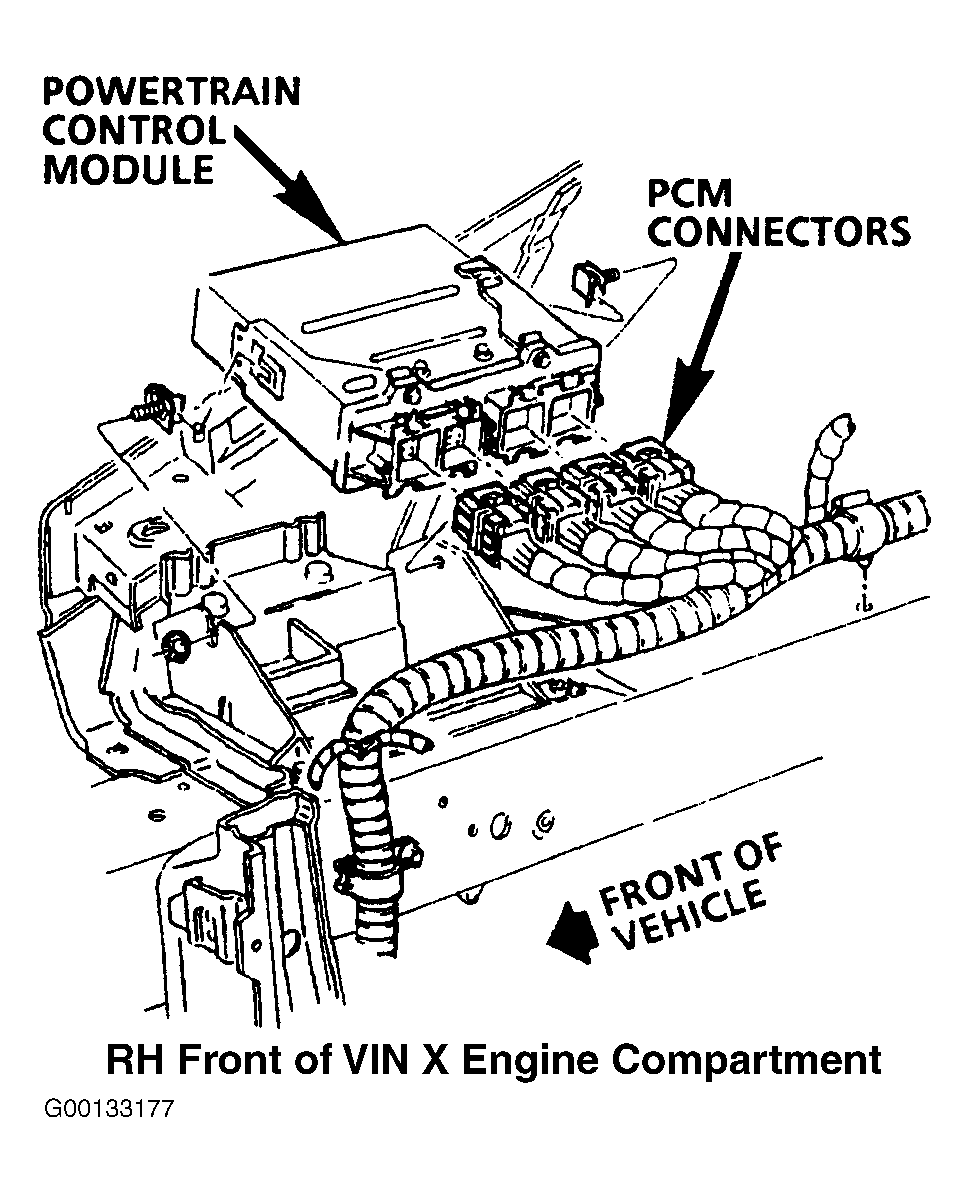

Fig 6: Locating PCM (VIN X)
G00133177Courtesy of GENERAL MOTORS CORP.

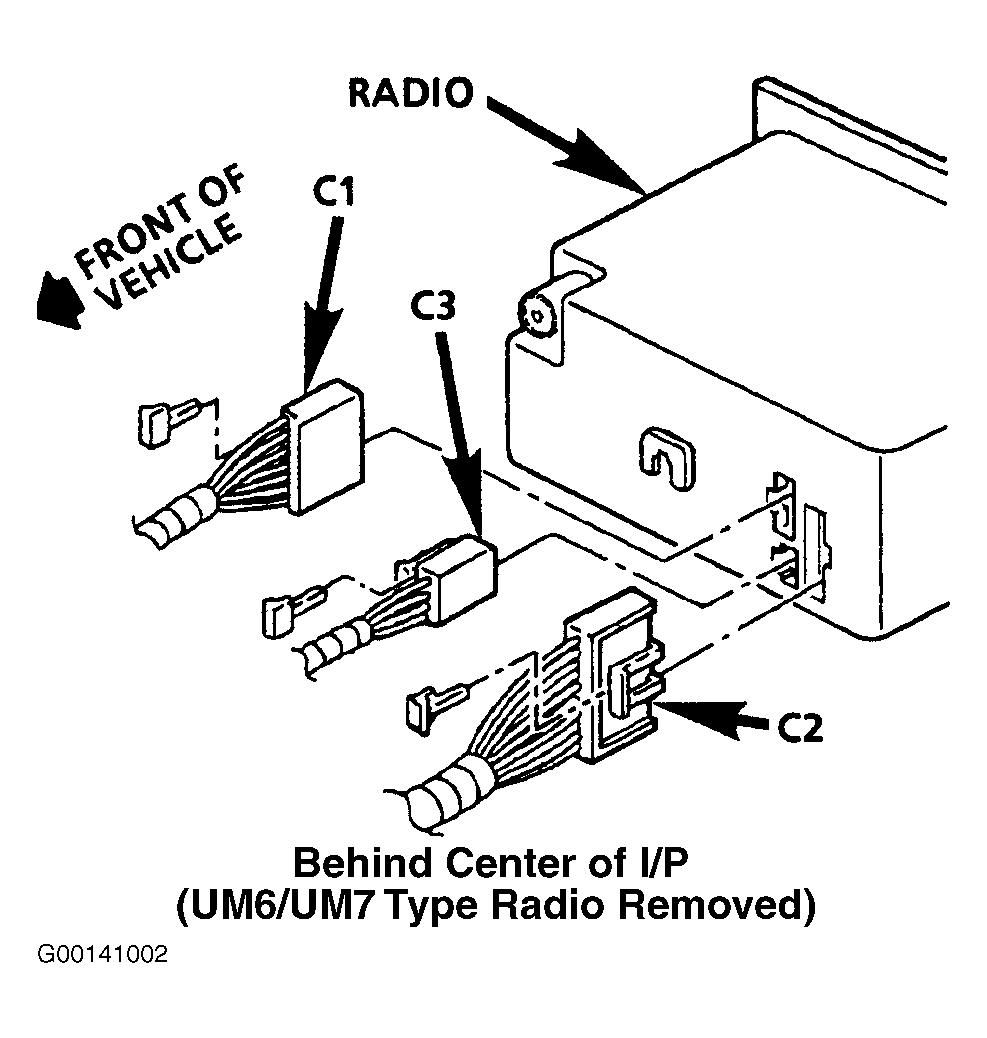

Fig 7: Locating Radio Connectors (UM6 & UM7 Type Radio)
G00141002Courtesy of GENERAL MOTORS CORP.

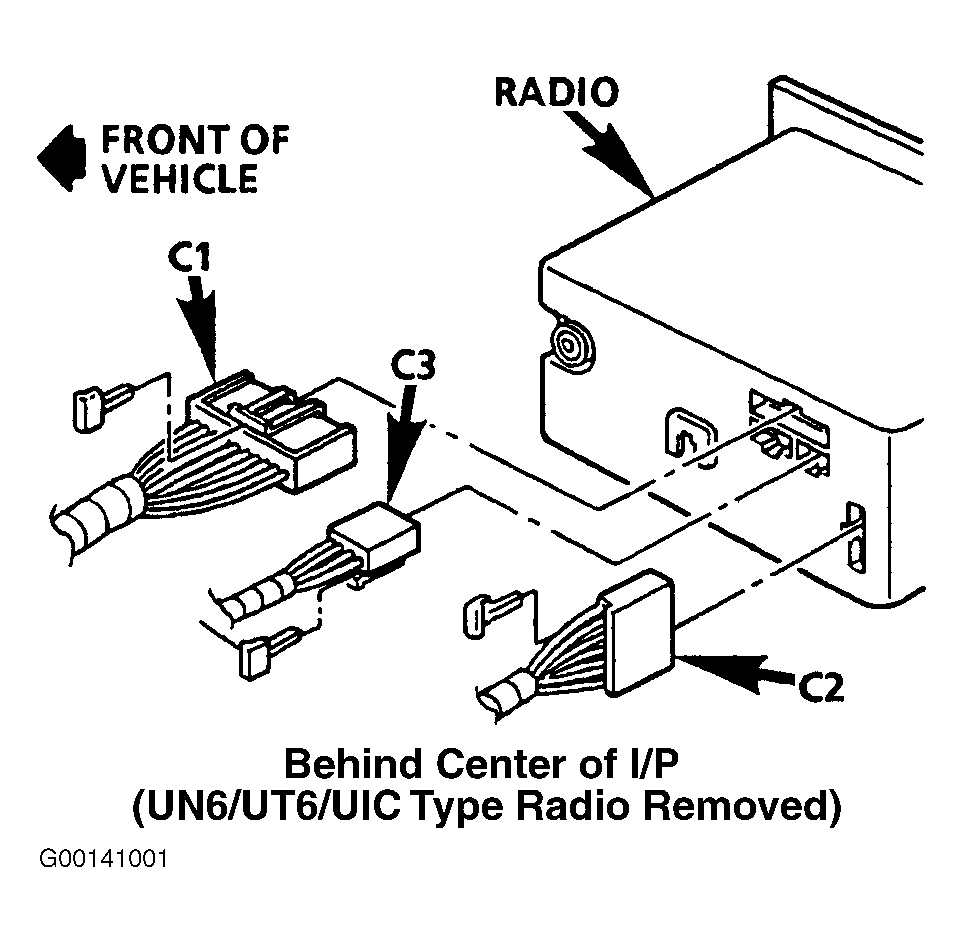

Fig 8: Locating Radio Connectors (UN6, UT6 & UIC Type Radio)
G00141001Courtesy of GENERAL MOTORS CORP.

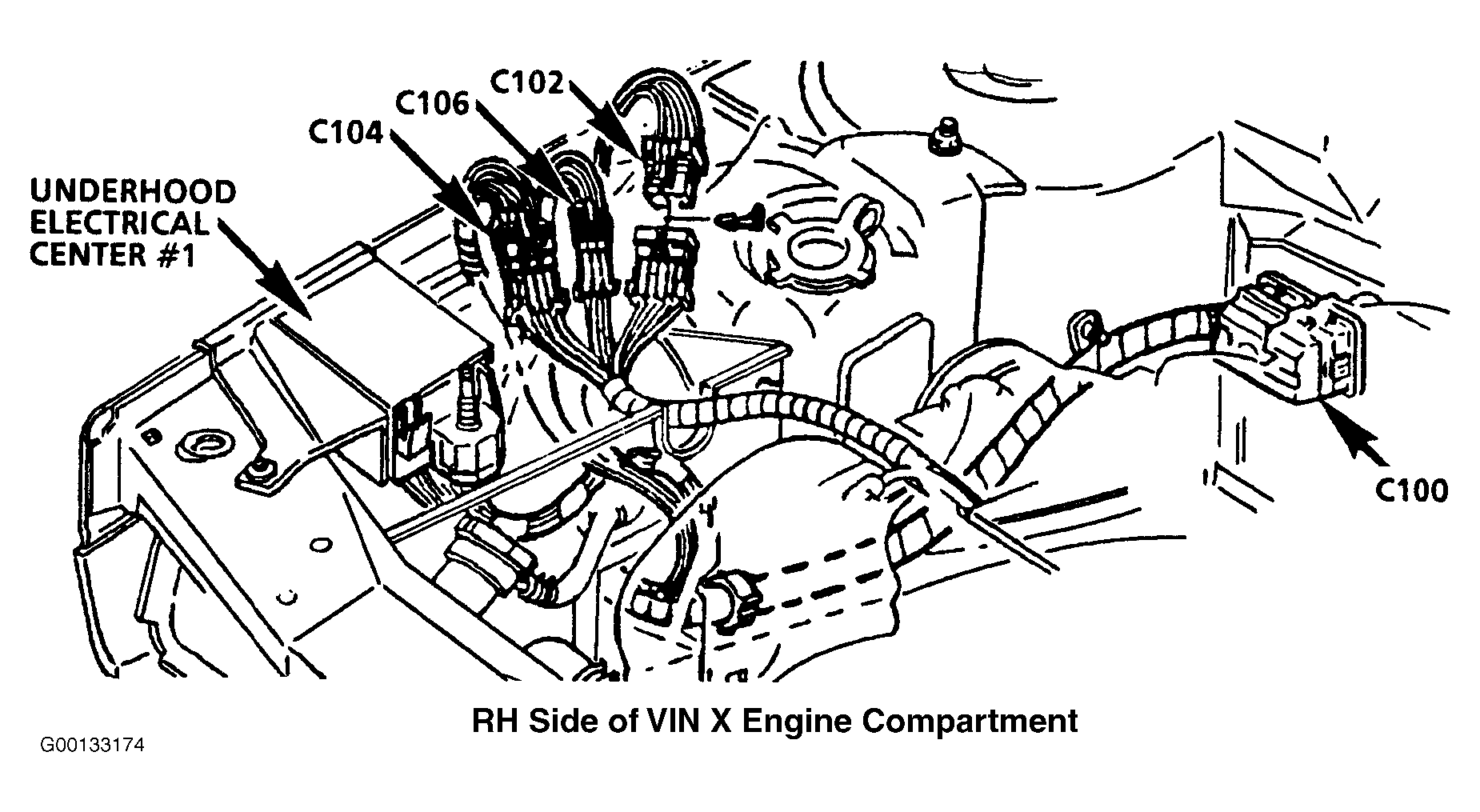

Fig 9: Locating C100 (VIN X)
G00133174Courtesy of GENERAL MOTORS CORP.

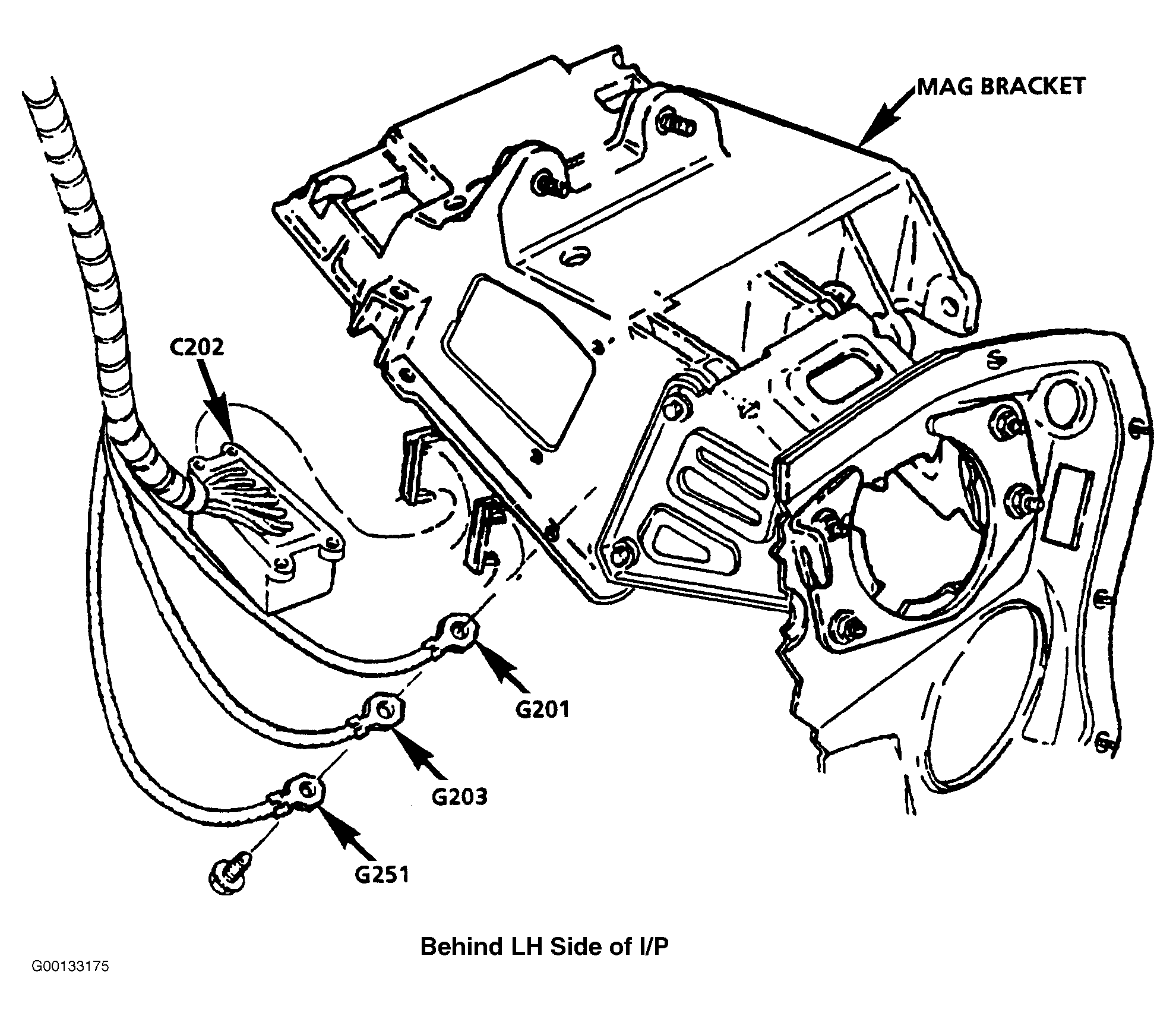

Fig 10: Locating G201
G00133175Courtesy of GENERAL MOTORS CORP.

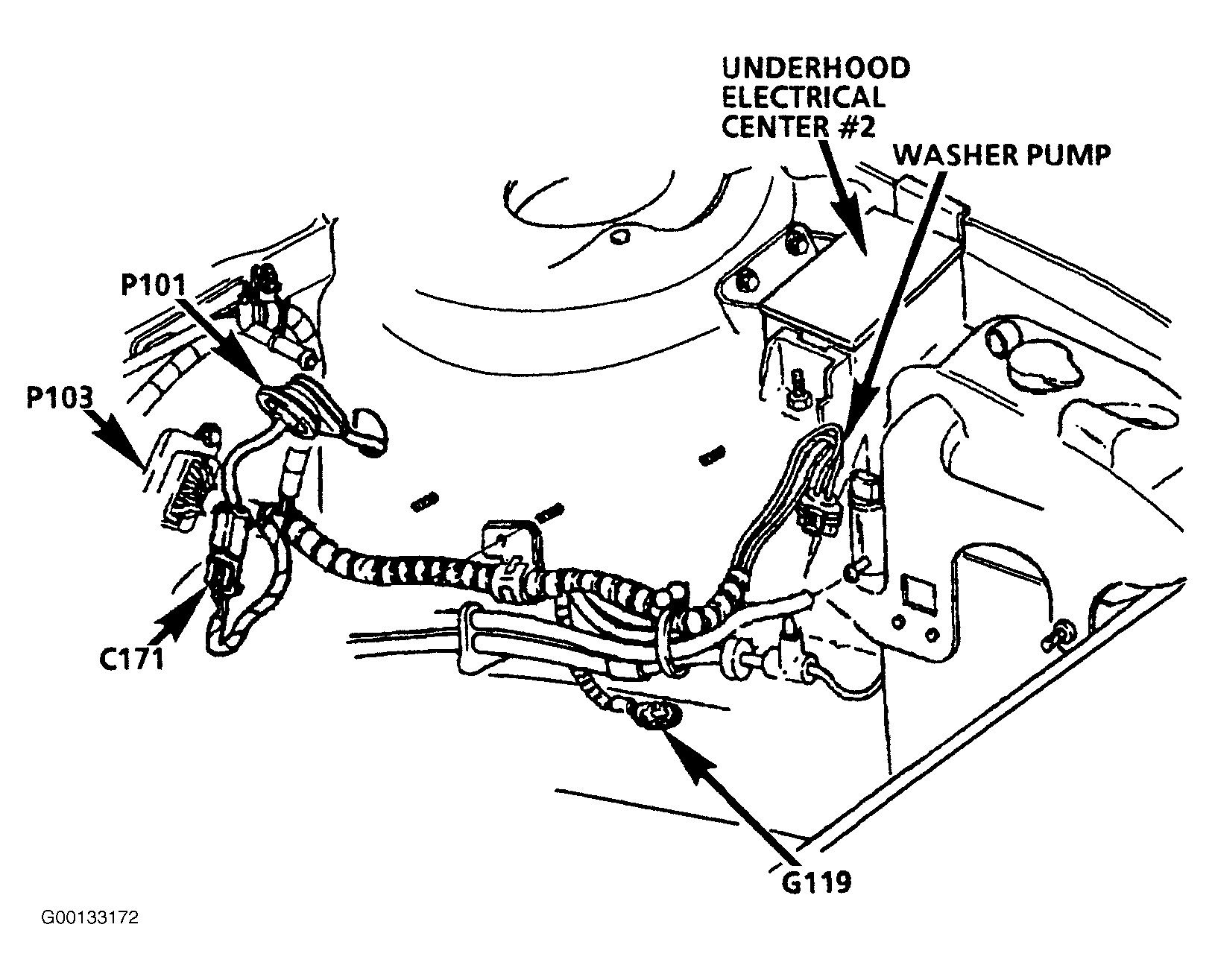

Fig 11: Locating P103
G00133172Courtesy of GENERAL MOTORS CORP.
