Spring Height Measurement

Measure distance from adapter face and bearing assembly to lower spring retainer. Spring height must equal 1.0" (25.4 mm). See Fig 1 .

Fig 1: Measuring Spring Height

Courtesy of GENERAL MOTORS CORP.

Fig 2: Inspecting Steering Column Capsules For Damage

Courtesy of GENERAL MOTORS CORP.

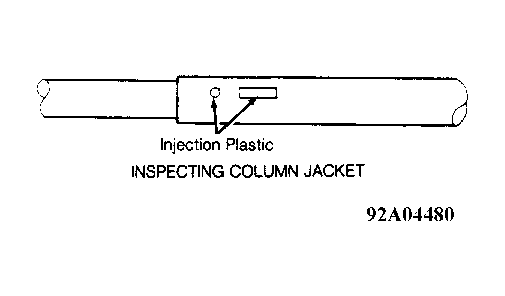

Fig 3: Inspecting Column Jacket

Courtesy of GENERAL MOTORS CORP.

Fig 4: Inspecting Steering Shaft

Courtesy of GENERAL MOTORS CORP.

COLUMN JACKET COLLAPSE MEASUREMENTS ⁽¹⁾⁽²⁾

Application

In. (mm)

Century, Cutlass Ciera & Cutlass Cruiser

3.68-3.71 (93.36-94.36)

⁽¹⁾	Measure with lower bearing removed.

⁽²⁾	Refer to illustration. See Fig 5 .

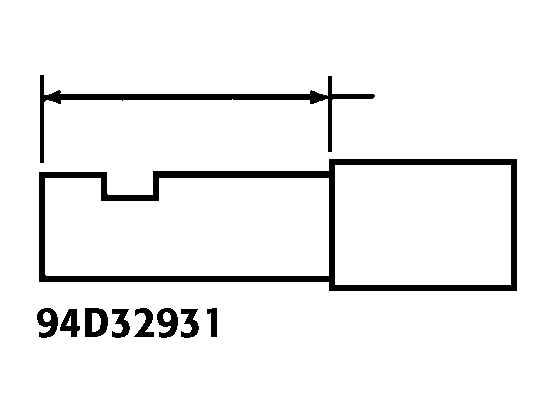

Fig 5: Measuring Column Jacket

Courtesy of GENERAL MOTORS CORP.

Fig 6: Exploded View Of Steering Column Assembly

Courtesy of GENERAL MOTORS CORP.
