Connector Identification
Connector Identification

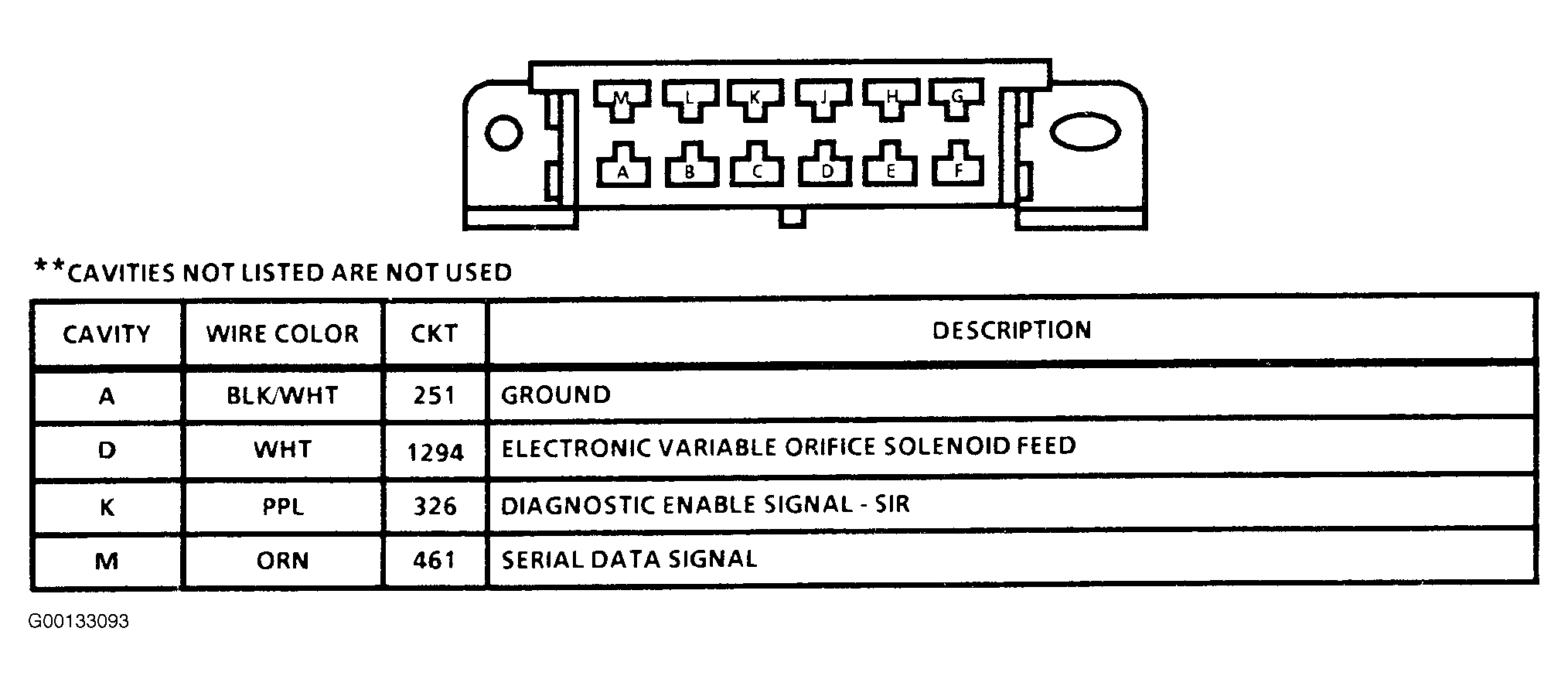

Fig 1: Data Link Connector Pin Identification
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
