Component Locations

COMPONENT LOCATIONS

Component Location
Data Link Connector (DLC) Below Driver Side Of Instrument Panel, Near Steering Column. SeeFig 1
Diagnostic Energy Reserve Module (DERM) Behind HVAC Control Head. See Fig 1
Electronic Brake Control Module (EBCM) Upper Passenger Side Front Of Instrument Panel, Above PCM. See Fig 2
Instrument Cluster Driver Side Of Instrument Panel
Powertrain Control Module (PCM) Behind Passenger Side Of Instrument Panel. See Fig 2
Variable Effort Steering (VES) Control Module Driver Side Of Instrument Panel, On DERM Bracket. See Fig 3
C121 Instrument Panel Harness, Behind Center Of Instrument Panel Near C210. See Fig 2
C210 Behind Passenger Side Of Instrument Panel, Below PCM. See Fig 4
G105 (L4 VIN 4) Transaxle Stud, Under Intake Manifold. See Fig 5
G105 (V6 VIN M) Transaxle Stud, Under Intake Manifold. See Fig 5
P102 Front Of Instrument Panel, Passenger Side
S137 (L4 VIN 4) Engine Harness, Top Rear Of Engine. See Fig 5
S215 Instrument Panel Harness, Behind Center Of Instrument Panel. See Fig 1
S296 Instrument Panel Harness, Near DERM

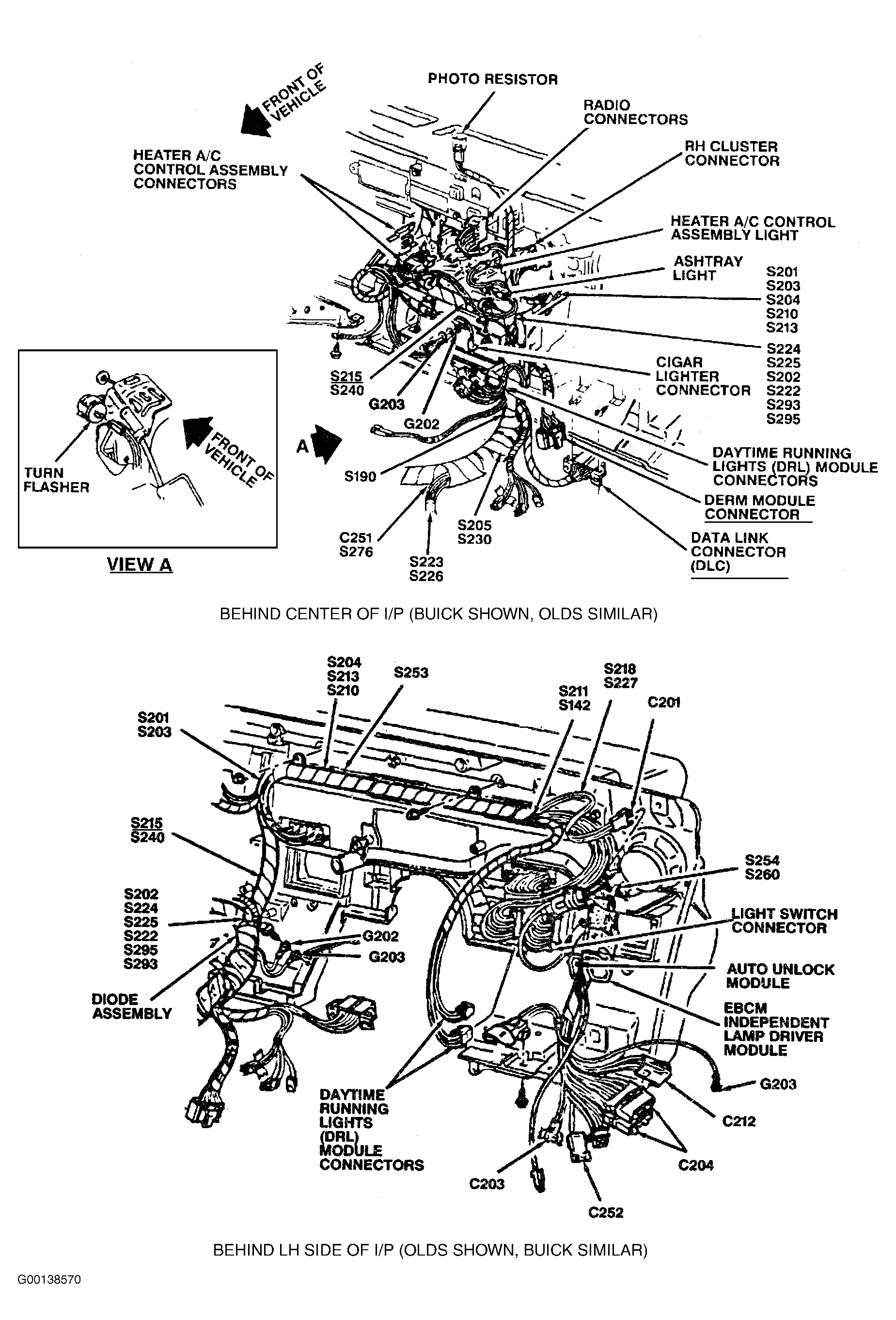

Fig 1: Locating DLC, DERM & Splice S215
G00138570Courtesy of GENERAL MOTORS CORP.

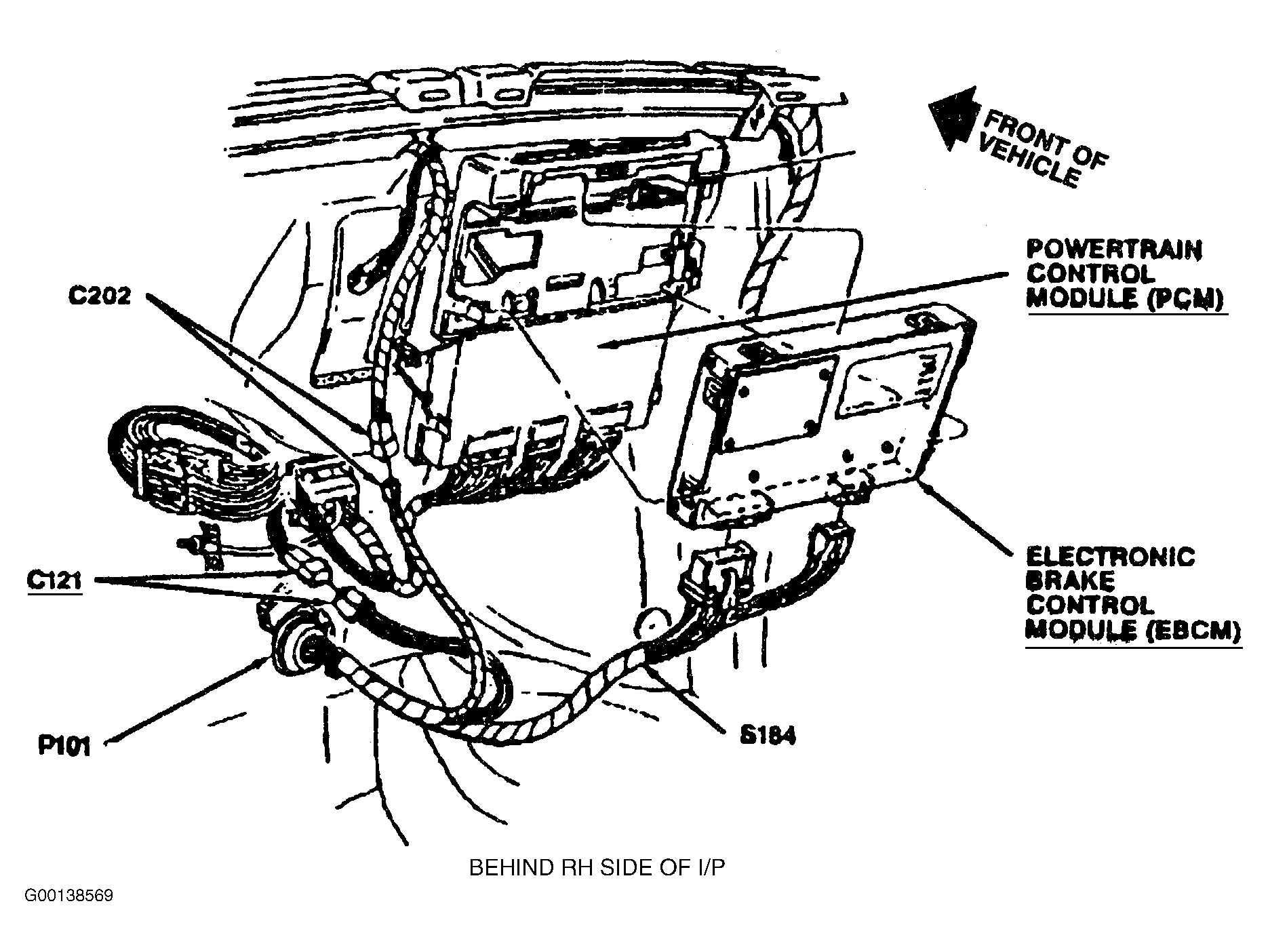

Fig 2: Locating EBCM, PCM & Connector C121
G00138569Courtesy of GENERAL MOTORS CORP.

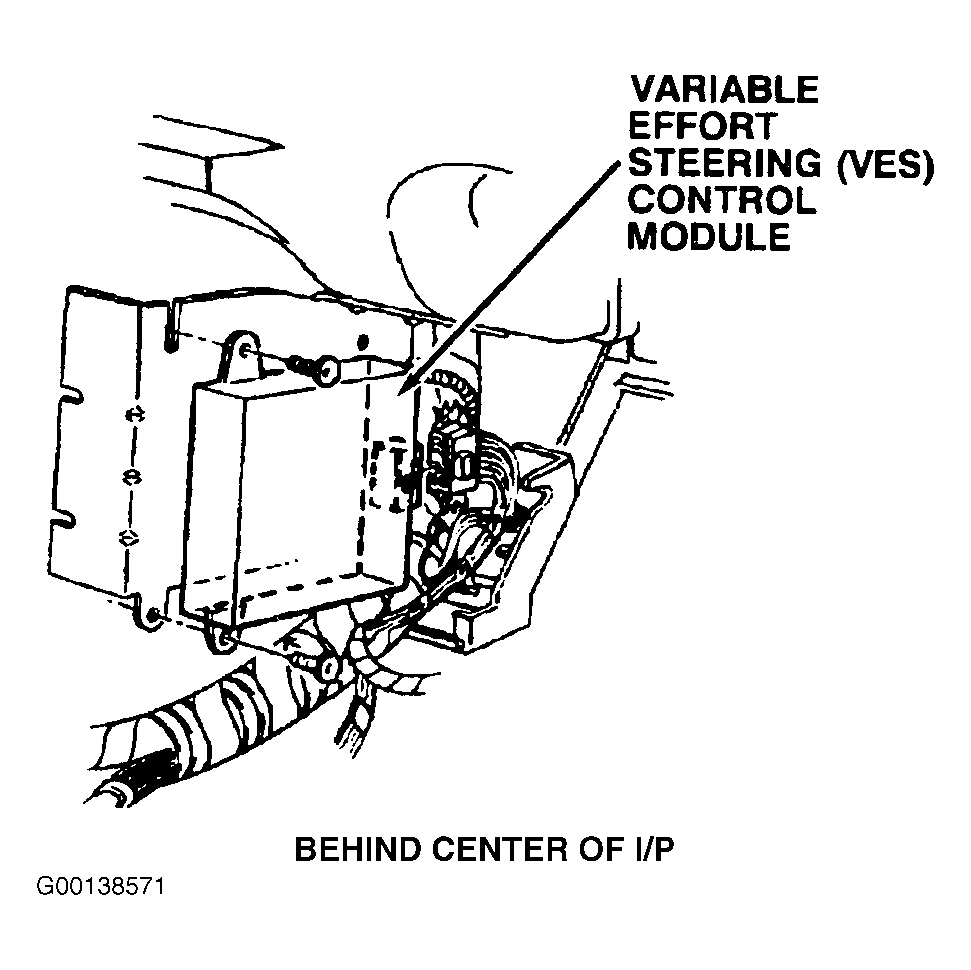

Fig 3: Locating Variable Effort Steering (VES) Module
G00138571Courtesy of GENERAL MOTORS CORP.

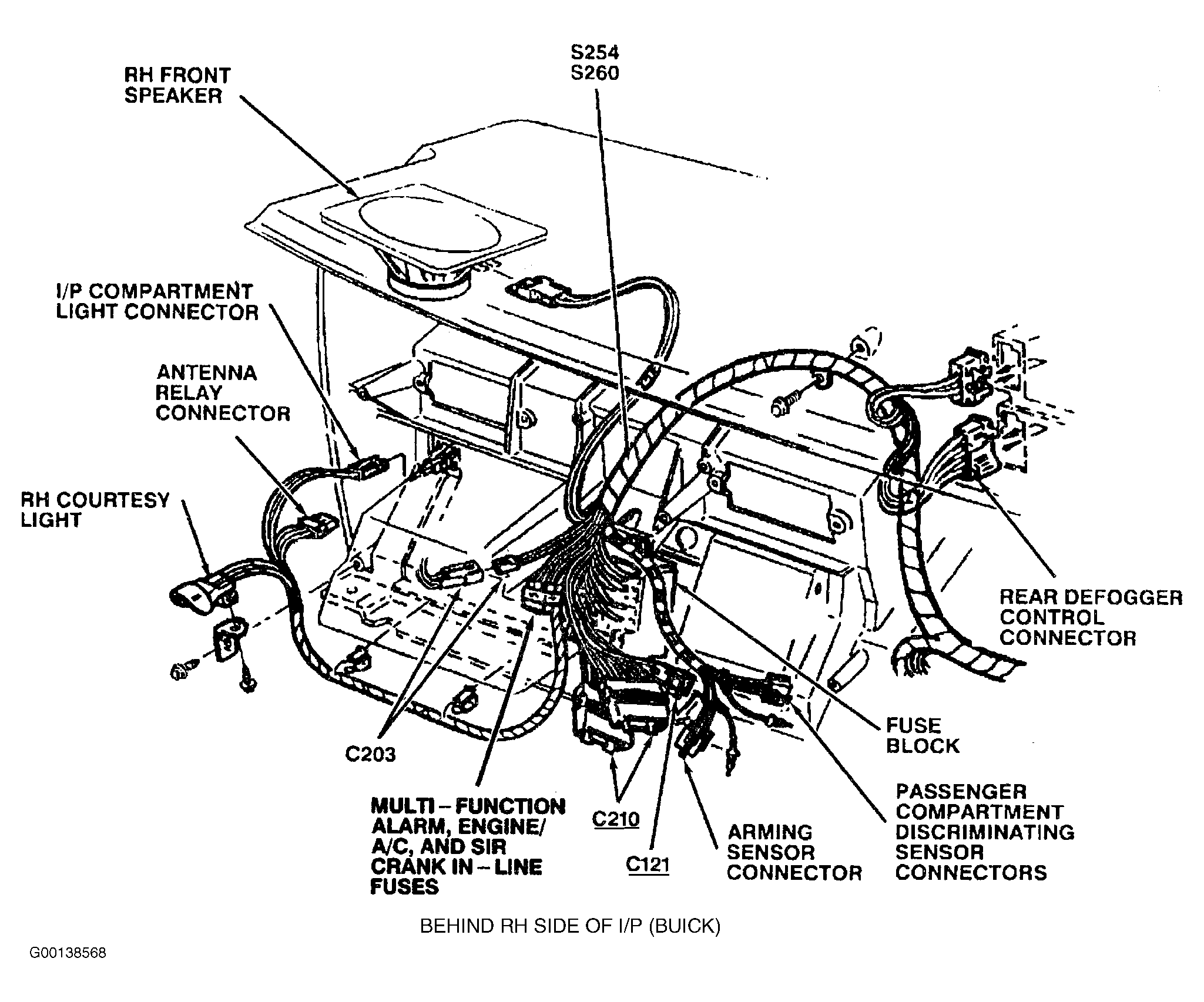

Fig 4: Locating Connector C210
G00138568Courtesy of GENERAL MOTORS CORP.

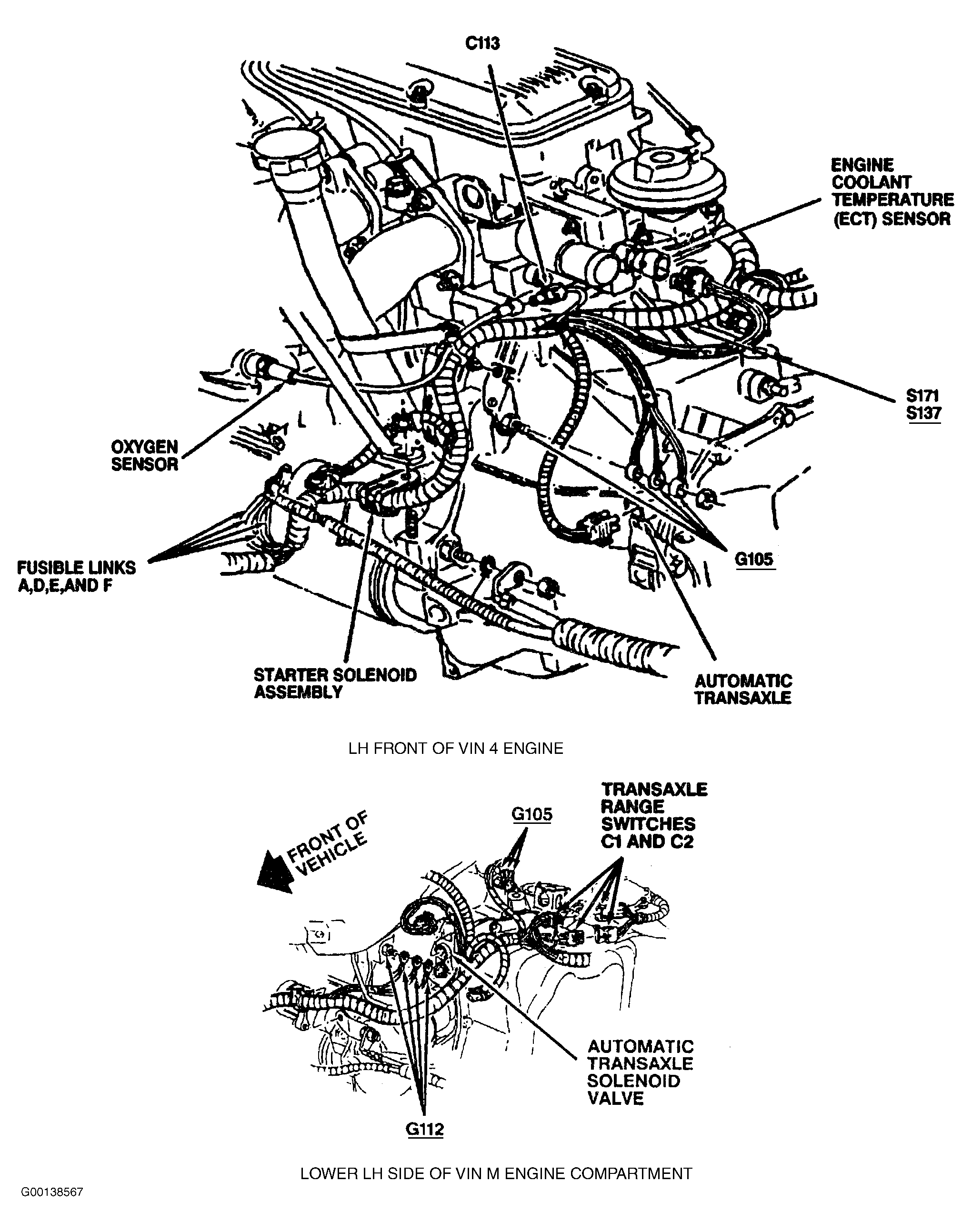

Fig 5: Locating Ground G105, G112 & Splice S137
G00138567Courtesy of GENERAL MOTORS CORP.

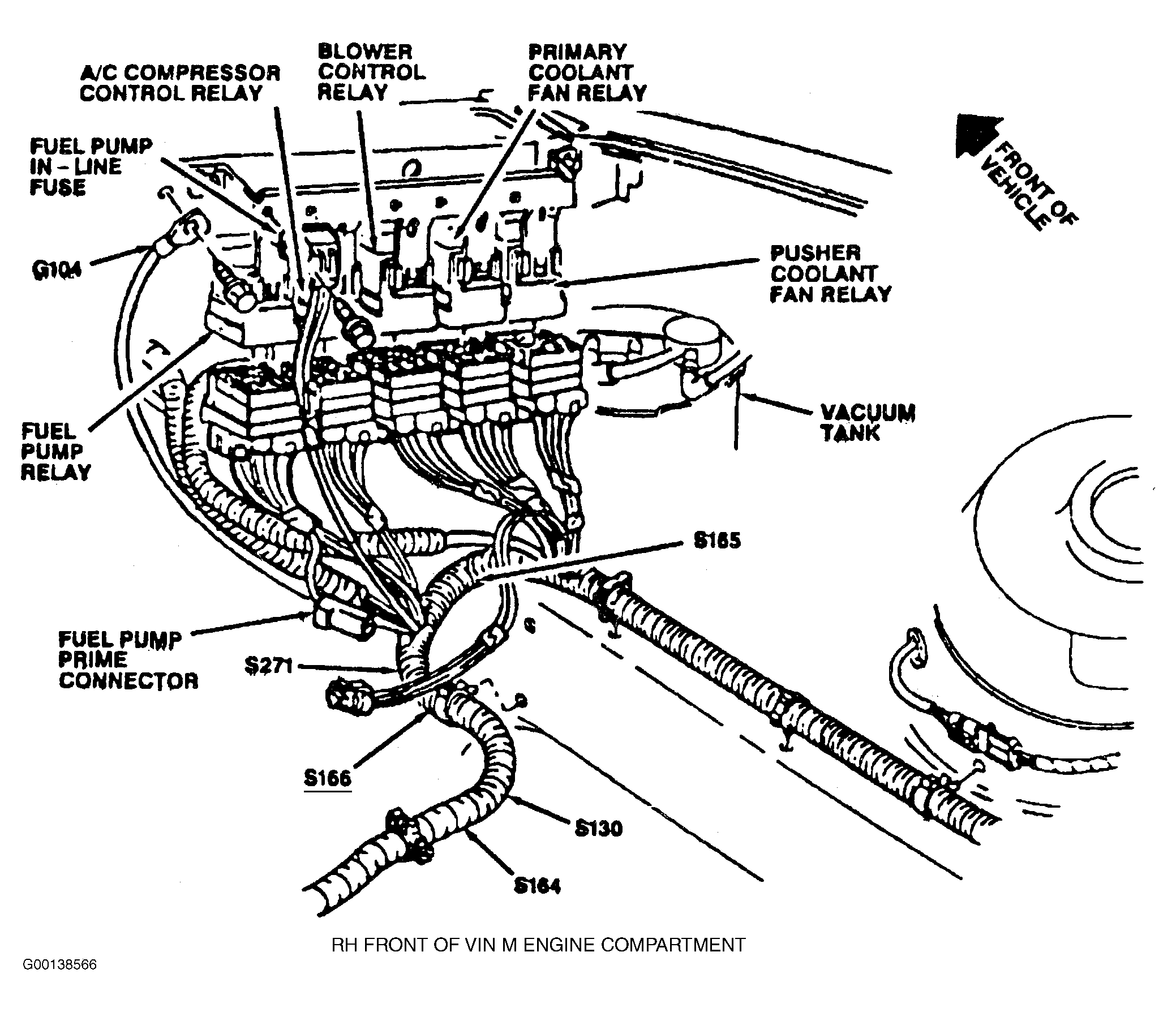

Fig 6: Locating Splice S166
G00138566Courtesy of GENERAL MOTORS CORP.
