Diagnostic Aids

An intermittent 24X signal error can be caused by poor connections. Ignition feed, reference low and signal circuits should all be checked for poor connections.

Fig 1: Code P0321 Schematic (3.1L) Ignition Control 24X Signal Circuit Error

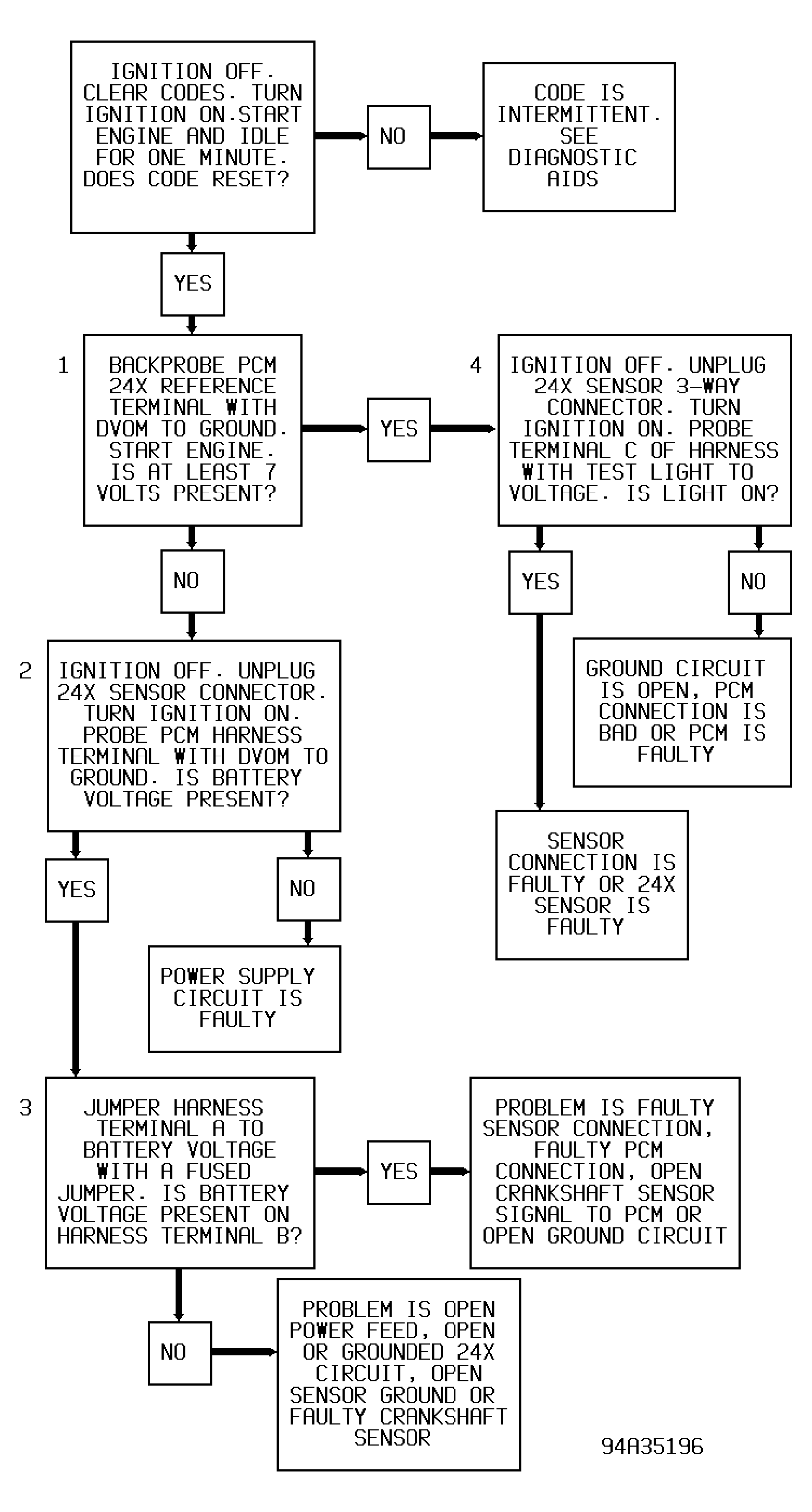

Fig 2: Code P0321 Flow Chart (3.1L) Ignition Control 24X Signal Circuit Error

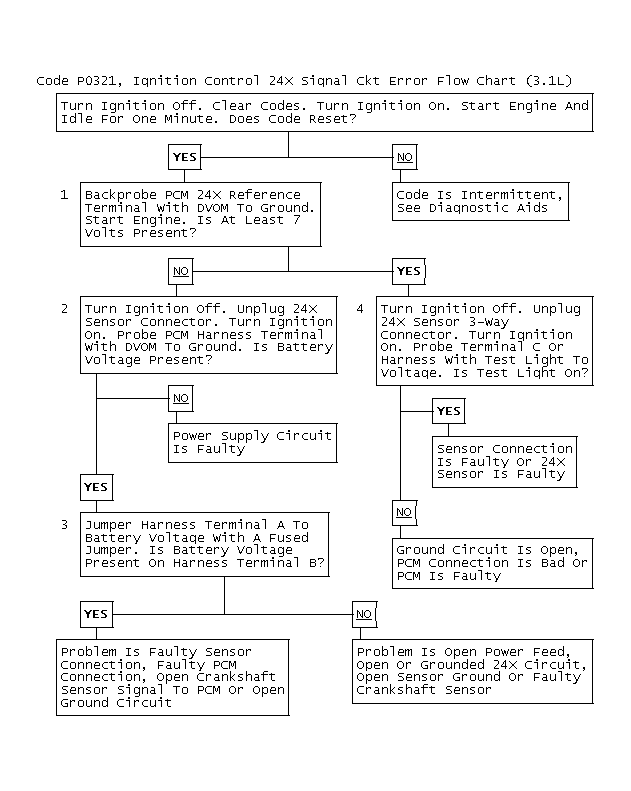

Fig 3: Code P0321, Ignition Control 24X Signal Ckt Error Flow Chart (3.1L)
