Instrument Panel - Analog: Testing: Notes

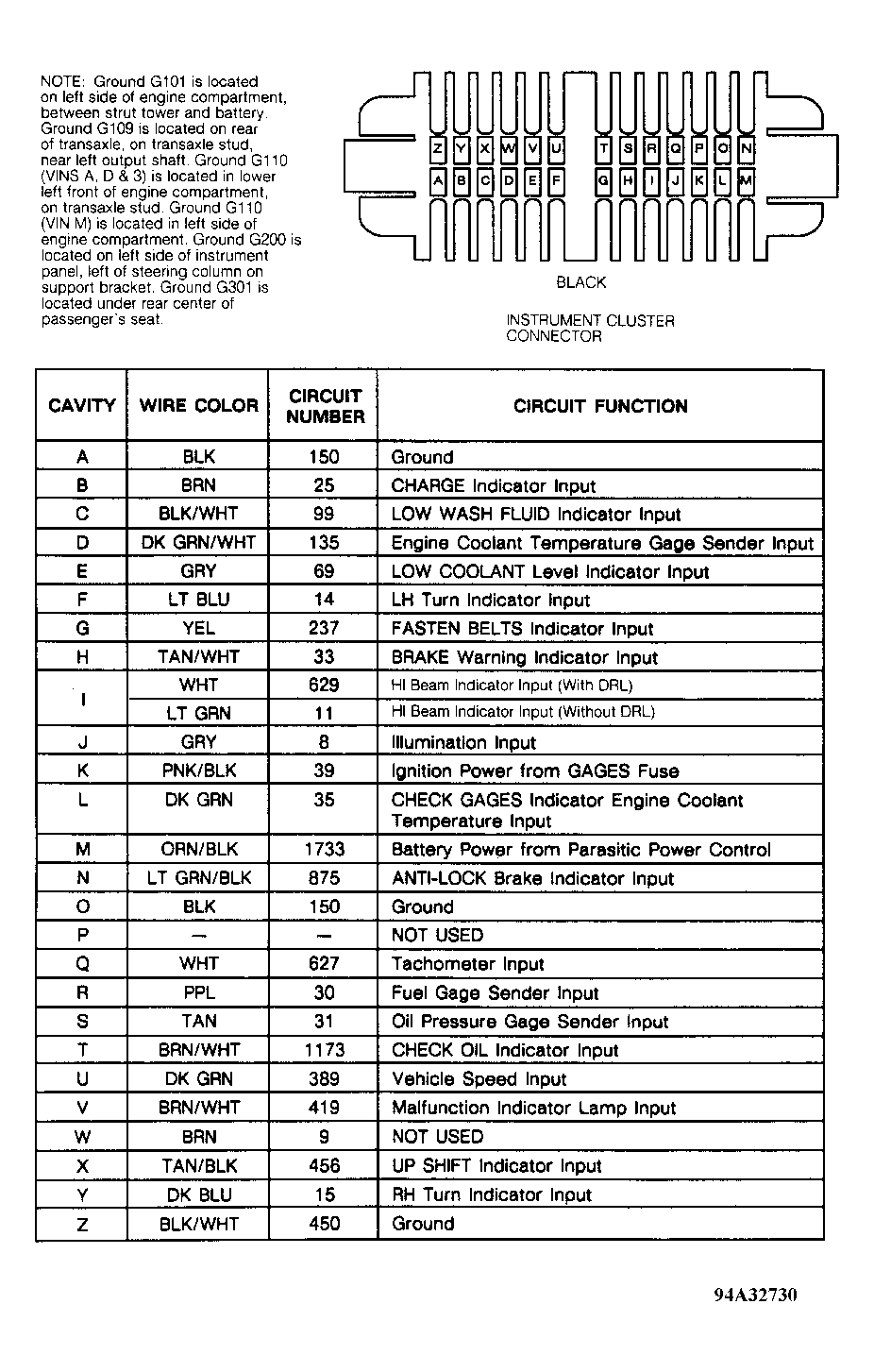

NOTE: When testing suspect gauges/indicators, refer to appropriate illustrations to identify instrument cluster terminals. See Fig 1 .
Fig 1: Testing Instrument Cluster Connector Terminals
G94A32730Courtesy of GENERAL MOTORS CORP.
