Wiring Diagrams

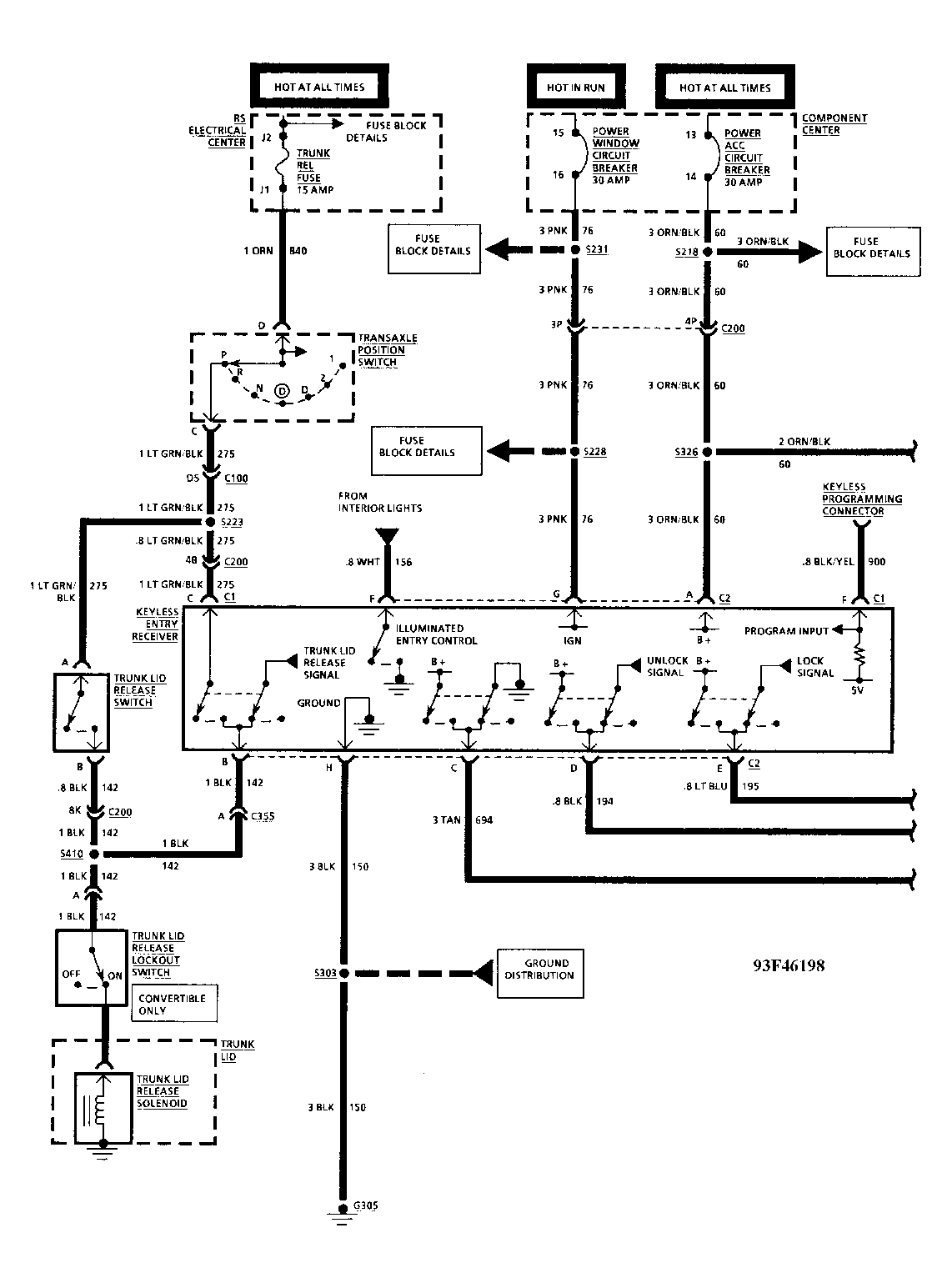

Fig 1: Wiring Diagram (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

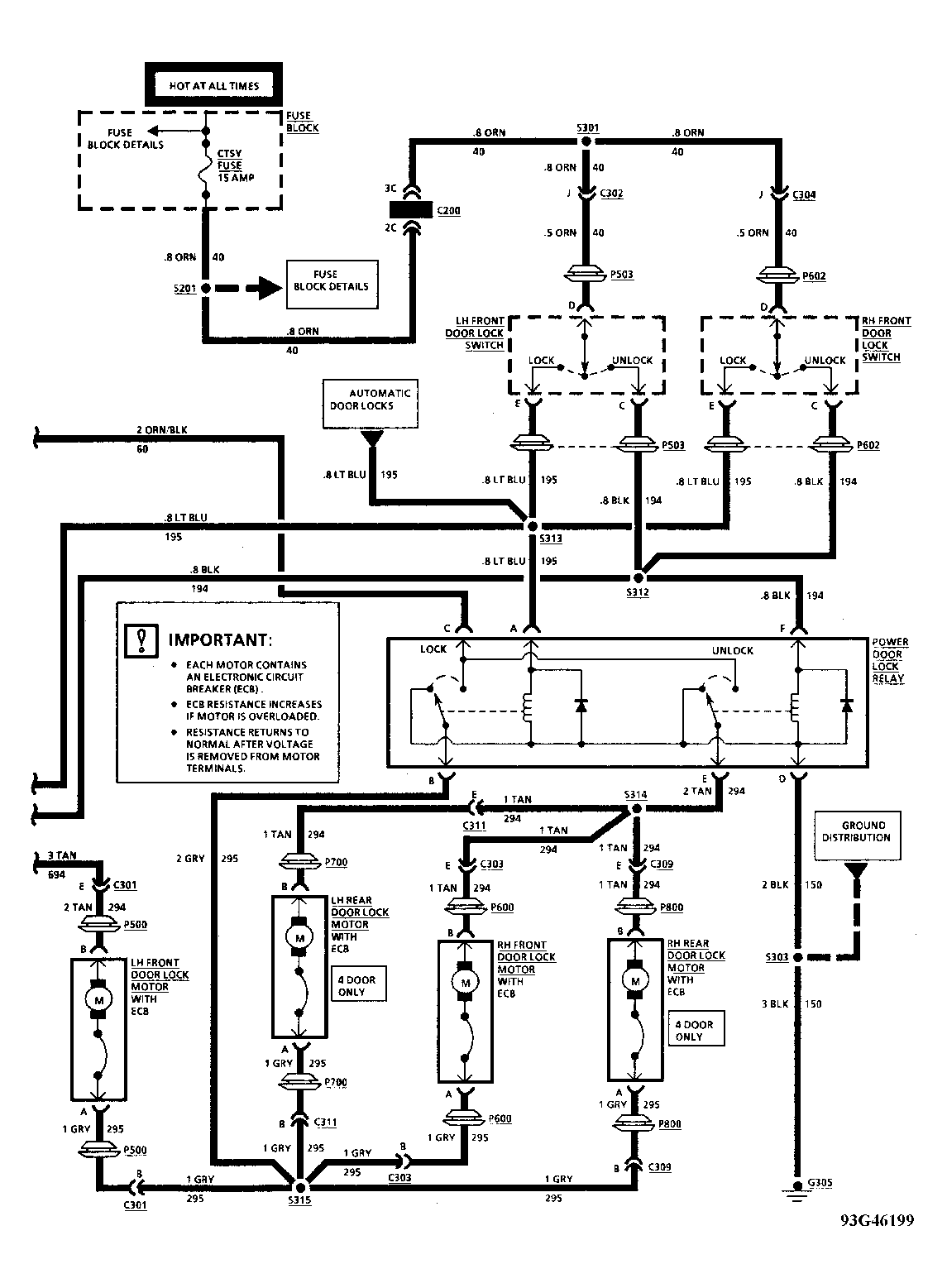

Fig 2: Wiring Diagram (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
