Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Cruise Control Module | Behind dash, above accelerator pedal. | |
| Daytime Running Lights (DRL) Module | Behind left side of dash, below speaker. | |
| Ignition Module | ||

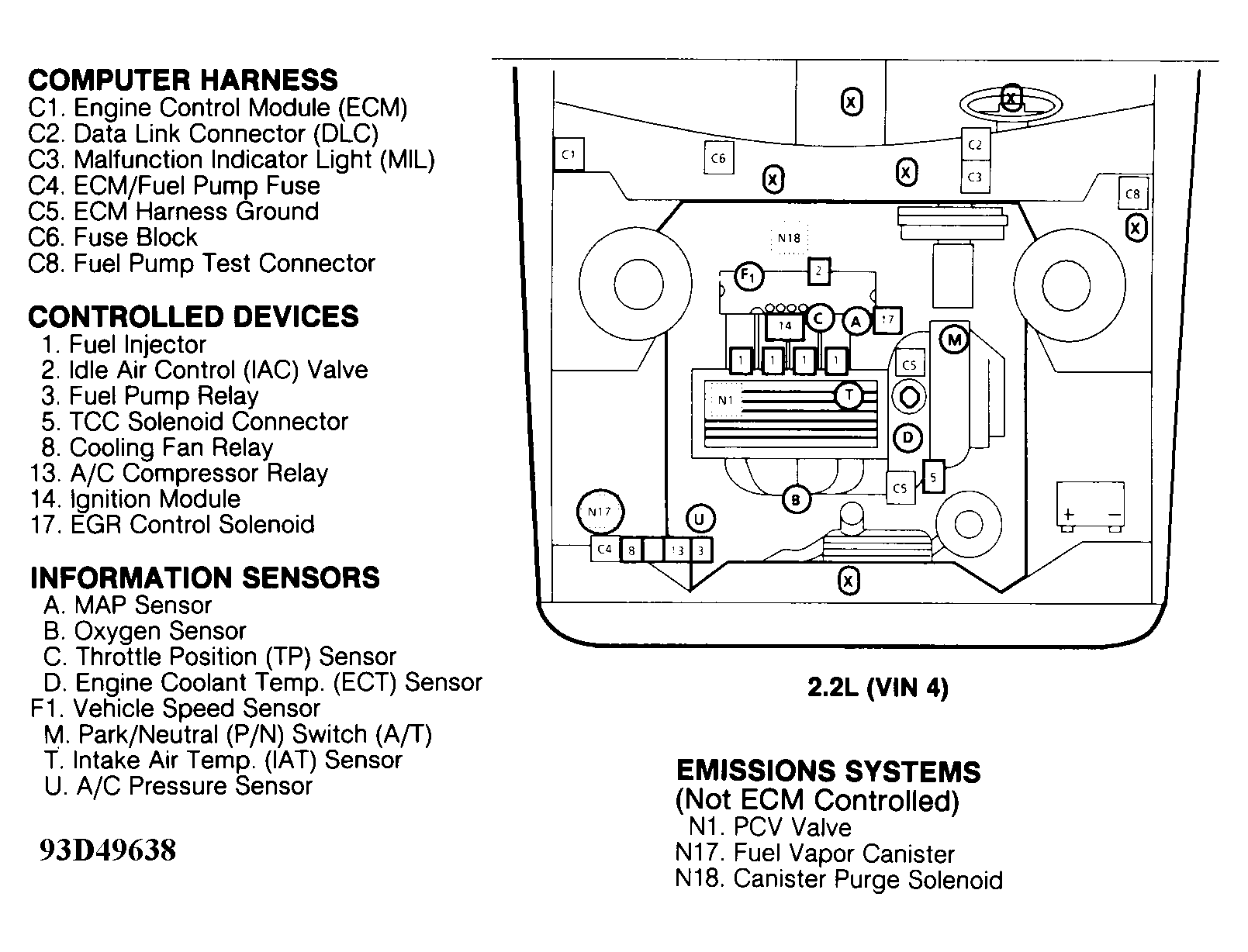

| 2.2L | On right side of cylinder block, under intake manifold. See Figure . | |

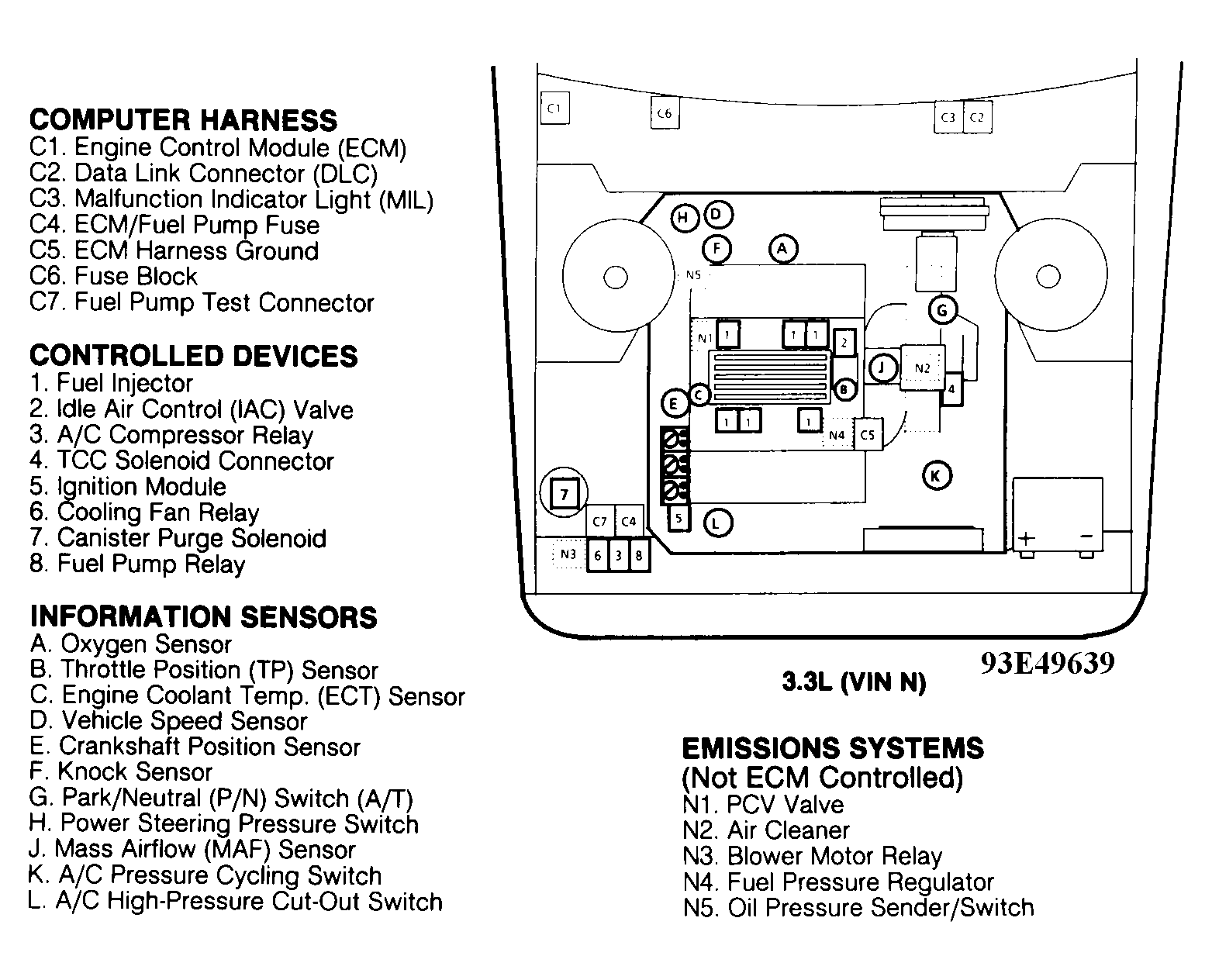

| 3.3L | At timing chain end of left cylinder head. See Figure . | |
| Engine Control Module (ECM) | ||
| 2.2L (VIN 4) | Behind right side of dash, behind glove box. See Figure . | |
| 3.3L (VIN N) | Behind right side of dash, behind glove box. See Figure . | |
| Multi-Function Alarm Module | In convenience center. | |
| Remote Dimmer Module | Behind dash, near left kick panel. | |
| Remote Keyless Entry Module | Above left rear wheelwell. | |
| Steering Wheel Controls | ||
| Switch & Electronics Module | Attached to underside of steering column. | |
| Translator Module | Attached to underside of steering column. | |
